Summary of Contents for Blizzard Lighting Puck V12

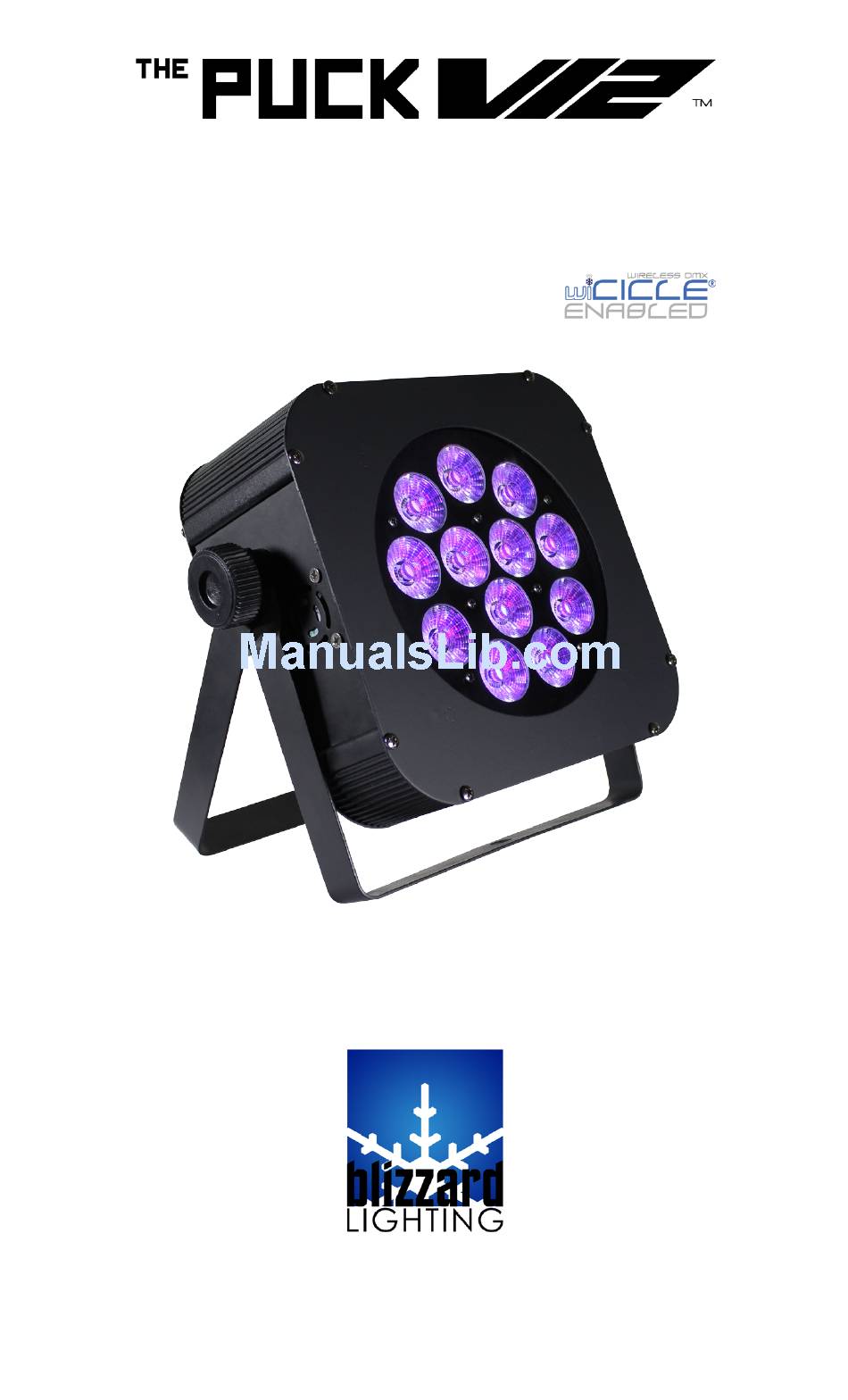

  • Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013...
  • Page 2: Table Of Contents

    Static Color Display Automatic Programs Run Mode Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your The Puck™ V12 As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 3: Getting Started

    Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time.
  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzardlighting.com. Page 4 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 5: Main Features

    2. MEET ThE PUCk™ V12 FLAT LED PAR MAIN FEATURES: • User selectable DMX personality modes • Fixture ID address assignment and operation • Built-in automated programs via master/slave • User defined programs/scenes and upload feature • Fixture temperature display and protection settings • Preset or user adjustable white balance settings • Easy to use LED digital control panel • 3-pin male input and 3-pin female output • Dual mounting yoke allows flexibility in positioning OPTICAL: • Beam Angle: 25°, Field Angle: 29° • Light Source: 12* 15-watt, 5-in-1 RGBWA LEDs • Flicker-free constant-current LED driver CONTROL: • USITT DMX-512 (3/4/5/6/7/ 12-Channels) • 3-pin Input/Output • LED 4-button control panel Page 5 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...

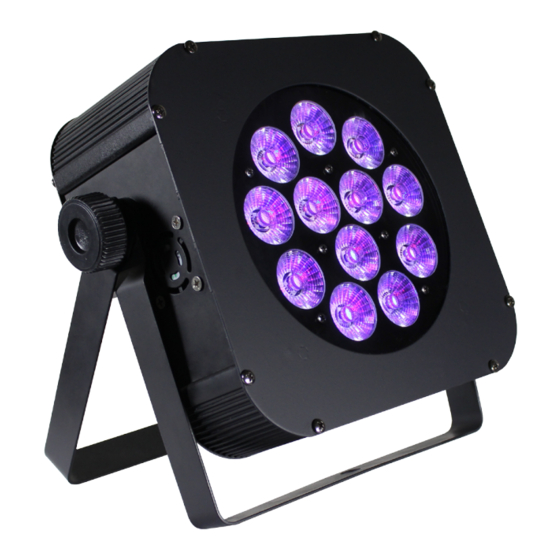

  • Page 6: The Puck™ V12 Pin-Up Picture

    Figure 1: ThE PUCk™ V12 Pin-Up Picture Ridiculously thin! 5-in-1 RGBWA- Color LED’s Dual Mounting Yokes Figure 2: The Rear Connections DMX In DMX Out LED Control Panel Microphone AC Power In/Out Page 6 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 7: Setup

    Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your The Puck™ V12 fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of The Puck™ V12 Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode.
  • Page 8: Cable Connectors

    We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (Master/Slave Mode)

    Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixtures overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 10: Operating Adjustments

    Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 11: Control Panel Menu Structure

    AUTO AT.01-AT.10 Factory program playback PR.01-PR.10 User program playback SOUd NOd1 Sound Active Mode 1 (Color Jump) NOd2 Sound Active Mode 2 (Color Flash) Sets the fixture to master/DMX mode SLAV Sets the fixture as slave Page 11 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 12: Dmx Mode

    R 100% / G 100% / B 100% / W 100% Color temperature (also adjustable through the [CAL1] menu): 201~205: 3200K 206~210: 3400K 211~215: 4200K 216~220: 4900K 201<-->255 221~225: 5600K 226~230: 5900K 231~235: 6500K 236~240: 7200K 241~245: 8000K 246~250: 8500K 251~255: 10000K Page 12 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 13 000 <--> 255 Green Intensity (0% <--> 100%) 000 <--> 255 Blue Intensity (0% <--> 100%) 000 <--> 255 Amber Intensity (0% <--> 100%) 000 <--> 255 White Intensity (0% <--> 100%) Page 13 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 14: Id Address Selection

    Allows the user to set a temperature protection cutoff (default is 85 degrees Celsius), and displays the current fixture temperature. • CURR - Displays current temperature. • • TOP - Sets the max temperature before shutoff (0-150, 85=default). Page 14 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 15: Edit Programs & Scenes

    SLAVE mode, then on the master unit, enter the lock password (UP/DOWN/UP/DOWN/ENTER), then press enter to confirm. The fixtures will display yellow while uploading is in progress, and will turn green once uploading is complete. • REST Factory reset. Use this to reset the Puck Pro Zoom fixture back to its original factory installed settings. • Id Enables/disables ID address operation. Page 15 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 16: Color Temperature-Based White Balance

    R/G/B/W value you want to edit. Hit <ENTER>. Use the <UP> and <DOWN> buttons to change the desired value. Then push the <MENU> button to confirm your choice and return to the previous menu option. Each color has the adjustable values of 000 <--> 255 (0% <--> 100%). Page 16 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 17: Static Color Display

    - Built-In Programs • PR.01-PR.10 - User-Defined Programs Run Mode This is where you set the fixture to either DMX/Master or Slave Mode • DMX - Set the fixture as the master • SLAV - Set the fixture as a slave Page 17 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 18: Troubleshooting

    Check all cables for defects. Reset fixture(s). Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 18 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 19: Appendix

    In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 19 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 20: Keeping Your The Puck™ V12 As Good As New

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 20 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 21: Tech Specs

    Other Information No word in the English language rhymes with, orange, silver or purple. 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 21 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 22 This page intentionally left blank. Page 22 The Puck™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
  • Page 23 This page intentionally left blank.
  • Page 24 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
