Blizzard Lighting Flurry EXA User Manual

Blizzard Lighting Flurry EXA User Manual

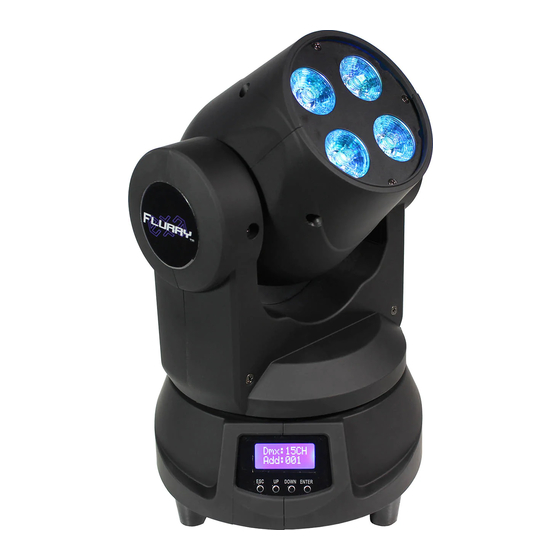

Moving head fixture

Advertisement

Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flurry EXA and is the answer not in the manual?

Questions and answers

Summary of Contents for Blizzard Lighting Flurry EXA

  • Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2015...
  • Page 2: Table Of Contents

    DMX Channel Values In-Depth 15-16 Photometric Data 5. Appendix A Quick DMX Lesson Troubleshooting Keeping Your Flurry EXA™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 3: Flurry Exa™ Moving Head Fixture

    Now that you’re the proud owner of a Flurry EXA™ (or hopefully, Flurry EXA’s™!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton and all packing materials. If a fixture must...
  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please visit our support website at: www.blizzardlighting.com/tickets. Page 4 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 5: Meet The Flurry Exa™ Moving Head

    Blue (0% <--> 100%) Amber (0% <--> 100%) White (0% <--> 100%) UV (0% <--> 100%) Strobe (Slow <--> Fast) Auto + Sound Active Mode Motor Reset Page 5 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 6: The Flurry Exa™ Pin-Up Picture

    4x15W 6-in-1 Head/Arms RGBAW+UV LEDs LCD Readout 4-Button Control Panel Figure 2: The Rear Connections Power Switch Fuse Holder DMX Out DMX In Power Input Page 6 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 7: Setup

    Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 8: Cable Connectors

    We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (Master/Slave Mode)

    • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 10: Using This Fixture With The Wicicle® Wireless Dmx System

    Antenna Housing & 1/2-wave Antenna Antenna ferrule & articulation joint Stainless Steel Housing Recessed Selector Button Status LED 3-Pin XLR Connector (Male on transmitter, Female on receiver model) Page 10 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 11 NOTE: The color of the LED DURING operation does not indicate channel group, instead it indicates whether the unit is transmitting or receiving. That’s It! Page 11 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 12: Operating Adjustments

    DOWN> buttons to scroll through any submenu options. You can the press <ENTER> to save any changes made, or press <ESC> to exit without saving. Page 12 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 13: Navigating The Control Panel

    Enter password 988 to disable menu pass- UnLock word protection upon system restart Re- Def- <ENTER> Reset system default settings Reset All <ENTER> Motor reset Page 13 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 14: Set The Dmx Starting Address

    2.) Press the <UP/DOWN> buttons to highlight CH1-CH15, and then press the <ENTER> button. 3.) Every option for CH1-CH15 uses the exact same values of 000-255 as listed Page 14 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 15: Menu Password Protection

    000 <--> 255 Blue Dimmer (0% <--> 100%) 000 <--> 255 Amber Dimmer (0% <--> 100%) 000 <--> 255 White Dimmer (0% <--> 100%) 000 <--> 255 UV Dimmer (0% <--> 100%) Page 15 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 16: Photometric Data

    Fixture resets in 3 seconds Photometric Data 25° Beam Angle LUX (All Colors) 3,488 @ 1m 898 @ 2m 402 @ 3m 232 @ 4m 138 @ 5m Page 16 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 17: Appendix

    Make sure all connectors are seated properly and securely. Responding / Use Only DMX Cables. Responding Er- Install a Terminator. ratically Check all cables for defects. Reset fixture(s). Page 17 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 18: Keeping Your Flurry Exa™ As Good As New

    Keeping Your Flurry EXA™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.
  • Page 19: Tech Specs

    Success is a lousy teacher. It seduces smart people into thinking they can’t lose. 2-year limited warranty, does not cover mal- Warranty function caused by damage to LEDs. Page 19 Flurry EXA™ Moving Head Wash - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
