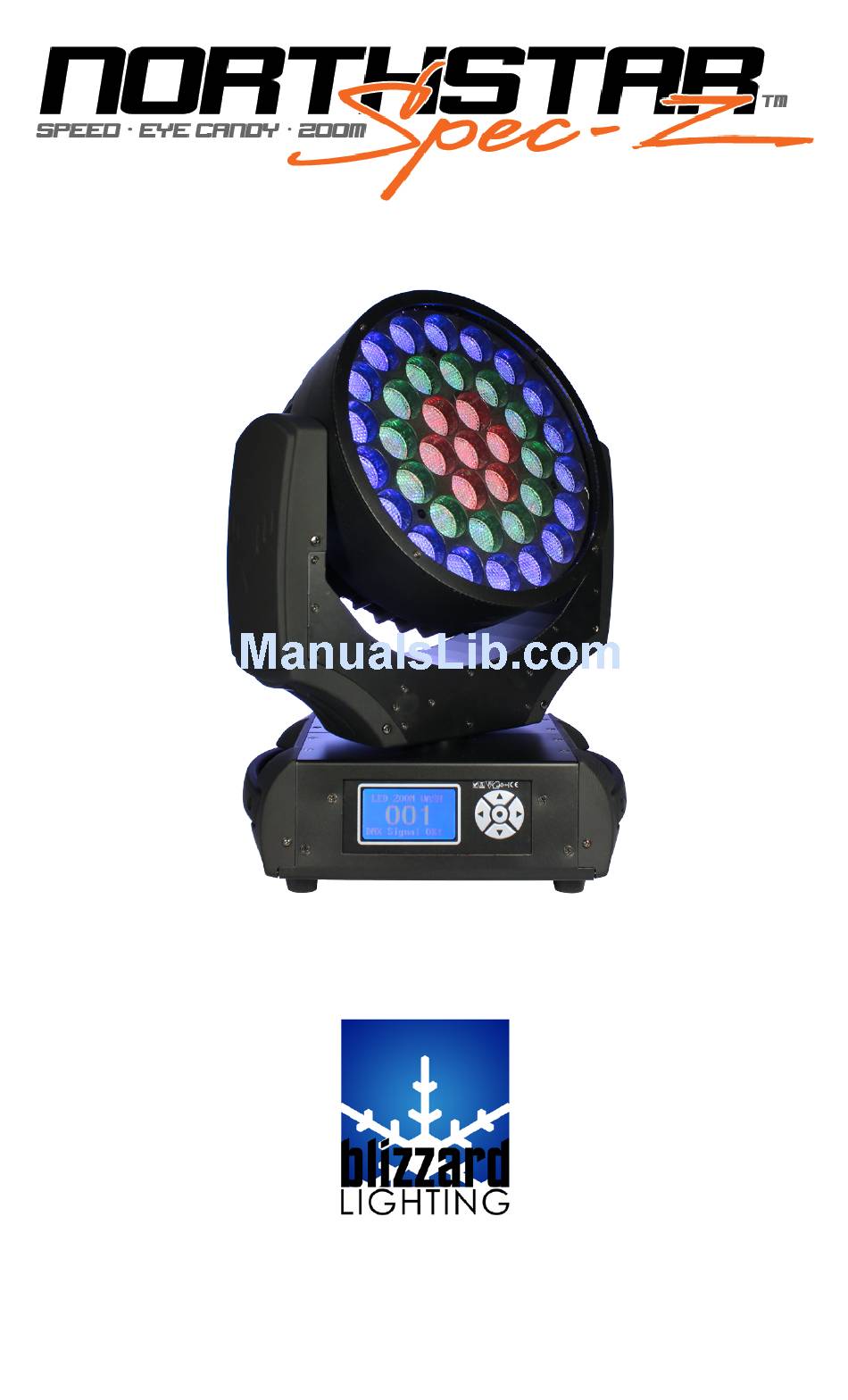

Page 1: Northstar™ Spec-Z Led Moving Head Wash
Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013... -
Page 2: Table Of Contents
DMX Channel Values In-Depth LED Groups Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your NorthStar™ SPEC-Z As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 5: Meet The Northstar™ Spec-Z
Built-in Programs / Gobo Effects Dimmer Speed / Fade Time Zoom Red Intensity (0% <--> 100%) Green Intensity (0% <--> 100%) Blue Intensity (0% <--> 100%) White Intensity (0% <--> 100%) Page 5 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... - Page 6 3rd LED Group - Green Intensity (0% <--> 100%) 3rd LED Group - Blue Intensity (0% <--> 100%) 3rd LED Group - White Intensity (0% <--> 100%) Page 6 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC...
-
Page 7: The Northstar™ Spec-Z Pin-Up Picture
Figure 1: The NorthStar™ SPEC-Z Pin-Up Picture 4-in-1 LEDs Head/Arms Carry Handle LCD Readout Control Buttons Figure 2: The Rear Connections DMX In DMX Out Power In Power Out Page 7 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 8: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 8 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 9: Cable Connectors
We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 9 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 10: Fixture Linking (Master/Slave Mode)
Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixutres overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 10 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 11: Operating Adjustments
To return to the previous option or menu without changing the value, press the <BACk> button. Page 11 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 12: Control Panel Menu Structure
Information Fixture Time PWR Reset Total Time Lamp Total Lamp On Time Time Lamp Reset Total Time Current Temp Max Temp Temperature Reset Temp Load Input: 0000 Page 12 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 13: Dmx Channel Values In-Depth
3rd LED Group - Green Intensity (0% <--> 100%) 000 <--> 255 3rd LED Group - Blue Intensity (0% <--> 100%) 000 <--> 255 3rd LED Group - White Intensity (0% <--> 100%) Page 13 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 14: Led Groups
White Intensity (0% <--> 100%) LED Groups The three separate LED groups that are controllable in 30-channel DMX mode are defined as follows: 1.) Center LED Group 2.) Middle LED Group 3.) Outer LED Group Page 14 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 15: Troubleshooting
Verify remote is correct type (CA-9 or other as applicable.) Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 15 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 16: Appendix
In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 16 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 17: Keeping Your Northstar™ Spec-Z As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 17 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... -
Page 18: Tech Specs
2-year limited warranty, does not cover malfunction Warranty caused by damage to LED’s. DISCLAIMER: The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG. Page 18 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC... - Page 19 This page intentionally left blank. Page 19 NorthStar™ SPEC Z Manual Rev. A (c) 2013 Blizzard Lighting, LLC...
- Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
