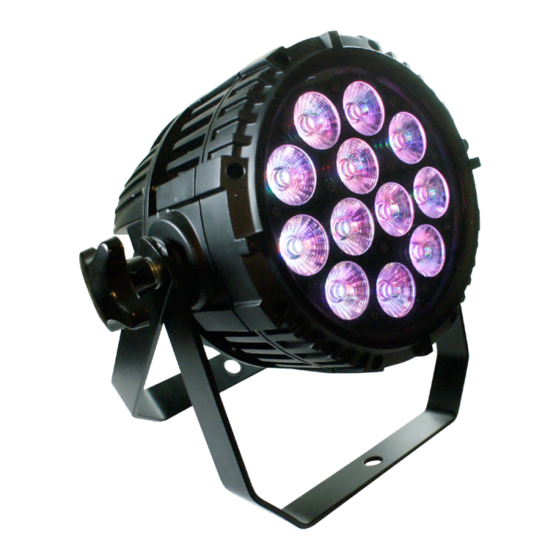

  • Page 1: Toughpar™ V12 Led

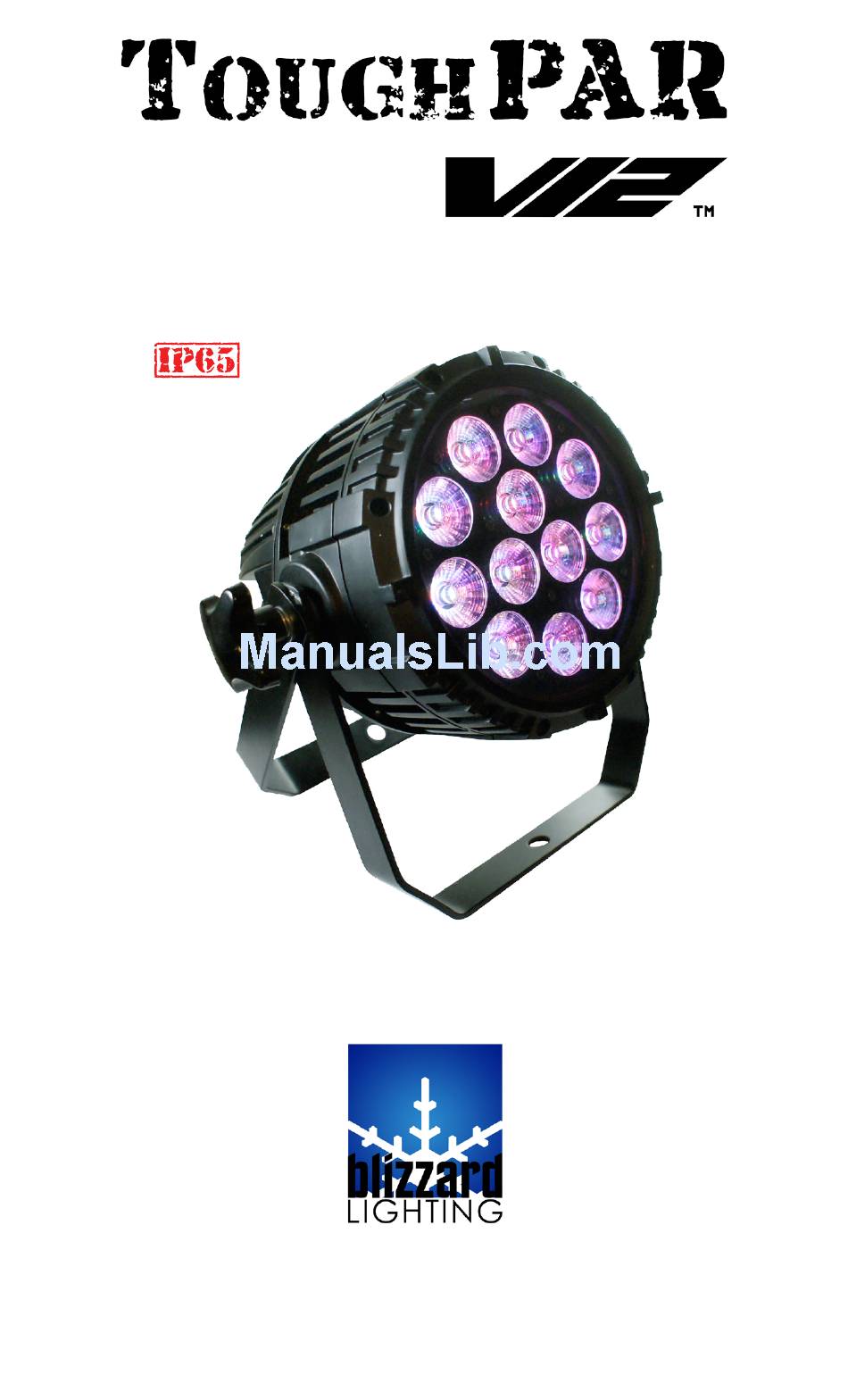

    Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013...

  • Page 2: Table Of Contents

    Manual Color Adjustment DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your ToughPar™ V12 As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 3: Getting Started

    Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardlighting.com.

  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 ToughPar V12 Manual Rev.

  • Page 5: Meet The Toughpar™ V12 Led

    DMX Quick Reference - 4 / 5 Channel Modes Channel 4-Channel 5-Channel RGB Color Mixing Red Intensity Amber Intensity Green Intensity White Intensity Blue Intensity Dimmer Amber Intensity White Intensity Page 5 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 6: The Toughpar™ V12 Pin-Up Picture

    Adjustment/ Locking Knobs Tempered Glass Lens Cover IP65-Rated Cast Aluminum Enclosure Figure 2: The Rear Connections AC Power AC Power DMX In DMX Out LED Display Menu Buttons Page 6 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 7: Setup

    The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your ToughPar™ V12 fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of ToughPar™ V12 Fixtures...

  • Page 8: Cable Connectors

    Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 9: Fixture Linking (Master/Slave Mode)

    • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 10: Operating Adjustments

    Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previ- ous option or menu without changing the value, press the <MENU> button. Page 10 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 11: Control Panel Menu Structure

    U.000 - U.255 White dimmer (0% <--> 100%) SouA So.uA Sound active mode on - oFF Display menu on/off nodE nod0-nod4 Dimming mode (0-4) UErn UE2.0 Software version Page 11 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 12: Dmx Mode

    (White Level), then press the <ENTER> button to confirm your choice. x000- 2.) Using the <UP/DOWN> buttons, select the maximum level for each color between x255 (000=off), then hit <ENTER> to confirm. Page 12 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 13: Dmx Channel Values In-Depth

    Fade In / Fade Out, Auto Run 192 <--> 223 Color Jump (Ch. 9 Controls Speed) 224 <--> 255 No Function Fade Speed 0 <--> 255 Fade Speed (Slow <--> Fast) Page 13 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 14: Troubleshooting

    Relamp, lamp may have reached end of life. Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” mode? On Its Own If your problem persists or isn’t listed contact support@blizzardlighting.com. Page 14 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 15: Appendix

    It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 15 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 16: Keeping Your Toughpar™ V12 As Good As New

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 16 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...

  • Page 17: Tech Specs

    If you drop your keys into a river of molten lava, just let’em go. 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 17 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...
  • Page 18 This page intentionally left blank. Page 18 ToughPar V12 Manual Rev. B © 2013 Blizzard Lighting, LLC...
  • Page 19 This page intentionally left blank.
  • Page 20 --the team @ blizzard lighting...
