Page 1: Hotstik™ 5 Cob Mini
HOTSTIK mini Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2015... -
Page 2: Table Of Contents
5. Appendix A Quick DMX Lesson Dimensional Drawings Keeping Your HotStik™ 5 COB Mini As Good As New Returns (Gasp!) Shipping Issues Troubleshooting Tech Specs Page 2 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
In the unlikely event your unit may require service, please open a support ticket at www. blizzardlighting.com/tickets. Page 4 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 5: Features
DMX Quick Reference (4/5/6/8 and 11-Channel Modes) 4CH. (2) 11CH What it does... Dimmer Green Blue Amber White Strobe Built-In Programs Speed CH10 Virtual Color Wheel CH11 Dimming Modes Page 5 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 6: The Hotstik™ 5 Cob Mini Pin-Up Picture

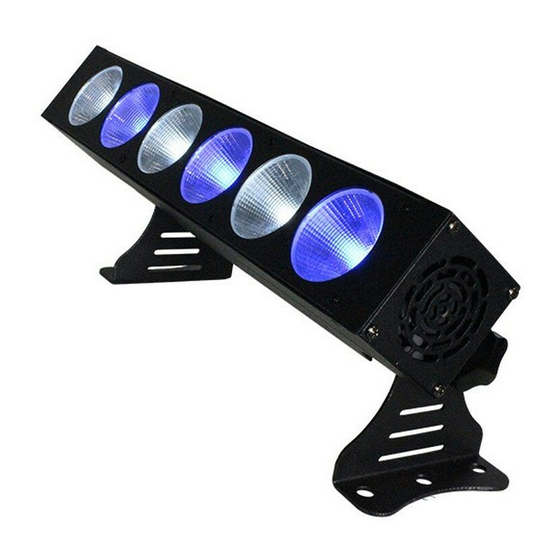

6x 25-watt RGBAW COB 5-in-1 LEDs Mounting Brackets with Adjustment / Locking Knobs Figure 2: The Rear Connections DMX In LED Control Panel Safety Cable DMX Out Rigging Point Power In Power Out Page 6 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 7: Setup
Should your HotStik™ 5 COB Mini fuse require replace- ment, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of HotStik™ 5 COB Mini Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas- ter/slave operating mode. -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 10: Using This Fixture With The Wicicle® Wireless Dmx System
® UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPON- SIBLE FOR ANY DAMAGE FROM SUCH OPERATION. • Fixtures bearing the above logo MUST only use cable and connectors which separate chassis/case ground from cable shielding. Cabling with the shield connected to the con- nector’s case/chassis may cause malfunction and damage to the wiCICLE... -
Page 11: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 11 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 12: Control Panel Menu Structure
Software version information Current automated overheat protection level (100%/80%/50%) LOAD ST L Restore factory settings PR L Restore factory program settings SEND YES/NO Sync settings between fixtures via DMX Page 12 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 13: Dmx Mode
DISY (display), or FAN (fan), and press the <ENTER> button. 2.) In DISY, you can set the LED menu display to be continually on, or shut off after 2 min of inactivity. In FAN, you can set the fan speed to run at high, medium, or low. Page 13 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 14: Custom Programs
<UP/DOWN> buttons navigate to ATSP, and press the <ENTER> button. 2.) Make a selection from 0-255, and press <ENTER> to choose a speed (slow <--> fast). Page 14 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 15: Color Calibration Settings
4.) These 10 custom colors can be accessed and edited to your liking at any time, and will be saved even after powering off the fixture. 5.) Your custom static colors are directly accessible from the Effect Channel in DMX mode. Page 15 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 16: Fixture Reset Functions
<UP/DOWN> buttons to highlight SOFT or POW, and press <ENTER>. 2.) The SOFT information simply displays the current software version installed on the fixture, and POW displays the fixtures current power level setting. Under normal conditions, it will be at 100%... but this fixture has built-in overheat protection that may automatically reduce the output level to 80%, or 50% in high temperature situations. Page 16 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 17: Dmx Value In-Depth Reference Guide
181 <--> 185 4000K White 186 <--> 190 5500K White 191 <--> 195 6500K White 196 <--> 200 Red+Green+Blue+White 207 <--> 255 No Function Page 17 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... - Page 18 061 <--> 070 Square law curve (smooth) 071 <--> 080 Inverse square law curve (smooth) 081 <--> 090 S-curve (smooth) 091 <--> 255 Default (as set in the LED menu) Page 18 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC...
-
Page 19: Dmx In-Depth Reference
Dimmer (0%<--> 100%) Green Intensity (0%<--> 100%) Amber Intensity (0%<--> 100%) Blue Intensity (0%<--> 100%) White Intensity (0%<--> 100%) White Intensity (0%<--> 100%) Virtual Color Wheel Page 19 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 20: Appendix
1000 times per second if only 24 channels are being transmitted. If all 512 channels are being transmit- ted, the refresh rate is around 44 times per second. Dimensional Drawings 20.2” (512 mm) 18.3” (462.8 mm) Page 20 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 21: Keeping Your Hotstik™ 5 Cob Mini As Good As New
No Response to Audio Verify that the fixture is in “Sound Active” mode. If your problem persists or isn’t listed, please open a support ticket online at: www.blizzardlighting.com/tickets. Page 21 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... -
Page 22: Tech Specs
LEDs. Photometric Data: 45° Beam Angle LUX (Full RGBAW) 22,447 @ 1m 8,062 @ 2m 4,221 @ 3m 2,581 @ 4m 1,694 @ 5m Page 22 HotStik™ 5 COB Mini User Manual Rev. A Copyright © 2015 Blizzard Lighting, LLC... - Page 23 This page intentionally left blank.
- Page 24 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
