Function
This device must be installed only by a qualified electrician according to the installation standards in force in the country.

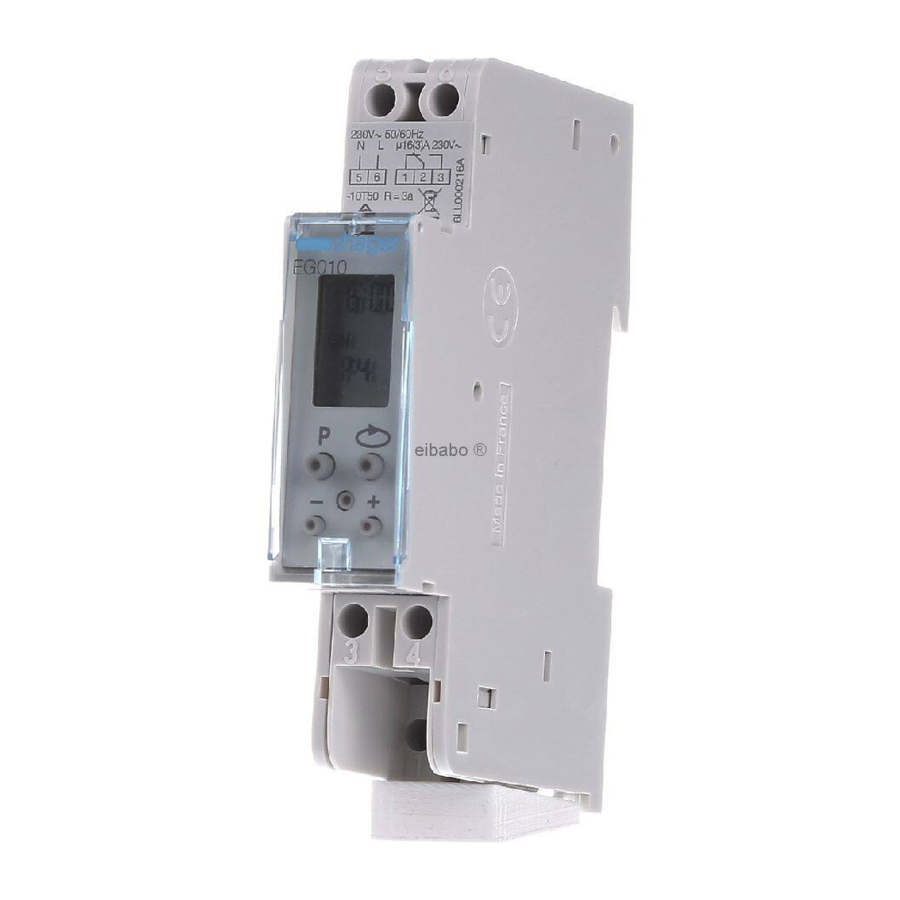

The EG010 is a programmable time switch for the automatic control of electrical loads. The clock contains 5 pre-programmed (user adjustable) time periods, based on one, two or three switchings per day.
The front cover is sealable preventing unauthorised access after completion of programming.
Presentation
Display:
- time
- output contact (ON or OFF)
- program selected
Buttons:
- "P" to select the program to apply
![]()
to scroll program steps- "reset"
- "+" and "-": change settings
to scroll program stepsTime setting
Press key "+" or "-".
A continuous pressure on this key will scroll up or down minutes and then hours.
Programming
- select one of the programs described below.
- modify switching time, if necessary.
- the program selected will be applied on a daily basis.
1 channel time switch - daily cycle
For example:
Control an electrical equipment with program P3.
- press key "P"
until «P3» is displayed.
![]()
- if the pre-programmed switching time meets your requirements, then programming is complete.
To modify a program
- select with key "P" the program to modify.
- scroll program steps with the key
![]()
. - modify the switching time with keys "+" or "-".
- press key
![]()
, to display the next program step and modify it, if necessary. - press "P" to confirm all modifications are complete and switch back to automatic mode.
- a small mark (*) appears next to the program number, to indicate that the program has been modified.
Example:
You have selected the program P3, but you want to switch on the electrical equipment at 16h45 instead of 17h00.
- press key "P" to select the program P3.
![]()
- press
![]()
until display «17:00».
![]()
- press "-" until display «16:45».
![]()
- press "P" to confirm and switch back to automatic mode.
To override the circuit ON or OFF
Press "P" and select P0 to override the circuit OFF. Press "P" and select P1 to override the circuit ON. To switch back to automatic mode, press key "P" and select the program applied previously (P2, P3 or P4).
To check your settings
Press repeatedly key
, to display program steps: switching time and circuit status (ON or OFF).
To switch back to automatic mode press key "P".
To reset the time switch
Press the "reset" button. This will cancel all modifications made on pre-programmed settings.
Technical specifications
Electrical characteristics
| supply voltage | 230V +10%/-15% 50/60Hz 240V~ +/-6% 50/60Hz |
| power consumption | 1 VA |
| output | 1 changeover contact µ 16A - 230V AC1 µ 3A - 230V cos φ = 0,6 |
| protection degree | IP20 |
| insulation class | II |
| maximum operating height | 2000m |
| rated impulse voltage | 4 kV |
| upstream circuit breaker | 16 A |
| voltage and current declared for the needs of EMC emissions tests | 230Vv / 0,5 A |
| size | 1 (17,5 mm) |
Functional characteristics
| accuracy | ±1min / day at 20°C |
| operating reserve | lithium battery total of three years |
| action type | 1B |
| pollution category | 2 |
| software structure | class A |
Environment
| operating temperature | -10 to +50°C |
| storage temperature | -10 to +60°C |
Connection tunnel terminals
| flexible | 0.5 to 2.5 mm |
| rigid | 0.5 to 4 mm |
Independent panel-mounted (DIN rail) control device
Electrical connections
