hager EG293B Instructions For Use

_________________________________________________________________________
http://waterheatertimer.org/Hagar-timers-and-manuals.html
§

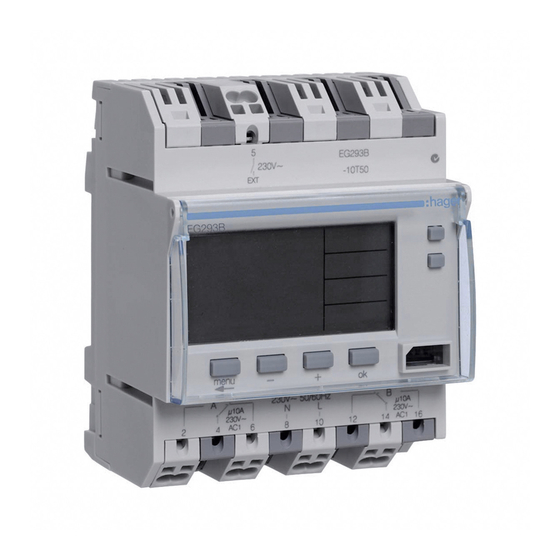

2 channel programmer
annual and weekly cycle
User instructions
EG293B
Presentation
⦁ Product delivered with current time and date set.
⦁ Temporary overrides On or Off (
⦁ Automatic change of summer/winter time.
⦁ Overrides (temporary, permanent or time delayed)
⦁ Programming key
remote activation possible.
- For permanent overrides
⦁ Simulation of presence
- For program copy or save
⦁ Keyboard lock function
⦁ 300 programme steps ; ON, OFF , pulses
or .
⦁ Counter of operating time on every output.
⦁ Permanent overrides On or Off (
⦁ Programmable with power off.
permanent
light on). ⦁ Display with backlight.
Product Presentation
Selection of days of the week
1 = Monday, 2 = Tuesday
... 7 = Sunday
Keyboard locked by PIN code
menu +
Enter in PROGRAMME mode &
return to previous step
Navigation &
value setting
Connection diagram
L
N
*
1 3 5 7 9 11 13 15
EG293B
A B
2 4 6 8 10 12 14 16
Technical specifications Functional characteristics
⦁ Programming capacity :
Electrical characteristics ⦁ Minimum time between 2 steps :
⦁ Supply voltage :
230 V + 10/-15%
⦁ Running accuracy :
⦁ Frequency :
50/60 Hz ⦁ Operating reserve : lithium battery, total of 5
⦁ Power consumption :
< 2 VA
years autonomy (unlimited programme backup)
⦁ Output :
2 changeover contacts
⦁ The product is set into standby state (display
⦁ Maximum load :
AC1 μ 10A 250 V ~
switched-off) after 1 minute with power off.
Incandescent lighting : 1500 W
It switches back into automatic mode as soon
Halogen lighting : 230 V 1500 W
as power is back on or when pressing any key.
Compensated fluorescent tubes // :
⦁ Protection degree :
(max. 45 μF) 400 W
Environment
Non compensated fluorescent tubes,
⦁ Operating temperature :
compensated in series : 1000 W
⦁ Storage temperature :
Compact fluorescent lamps : 400 W
⦁ Minimum load
Connection by quick-connect terminals
AC1 100 mA 250 V ~ ⦁ Flexible :
⦁ Galvanic insulation between power supply and
⦁ Rigid :
output < 4 kV
1
First commissioning
When using for the first time, the following
settings must be done :
- select the language
- select the year, month, day
- select the hour and the minutes
- select the automatic change summer/winter.
Press the buttons + / – to set the display.
Press OK to validate.
When the settings are finished, the clock goes to
automatic mode.
Reinitializing
Pressing simultaneously the menu,
allows you to réinitialize the product.
The program is kept in memory.
Menu
flashing).
Press the button menu to access the programming/
setting mode.
All of the programming and adjustments are
.
based on the following principle :
by PIN number.
- the 1st line and/or 2nd line of the display
indicate the requested setting,
- the buttons + /- allow navigation through the
menus and settings,
- the button ok allows validation.
Pressing the button menu allows you to access
the following settings :
Canal A command
menu
Canal B command
PROGRAM SETTINGS
ok
PROGRAM DATE-TIME
Validation
CREATE
PROGRAM S/W TIME
READ
PROGRAM LANGUAGE
MODIFY
PROGRAM FACTORY
DELETE SETTINGS
PROGRAM BACK AUTO
COPY
BACK AUTO
At any time, pressing the button menu allows you
to return to the previous choice level.
Programming
*
Input for external override
To do the yearly programming of the clock, you
have the following 4 types of programme :
- Basic weekly programme
This is a non-priority weekly programme.
- Sub-programmes 1 to 10
300 steps These are weekly sub-programmes which are
activated for a defined date-to-date period. As
1 minute
the sub-programme number increases, so does
± 0,2 sec/ 24h
the priority.
- DATE/TIME
This is a programme step composed of a time
and a date which will run in addition to the usual
programme. If there is conflict between this
programme step and another programme step
IP 20 / IK 04
(SP or weekly), this step has priority.
- Holidays
-10 °C to + 50 °C
This programme allows you to define a
-20 °C to + 70 °C
permanent ON or OFF from date-to-date.
This programme has the highest priority.
0,75 to 2,5 mm 2
0,75 to 2,5 mm 2
PROGRAM
menu
PROGRAM
SETTINGS
FUNCTIONS
PROGRAM CREATE
Creating the basic weekly programme :
menu
– + ok
, , keys
PROGRAM
SETTINGS
FUNCTIONS
PROGRAM
PROGRAM
CREATE
PROGRAM
READ
PROGRAM
MODIFY
DELETE
CHANNEL A
CHANNEL B
WEEKLY
SP1 - SP10
DAY/TIME
HOLIDAYS
ON
OFF
IMPULSE
CYCLE
YES
NO
MONDAY
MONDAY
The cycle
*
programme is only
SUNDAY
possible if one or
FUNCTIONS
several cycles have
been defined in the
FUNCTION/CYCLE
SET
menu.
HOUR
00:00
COUNTER
SET
MINUTE
00:00
CYCLE
PIN CODE ON
MODIFY
07:00
DELETE
INPUT
CONTINUE
BACK
BACK AUTO PROGRAM
AUTO
Creating a sub-programme (SP1-10) :
WEEKLY
SP1 - SP10
DAY/TIME
HOLIDAYS
SP
SP
PROGRAM
ACTIVATE
Two phases are necessary to create a sub-
programme :
Define the weekly programme.
Define the period when the programme will be active.
1. Define the weekly programme
SP
SP
PROGRAM
ACTIVATE
SP
SP
NUMBER
SP
NUMBER
01
SP
NUMBER
02
NUMBER
...
10
SP01
SP01
ON
SP01
OFF
IMPULS
YES
NO
MONDAY
MONDAY
SUNDAY
SUNDAY
SET
HOUR
00:00
SET
MINUTE
00:00
SP01
ON MODIFY
DELETE
07:00
CONTINUE
BACK
PROGRAM
AUTO
2. Activate the sub-programme.
To define the start and end of activation dates of the
sub-programme :
WEEKLY
PROGRAM
SP1 - SP10
COPY
DAY/TIME
HOLIDAYS
SP
SP
PROGRAM
ACTIVATE
SP
SP
NUMBER
SP
01 NUMBER
SP
NUMBER
02
NUMBER
...
10
*
START
MONTH
01.01
START
DAY
28.01
END
MONTH
01.02
END
DAY
14.02
FIX
VARIABLE
DATE
NOT
DATE
REPEATED
28.01 - 14.02
SP1
MODIFY
DELETE
CONTINUE
BACK
PROGRAM
AUTO
Select :
- fixed dates : if the programme must be repeated
every year at the same dates.
- variable date ( ) if the dates must be recalculated
every year according to the dates of Easter.
- NOT REPEATED : if the programme is to be activated
once only.
Validate by ok .
A sub-programme can be attributed to several different
periods.
When the start date and the end date are identical, the
sub-programme is only valid for that day. If several
programmes are activated in the same time, at the
same date, the programme with the highest number
(eg. Pg 10) is the one that will be activated.
The other sub-progammes will be cancelled.
Creating a specific programme step (day-time) :
A specific programme step is a programme step
composed of a switching time and a date.
This happens in addition to the weekly programme
type or the sub-programme. If there is conflict, this
has priority.
WEEKLY
SP1 - SP10
DATE/TIME
HOLIDAYS
DATE/TIME
DATE/TIME
ON
DATE/TIME
OFF
DATE/TIME
IMPULSE
CYCLE
SET
HOUR
00:00
SET
MINUTES
00:00
SET
MONTH
00:00
SET
DAY
00:00
FIX DATE
KEEP
07:00
NOT
DAYWEEK
REPEATED
EX 03.03
ON MODIFY
DELETE
07:00
CONTINUE
BACK
PROGRAM
AUTO
Select :
- fixed dates : if the programme must be
repeated every year at the same dates.
- KEEP DAY WEEK : if the dates must be
recalculated every year in order to occur on
the same day of the week.
- NOT REPEATED : if the programme is to be
activated once only.
Validate by ok .
Creating a holiday programme
The Holiday programme allows you to define one
or several periods during which the output
contact is on ON or OFF.
This programme has the highest priority.
WEEKLY
SP1 - SP10
DAY/TIME
HOLIDAYS
To define your Holiday programme :
HOLIDAYS
HOLIDAYS
ON
OFF
START
MONTH
01.07
START
DAY
14.07
END
MONTH
01.08
END
DAY
03.08
FIX
VARIABLE
DATE
NOT
DATE
REPEATED
14.07 - 03.08
HOLIDAYS MODIFY
DELETE
CONTINUE
BACK
PROGRAM
AUTO
Select :
- FIX DATE : if the programme must be repeated
every year at the same dates.
- VARIABLE DATE ( ) if the dates must be
recalculated every year according to the dates
of Easter.
- NOT REPEATED : if the programme is to be
activated once only.
Validate by ok .
PROGRAMME READ
To visualise a programme
To check the steps of the recorded programme
without risk of modifying or deleting.
