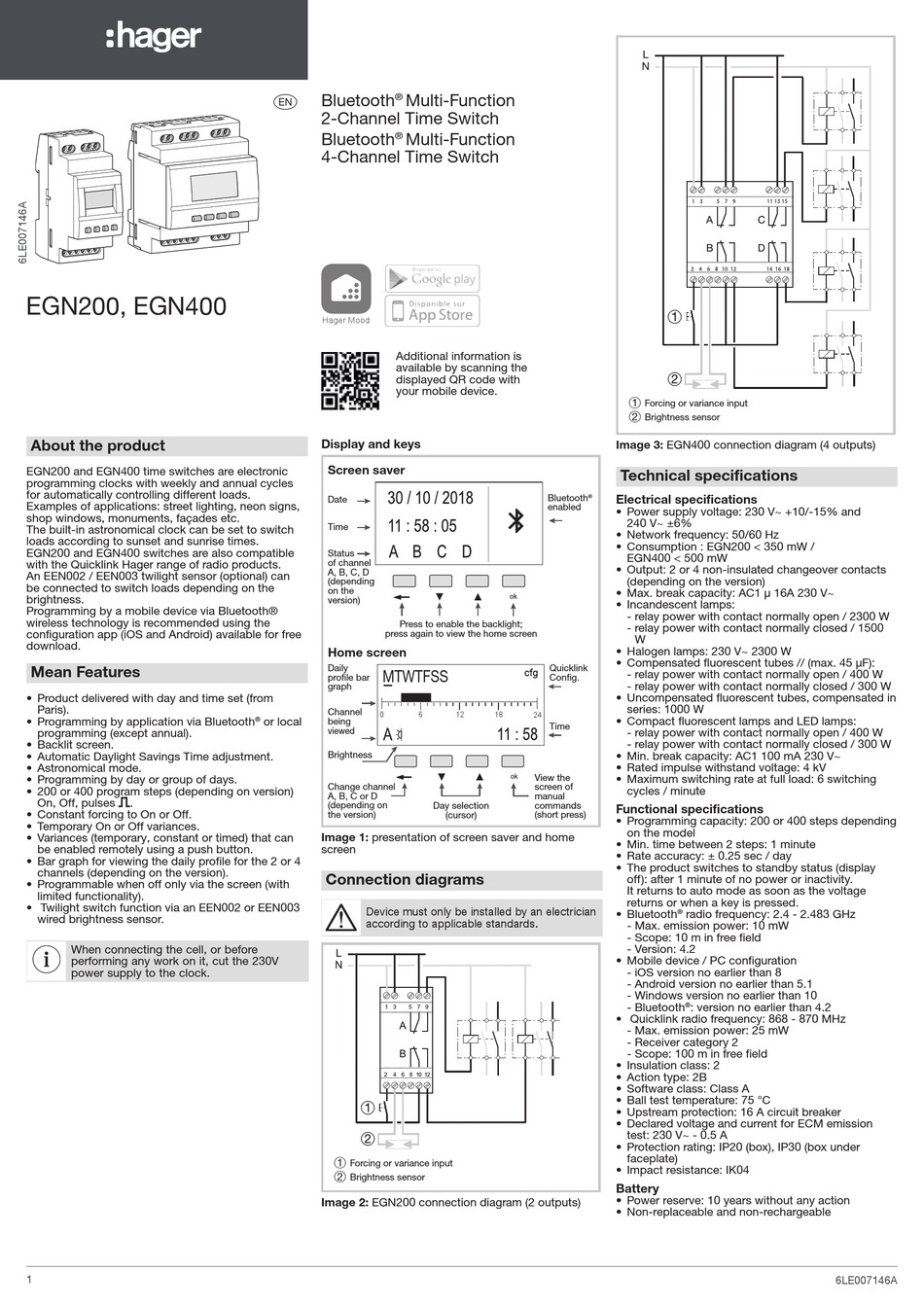

hager EGN200 Quick Start Manual

EGN200, EGN400
About the product
EGN200 and EGN400 time switches are electronic
programming clocks with weekly and annual cycles
for automatically controlling different loads.
Examples of applications: street lighting, neon signs,
shop windows, monuments, façades etc.
The built-in astronomical clock can be set to switch
loads according to sunset and sunrise times.
EGN200 and EGN400 switches are also compatible
with the Quicklink Hager range of radio products.
An EEN002 / EEN003 twilight sensor (optional) can
be connected to switch loads depending on the
brightness.
Programming by a mobile device via Bluetooth®
wireless technology is recommended using the
configuration app (iOS and Android) available for free
download.
Mean Features
• Product delivered with day and time set (from
Paris).
• Programming by application via Bluetooth
programming (except annual).
• Backlit screen.
• Automatic Daylight Savings Time adjustment.
• Astronomical mode.
• Programming by day or group of days.
• 200 or 400 program steps (depending on version)
On, Off, pulses .
• Constant forcing to On or Off.
• Temporary On or Off variances.
• Variances (temporary, constant or timed) that can
be enabled remotely using a push button.
• Bar graph for viewing the daily profile for the 2 or 4
channels (depending on the version).
• Programmable when off only via the screen (with
limited functionality).
• Twilight switch function via an EEN002 or EEN003
wired brightness sensor.
When connecting the cell, or before
performing any work on it, cut the 230V
power supply to the clock.
1
Bluetooth Multi-Function
®
z
2-Channel Time Switch
Bluetooth Multi-Function
®
4-Channel Time Switch
Hager Mood
Additional information is
available by scanning the
displayed QR code with
your mobile device.
Display and keys
Screen saver
Date
Time
Status
of channel
A, B, C, D
(depending
on the
version)
Press to enable the backlight;
press again to view the home screen
Home screen
Daily
MTWTFSS
profile bar
graph
Channel
0 6
or local
®
being
viewed
Brightness
Change channel
A, B, C or D
(depending on
the version)
Image 1: presentation of screen saver and home
screen
Connection diagrams
Device must only be installed by an electrician
according to applicable standards.
1 Forcing or variance input
2 Brightness sensor
Image 2: EGN200 connection diagram (2 outputs)
Bluetooth
®
enabled
▼ ▲
Quicklink
cfg
Config.
12 18 24
Time
View the
screen of
manual
commands
Day selection
(cursor) (short press)
1
Forcing or variance input
2 Brightness sensor
Image 3: EGN400 connection diagram (4 outputs)
Technical specifi cations
Electrical specifi cations
• Power supply voltage: 230 V~ +10/-15% and
240 V~ ±6%
• Network frequency: 50/60 Hz
• Consumption : EGN200 < 350 mW /
EGN400 < 500 mW
• Output: 2 or 4 non-insulated changeover contacts
(depending on the version)
• Max. break capacity: AC1 16A 230 V~
• Incandescent lamps:
- relay power with contact normally open / 2300 W
- relay power with contact normally closed / 1500
W
• Halogen lamps: 230 V~ 2300 W
• Compensated fluorescent tubes // (max. 45 F):
- relay power with contact normally open / 400 W
- relay power with contact normally closed / 300 W
• Uncompensated fluorescent tubes, compensated in
series: 1000 W
• Compact fluorescent lamps and LED lamps:
- relay power with contact normally open / 400 W
- relay power with contact normally closed / 300 W
• Min. break capacity: AC1 100 mA 230 V~
• Rated impulse withstand voltage: 4 kV
• Maximum switching rate at full load: 6 switching
cycles / minute
Functional specifi cations
• Programming capacity: 200 or 400 steps depending
on the model
• Min. time between 2 steps: 1 minute
• Rate accuracy: ± 0.25 sec / day
• The product switches to standby status (display
off): after 1 minute of no power or inactivity.
It returns to auto mode as soon as the voltage
returns or when a key is pressed.
• Bluetooth radio frequency: 2.4 - 2.483 GHz
®
- Max. emission power: 10 mW
- Scope: 10 m in free field
- Version: 4.2
• Mobile device / PC configuration
- iOS version no earlier than 8
- Android version no earlier than 5.1
- Windows version no earlier than 10
- Bluetooth : version no earlier than 4.2
®
• Quicklink radio frequency: 868 - 870 MHz
- Max. emission power: 25 mW
- Receiver category 2
- Scope: 100 m in free field
• Insulation class: 2
• Action type: 2B
• Software class: Class A
• Ball test temperature: 75 °C
• Upstream protection: 16 A circuit breaker
• Declared voltage and current for ECM emission
test: 230 V~ - 0.5 A
• Protection rating: IP20 (box), IP30 (box under
faceplate)
• Impact resistance: IK04
Battery
• Power reserve: 10 years without any action
• Non-replaceable and non-rechargeable
6LE007146A
