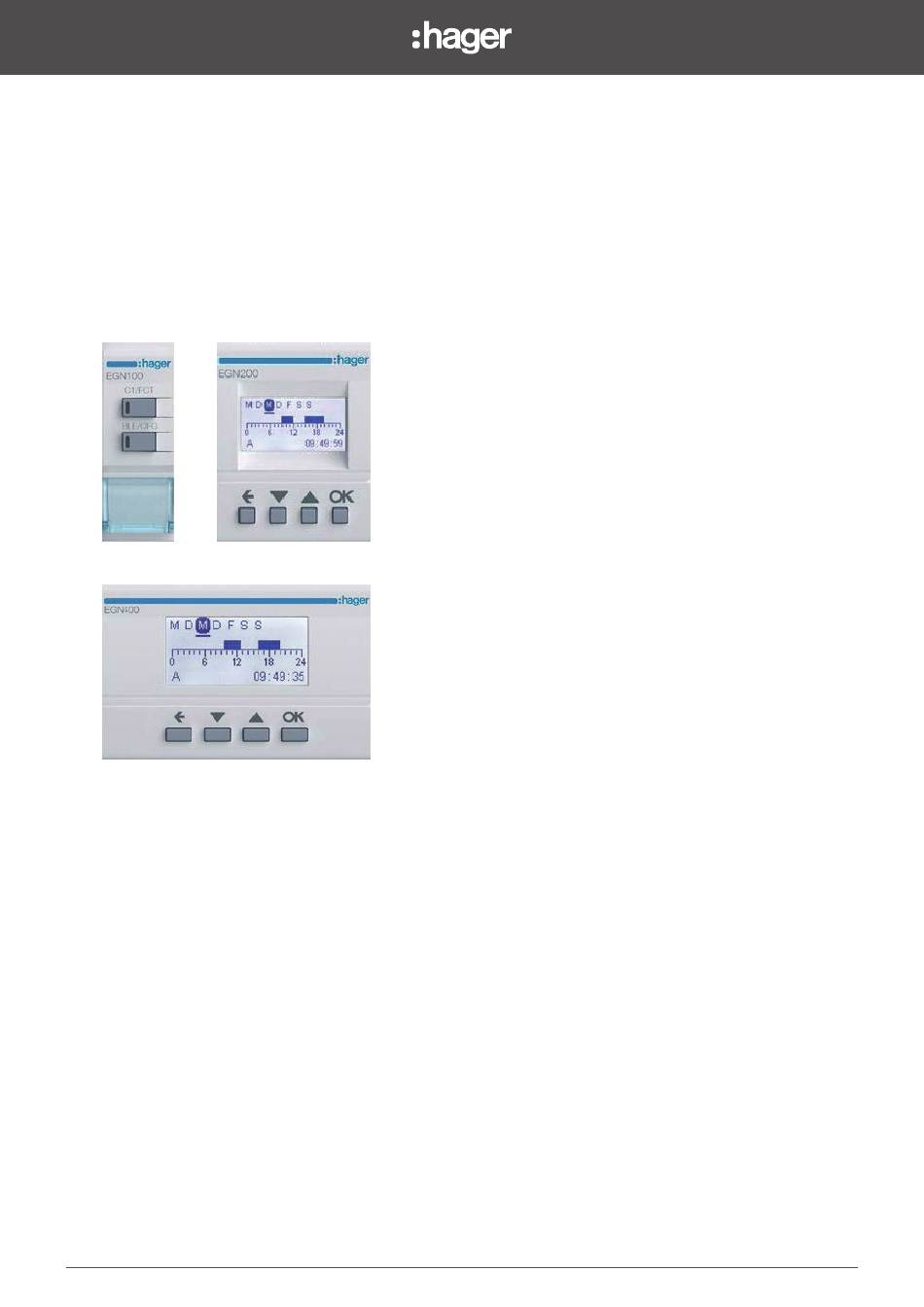

- Page 1 EGN100 / EGN200 / EGN400 quick start guide Time switches 1 channel / 2 channel / 4 channel Bluetooth multifunction ® with the Hager Mood app 6LE007392A...
-
Page 2: Table Of Contents
(EGN103 and EGN003) ............. 7 1. Introduction Our EGN100, EGN200 and EGN400 electronic time switches feature weekly and yearly cycles for automatic control of different lighting loads. Examples of applications: public lighting, illuminated signs, shop windows, monuments, facades etc. - Page 3 Log in to your myHager account (or enter in Guest Assign a name and location to the new installation, mode), or Create an account. Then confirm then hit Next. Select Time switches and hit confirm. You are now in the home screen of your installation.
-
Page 4: Connecting A Time Switch (Egn100/200/400) For The First Time
3. Connecting a time switch (EGN100/200/400) for the first time Touch the icon of the discovered device to connect to 1 Connect the time switch to the mains power supply. 2 On the home screen, touch to add a device. - Page 5 Press any button on the time switch. 28 / 03 / 2020 15 : 18 : 04 The device has been identifi ed. To return to the home screen, The device has now been added Touch the arrow key, give a double-tap the X key (or tap the to the home screen.
-
Page 6: Creating A New Program
4. Create a new program To create a new program (custom or template): On the home screen, tap the icon of the device you Tap View programs. wish to programme. to add a new program. You can now choose Select the output(s) available for programming and whether to enter the program settings one by one, or then tap the arrow (to add program steps, see section 6). -
Page 7: Loading A Program From The App To The Clock Key (Egn103 And Egn003)
5. Loading a program from the app to the clock key (EGN103 and EGN003) Connect the EGN003 Bluetooth® clock key to the Once the key has been discovered, pair it to your EGN103 time switch. mobile device using the Hager Mood app. auto menu Bluetooth ®... - Page 8 The program is now stored on the key. The program will run as confi gured for as long as the key remains in the time switch. Before removing the key from the time switch, you must manually load it onto the EGN103 time switch as described below. auto Program menu...
-
Page 9: Adding Program Steps
2 select one of the actions below, adjust its setting as required, then tap the confirm button. Actions available per device and setting: Example: Pulse On for 60 seconds • EGN003 Action • EGN100/200/400 Action Setting For a limited time 1 to 60 seconds... - Page 10 3 use the + and - buttons to set the trigger values, then tap OK to confirm if necessary, followed by the blue arrow to continue. Trigger available by device and setting: • EGN003 Trigger Setting Time Hours and minutes • EGN100/200/400 Trigger Setting Time Hours and minutes At sunset Sunset/Sunrise At sunrise...
-
Page 11: The "And" Logical Operator (Egn100/200/400)
7. The "AND" logical operator (EGN100/200/400) On the home screen, tap the device icon and then 1 Tap to open the Date and Time drop-down menu. device settings. 2 Slide the Activate special mode button to the "on" position. 3 Select the output(s) concerned. -
Page 12: Programming The Twilight Switch
8. Programming the twilight switch Example: We want to switch on the light when the brightness is below 100 lux (step 1), and switch it off when the brightness is above 100 lux (step 2), from Monday to Friday, on output B. To do this: Create a new program (see section 4). - Page 13 Program step 2: switch offlight when brightness is above 100 lux. 1 Add a step. 2 Add an action. 3 Select "Off" then confirm. 4 Add a trigger. 5 Select the Brightness trigger then 6 Select the Higher than function tap the arrow to move to the next and set its value to 100 lux.
- Page 14 Synchronizing the program with the device: 1 Check the 2 steps of the new program created on 2 Give a name to the program then confi rm your output B then tap the arrow to move to the next choice. page.
-
Page 15: Rf-Quicklink Connection
Tap the input which will control the time switch (output), then continue as required for the device concerned (EGN100 or EGN200/400) (1). (1) For more information on inputs, scan the QR Code of one of the time switches at the end of the manual for details on configuration. - Page 16 For EGN100: Repeatedly pulse the FCT key to select the function (1). Confi rm your selection by pressing the FCT key and holding for at least 2 seconds. > 2 s Confi rm the transmitter confi guration by pulsing its cfg button.
- Page 17 For EGN200 and EGN400: 1 Open the MENU, 2 select Settings then 3 press OK to confi rm. 28 / 03 / 2020 SCREEN SAVER Press a key twice HOME SCREEN DATE / TIME MANUAL COMMANDS L M M J V S D x fois MENU / 03 / 2020...
-
Page 18: Integration With Coviva (Tkp100A/Coviva App)
1 Tap Scan to begin searching for the device. section, tap the blue "+" sign. All time switches (output) enter configuration mode. 2 To pair the device, follow the configuration procedure for your time switch (EGN100 or EGN200/400) (see next page). - Page 19 For EGN100: Press the FCT button. Once the device is recognized, its ID appears on the screen. Select the output function on the time switch.
- Page 20 For EGN200 and EGN400: 1 Open the MENU, 2 select Settings then 3 press OK to confi rm. 28 / 03 / 2020 SCREEN SAVER Press a key twice HOME SCREEN DATE / TIME L M M J V S D MANUAL COMMANDS MENU x fois...
-
Page 21: Updating Device Firmware
11. Updating device firmware Use the Hager Mood app to keep the firmware in your device up to date. On the home screen, tap the device icon to begin. Then tap the device settings symbol. In the Firmware tab, tap New version available. - Page 22 How to dispose of this product (waste electrical and electronic equipment). (Applicable in the countries of the its EGN100, EGN200 and EGN400 wireless time switches European Union and other European countries with separated comply with the essential requirements and other waste collection systems).
