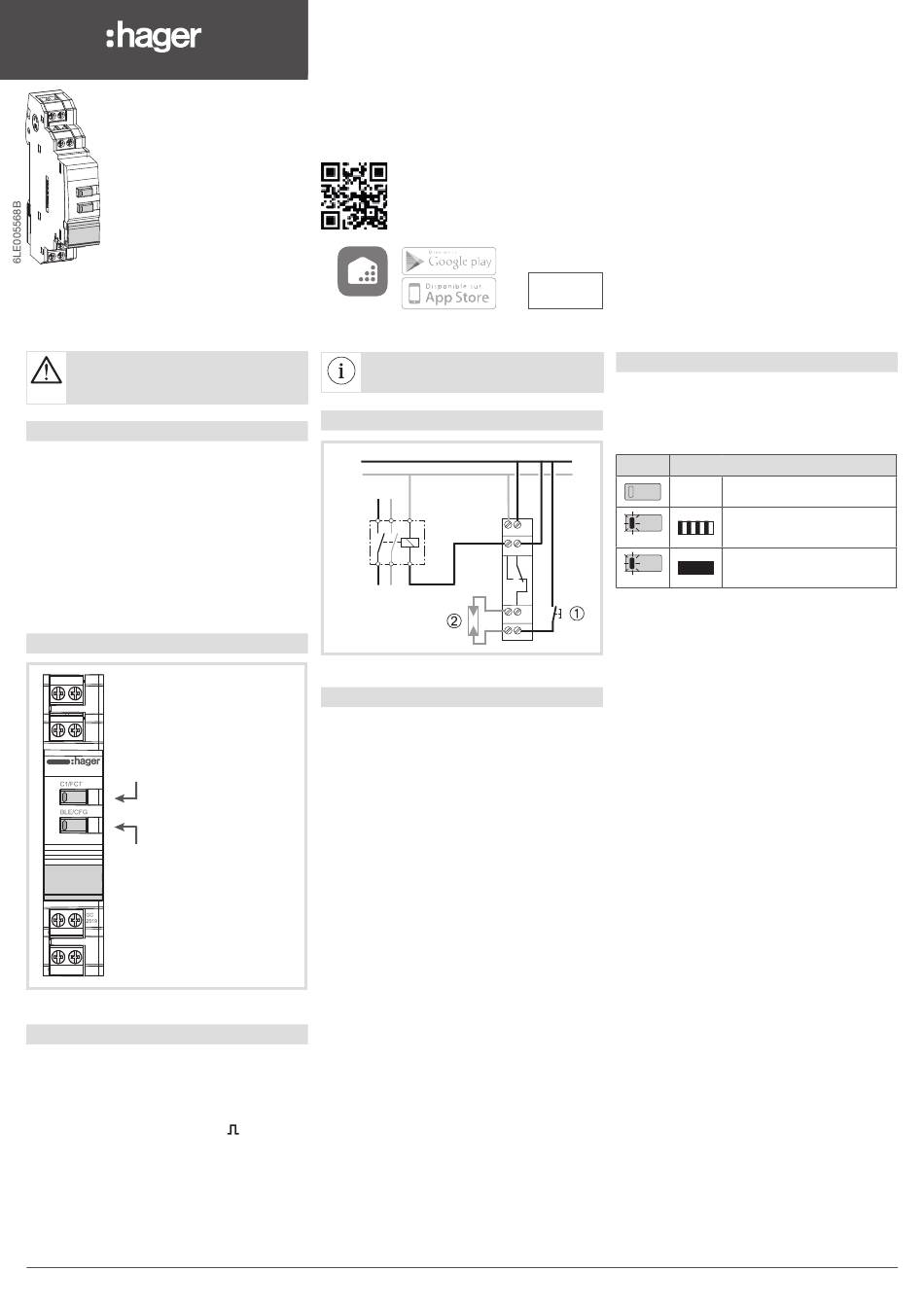

hager EGN100AU Quick Start Manual

EGN100AU
• Device to be installed only by a qualified
electrician according to the installation
standards applicable in the country.
• Not suitable for controlling SELV loads.
Product Presentation

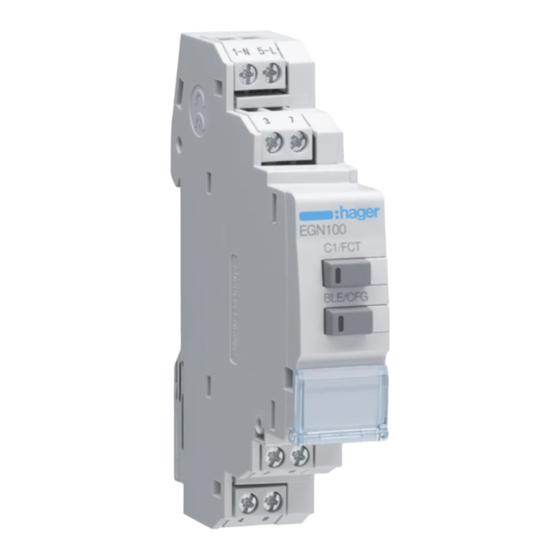

The EGN100AU time switch is a clock with weekly
and annual electronic programming that automatically
controls different loads.
Examples of applications: street lighting, neon signs,
shop windows, monuments, facades etc.
The integrated astronomical clock can be set to
switch loads according to sunset and sunrise times.
The connection of an EEN002 / EEN003 twilight
sensor (optional) makes it possible to switch the loads
according to brightness.
Programming is performed with a mobile terminal
via Bluetooth technology using the configuration
®
application (iOS and Android) available as a free
download.
The keys
C1/FCT (key and LED) used for:
• output control;
• Bluetooth reset.
®
EGN100AU
BLE/CFG (key and LED) used for:
• Bluetooth activation and
®
deactivation (BLE),
• Resetting parameters.
Image 1: Presentation of keys
Main features
• Product delivered with updated time and day.
• Programming by application via Bluetooth
technology:
- automatic daylight savings time change;
- astronomical mode;
- programming by day or group of days;
- 100 program steps On, Off, pulses
• Permanent overrides On or Off.
• Temporary overrides On or Off.
• Exceptions (temporary, permanent or delayed) can
be activated remotely using a push button.
• Twilight switch function via an EEN002 or EEN003
wired brightness sensor.
1
z Multi-function Time Switch
1 Channel Bluetooth
Additional information is available by
scanning the displayed QR code with
your mobile terminal.
Hager Mood
Before connecting the cell, or before
carrying out any operations on it, cut the
230 V power supply to the clock.
Connection diagram
L
N
1 Override input
or exception
2 Brightness sensor
Figure 2: EGN100AU connection diagram (1 output)
Technical specifications
Electrical specifications
• Supply voltage: 230 V~ +10/-15%
and 240 V~ ± 6%
• Network frequency: 50/60 Hz
• Consumption: < 170 mW
• Output 1 non-insulated changeover contact
• Max. breaking capacity: AC1 μ 10A 230 V~
• Incandescent light bulbs:
- Power relay with normally open contact/2300 W
- Power relay with normally closed contact/1500 W
• Halogen lamps: 230 V~ 2300 W
• Fluorescent tubes, compensated // (max. 45 μF):
- Power relay with normally open contact/400 W
- Power relay with normally closed contact/300 W
• Fluorescent tubes, uncompensated, series
compensated: 1000 W
• Compact fluorescent lamps and LED lamps:
- Power relay with normally open contact/400 W
- Power relay with normally closed contact/300 W
• Min. breaking capacity: AC1 100 mA 230 V~
• Rated shock voltage: 4 kV
• Maximum switching speed at full load: 6 switching
cycles/minute
Functional features
• Programming capacity: 100 steps
• Min. time between 2 steps: 1 minute
• Precision of operation: ± 0.25 s / day
• Bluetooth radio frequency: 2.4 - 2.483 GHz
®
®
- Max. transmitting power: 10 mW
- Range: 10 m in free field
- Version: 4.2
• Mobile/PC terminal configuration
- iOS version equal to or greater than 8
.
- Android version equal to or greater than 5.1
- Windows version equal to or greater than 10
: version equal to or greater than 4.2
- Bluetooth ®
• Insulation class: 2
• Action type: 2B
• Software class: Class A
• Ball test T°: 75 °C
• Upstream protection: 10 A circuit breaker
• Stated voltage and current for EMC emissions
testing: 230 V~ / - 0.5 A
• Protection class: IP20 (case), IP30 (case under
faceplate)
• Impact resistance: IK04
®
Battery
• Power reserve: 10 years
• Non-replaceable and non-rechargeable
Case
• Dimensions: 18 mm / 1 module
• DIN rail mounted independent product according to
EN 60715
Environment
• Operating T° -5 °C to +45 °C
• Storage T° -25 °C to +70 °C
• Relative humidity: 95 % to 20 °C
• Pollution category 2
Complies with
Connection with screw terminals
IMDA Standards
DA101847
• Rigid 0.2 to 4 mm
• Flexible 0.2 to 2.5 mm
• Screw recess: PH1
Initial set-up
BLUETOOTH
To program and set the clock with a mobile terminal,
the Bluetooth
Each time the BLE key is pressed (> 2 s) the function
is enabled or disabled.
BLE
1 5
Blue
3 7
Blue
Figure 3: LED operation and status
CONFIGURATION APPLICATION
2 6
To set the clock, use the application and perform the
4 8
installation as described below.
1. Directly access the application's download link by
scanning the QR code printed on the instructions
with a mobile terminal.
2. Download and install the configuration application.
3. Check that Bluetooth
/ BLUETOOTH).
4. Pair your mobile terminal and your clock via the
Bluetooth
5. Program your product via the application. To do this,
follow the application instructions to configure the
clock.
Settings via the configuration application:
Settings for the use of your clock are available via the
application as settings of:
• date and time;
• astronomical clock;
• wired input;
• daylight savings time change;
• twilight sensor.
2
2
function must be activated.
®
LED status / Operation
off Bluetooth disabled
®
Bluetooth enabled
®
Bluetooth assembled and
®
connected
is enabled (see Initial set-up
®
application.
®
6LE005568B
