hager EG270 Instructions For Use

_________________________________________________________________________
http://waterheatertimer.org/Hagar-timers-and-manuals.html
´ §
2 channels time switch -
weekly cycle
A
ON
ON B
au to
OFF nu
OFF ma
7
6
re s
5
4
3
r
2 en te
1
on
of f

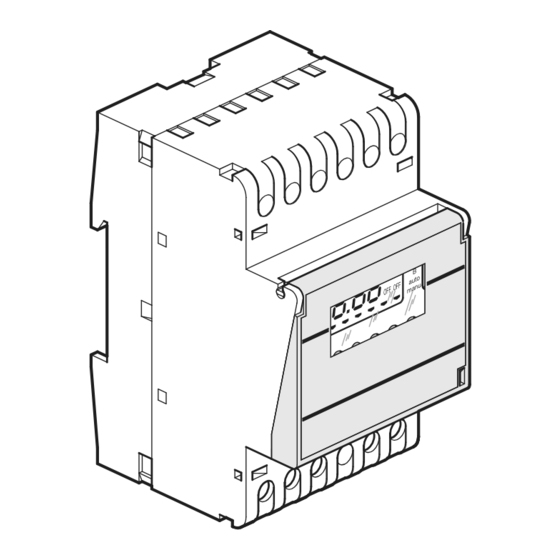

EG270
Working principle : Time and day setting :
The EG270 is a time switch for the automatic
control of electrical loads.
It is fully programmable with a maximum of 20
program steps to be divided between the two
channels. Each program step can be applied
to one or several days, maximising the use of
each memory location.
The front cover is sealable preventing
unauthorised access after completion of
programming.
Warning : at the beginning of use, please
on
reset the device in order to clear the memory
before programming.
This is achieved by using a pen to push the
reset button.
1. Move mode selector to
2. Select with key "1" to "7" , the actual day
Presentation :
(1=Monday, 2 = Tuesday .)
3. Input time with buttons "+" and "-".
Important :
2 The clock starts when exiting the time setting mode.
3
Programming channel A :
ON ON
1 A 5
B
auto
4 manu
6
1 2 3 4 5 6 7
on
reset
enter
off
7 8 9 10
on
Display :
Œ
time

circuit status of channel A (ON or OFF)
Ž 1. Move mode selector to "A".
circuit status of channel B (ON or OFF)
2. Select with keys "1" to "7" the day(s) assigned

day of the week to this program step. An arrow appears
(1 = Monday, 2 = Tuesday ....)
above each day concerned.
3. Input switching time with buttons "+" and "-".
4. Input the type of switching with button "on/off"
Buttons :

(for the first action ON is automatically proposed).
Mode selector : to select one of the
5. Enter this program step with button "enter".
following modes :
time setting Program additional time settings by repeating
A programming channel A steps 2 to 5.
B programming channel B
Important :
auto running mode
To activate the program, move mode selector to
manu manual override
"auto".
‘
"1" to "7" : selection of the days
’
"on/off" : chooses whether the circuit Programming channel B :
is on or off
Move mode selector to "B".
“
"+" and "-" : changes settings
Same way of programming as channel A.
”
"enter" : to confirm
Important :
•
"reset" To active the program, move mode selector to "auto".
Running Auto mode
This mode is the current displaying mode.
It does not allow any modification.
Move mode selector to "auto".
Display of the time, the day and the state of the two
channels.
1
User instruction
To check your program on channel A
or B :
1. Move mode selector to "A" or "B".
2. Press the "enter" key repeatedly to display
the different program steps (switching time,
days of the week and state of the channel
ON or OFF).
A
B
auto
manu
To modify or delete a program step
on channel A or B :
1 2 3 4 5 6 7
reset
enter
off
1 2 3 4
on
off
1. Move mode selector to "A" or "B".
2. Press "enter" repeatedly and select the
program step to modify or to delete.
3. Modify :
- switching time with keys "+" or "-"
ON ON ON ON
A
- days assigned with keys "1" to "7".
B
auto
(an arrow flashes above all days assigned,
manu
press once to add a day, press twice to
cancel).
- state of the channel with key "on/off".
1 2 3 4 5 6 7
To delete a program step, press keys "1" to
reset
"7" in order to cancel all days assigned.
enter
off
4. Confirm with the "enter" key.
To override the output :
Important : the override must be identical on
the two channels (channels A and B "ON"
"ON" or channels A and B "OFF""OFF").
Permanent override :
1 2 3 4
on
off
1. Move mode selector to "manu".
2. Select the state of the outputs with key
"on/off".
To switch back to automatic mode, move
mode selector to "auto".
Timed override :
ON ON ON
1 2 3 4 5
on
off
ON ON
A
B
auto
1. Move mode selector to "manu".
manu
2. Select the state of the outputs with key
"on/off".
3. Input with key "+" and "-" the override dura
5 6 7
tion : from 1 to 23 hours by steps of 1 hour.
reset
Then from 1 to 27 days by steps of 1 day.
enter
4. Move mode selector to "auto".
The state indication is flashing. This means a
timed override. Return to the initial program
after the duration.
To cancel the timed override :
ON ON
1 2 3 4 5 6
on
off
ON ON
A
B
1. Move mode selector to "manu".
auto
manu
2. Press key "-" or "+" until display -h.
3. Move mode selector to "auto" to switch
back to automatic mode.
5 6 7
reset
To reset the time switch :
enter
Press "reset" to clear the program.
Technical specifications :
Electrical characteristics :
- supply voltage : 230V AC +10/-15% 50/60Hz
- outputs : 2 changeover contact
μ 16A - 250V AC1.
μ 3A - 250V cos ϕ = 0,6
ON
A 1000 W incandescent lighting
B
- power consumption : 1 VA
auto
manu
- protection degree : IP20
- insulation class : II
6 7
Functional characteristics :
- accuracy : ± 1sec. / day at 20 °C
reset
- operating reserve : lithium battery,
enter
total of three years.
Environment :
Operating temperature : -10 to +50 °C
Storage temperature : -10 to +50 °C
Connection tunnel terminals :
2
flexible : 0,5 to 2.5 mm
2
rigid : 0,5 to 4 mm
Dimensions : 3 modules (3x17,5mm)
Electrical connections :
L
N
7 8 9 10 11 12
B
EG270
A
A
B
auto
manu
1 2 3 4 5 6
7
reset
enter
Warranty
GB
A warranty period of 24 months is offered on hager products,
from date of manufacture, relating to any material of manufac-
turing defect. If any product is found to be defective it must be
returned via the installer and supplier (wholesaler). The warranty
is withdrawn if :
- after inspection by hager quality control dept the device is
found to have been installed in a manner which is contrary to
IEE wiring regulations and accepted practice within the industry at
the time of installation.
- the procedure for the return of goods has not been followed.
Explanation of defect must be included when returning goods.
