EG 270
Working principle :
The EG 270 is a time switch for the
automatic control of electrical loads.
It is fully programmable with a maximum
of 20 program steps to be divided bet-
ween the two channels. Each program
step can be applied to one or several
days, maximising the use of each memo-
ry location.
The front cover is sealable preventing
unauthorised access after completion of
programming.
Warning : at the beginning of use, please
reset the device in order to clear the
memory before programming.
This is achieved by using a pen to push
the reset button.

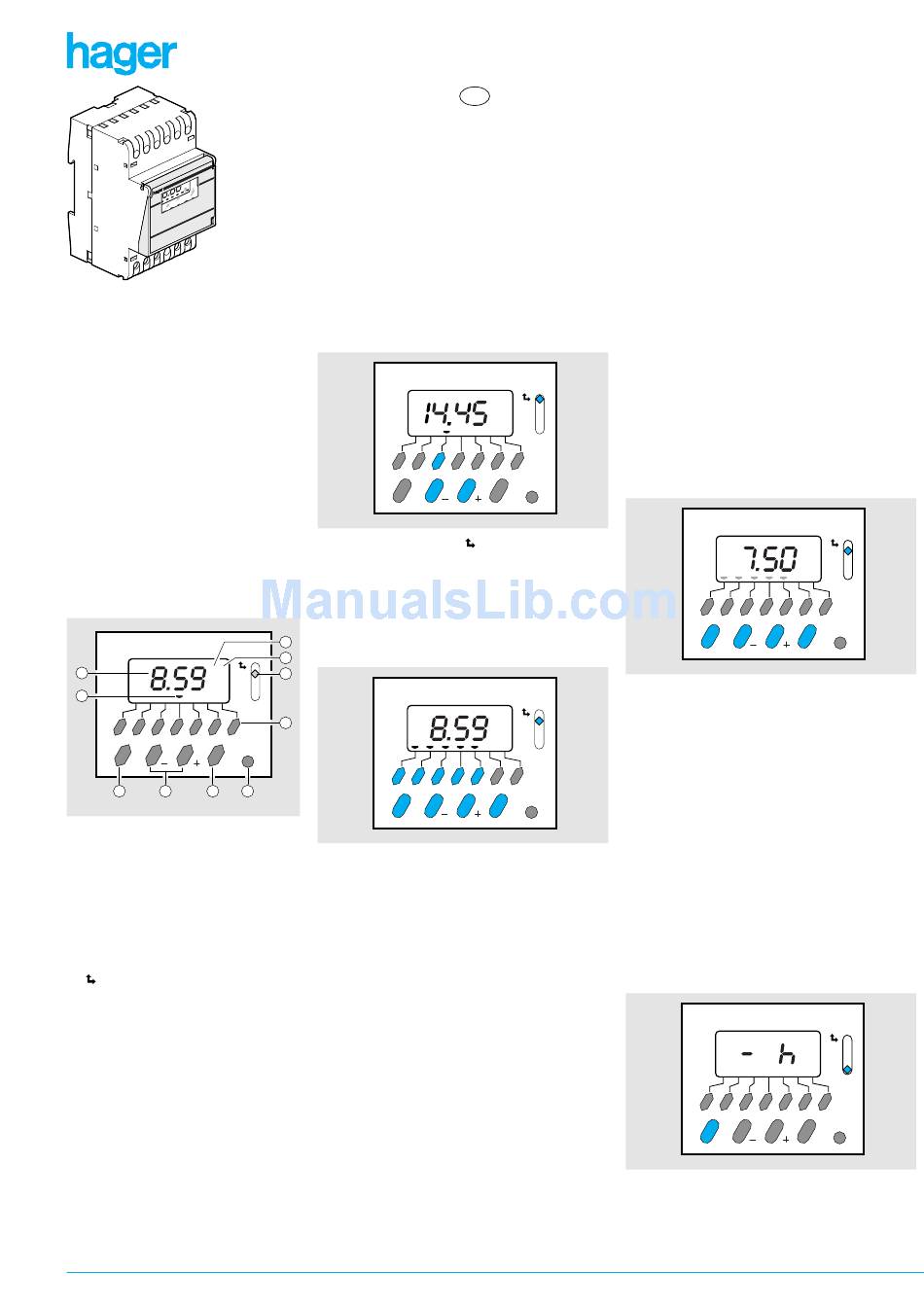

Presentation :
ON ON
1
A
B
auto
4 manu
1 2 3 4 5 6 7
on
reset
enter
off
7 8 9
Display :
➀
time
➁
circuit status of channel A (ON or OFF)
➂
circuit status of channel B (ON or OFF)
➃
day of the week
(1 = Monday, 2 = Tuesday ....)
Buttons :
➄
Mode selector : to select one of the
following modes :
time setting
A programming channel A
B programming channel B
auto running mode
manu manual override
➅
"1" to "7" : selection of the days
➆
"on/off" : chooses whether the circuit
is on or off
➇
"+" and "-" : changes settings
➈
"enter" : to confirm
➉
"reset"
User instruction
2 channels time switch -
weekly cycle
Time and day setting :
1
on
off
1. Move mode selector to
2. Select with key "1" to "7" , the actual day
(1=Monday, 2 = Tuesday .)
3. Input time with buttons "+" and "-".
Important :
The clock starts when exiting the time setting mode.
2
Programming channel A :
3
5
6
1
10
on
off
1. Move mode selector to "A".
2. Select with keys "1" to "7" the day(s) assigned
to this program step. An arrow appears
above each day concerned.
3. Input switching time with buttons "+" and "-".
4. Input the type of switching with button "on/off"
(for the first action ON is automatically proposed).
5. Enter this program step with button "enter".
Program additional time settings by repeating
steps 2 to 5.
Important :
To activate the program, move mode selector to
"auto".
Programming channel B :
Move mode selector to "B".
Same way of programming as channel A.
Important :
To active the program, move mode selector to "auto".
Running Auto mode
This mode is the current displaying mode.
It does not allow any modification.
Move mode selector to "auto".
Display of the time, the day and the state of the two
channels.
GB
A
B
auto
manu
2 3 4 5 6 7
reset
enter
ON ON
A
B
auto
manu
2 3 4 5 6 7
reset
enter
To check your program on channel A
or B :
1. Move mode selector to "A" or "B".
2. Press the "enter" key repeatedly to display the
different program steps (switching time, days of
the week and state of the channel ON or OFF).
To modify or delete a program step on
channel A or B :
ON ON
1 2 3 4 5
on
off
1. Move mode selector to "A" or "B".
2. Press "enter" repeatedly and select the program
step to modify or to delete.
3. Modify :
- switching time with keys "+" or "-"
- days assigned with keys "1" to "7".
(an arrow flashes above all days assigned,
press once to add a day, press twice to cancel).
- state of the channel with key "on/off".
To delete a program step, press keys "1" to "7" in
order to cancel all days assigned.
4. Confirm with the "enter" key.
To override the output :
Important : the override must be identical on the
two channels (channels A and B "ON""ON" or
channels A and B "OFF""OFF").
Permanent override :
ON ON
1 2 3 4 5
on
off
1. Move mode selector to "manu".
2. Select the state of the outputs with key "on/off".
To switch back to automatic mode, move mode
selector to "auto".
A
B
auto
manu
6 7
reset
enter
A
B
auto
manu
6 7
reset
