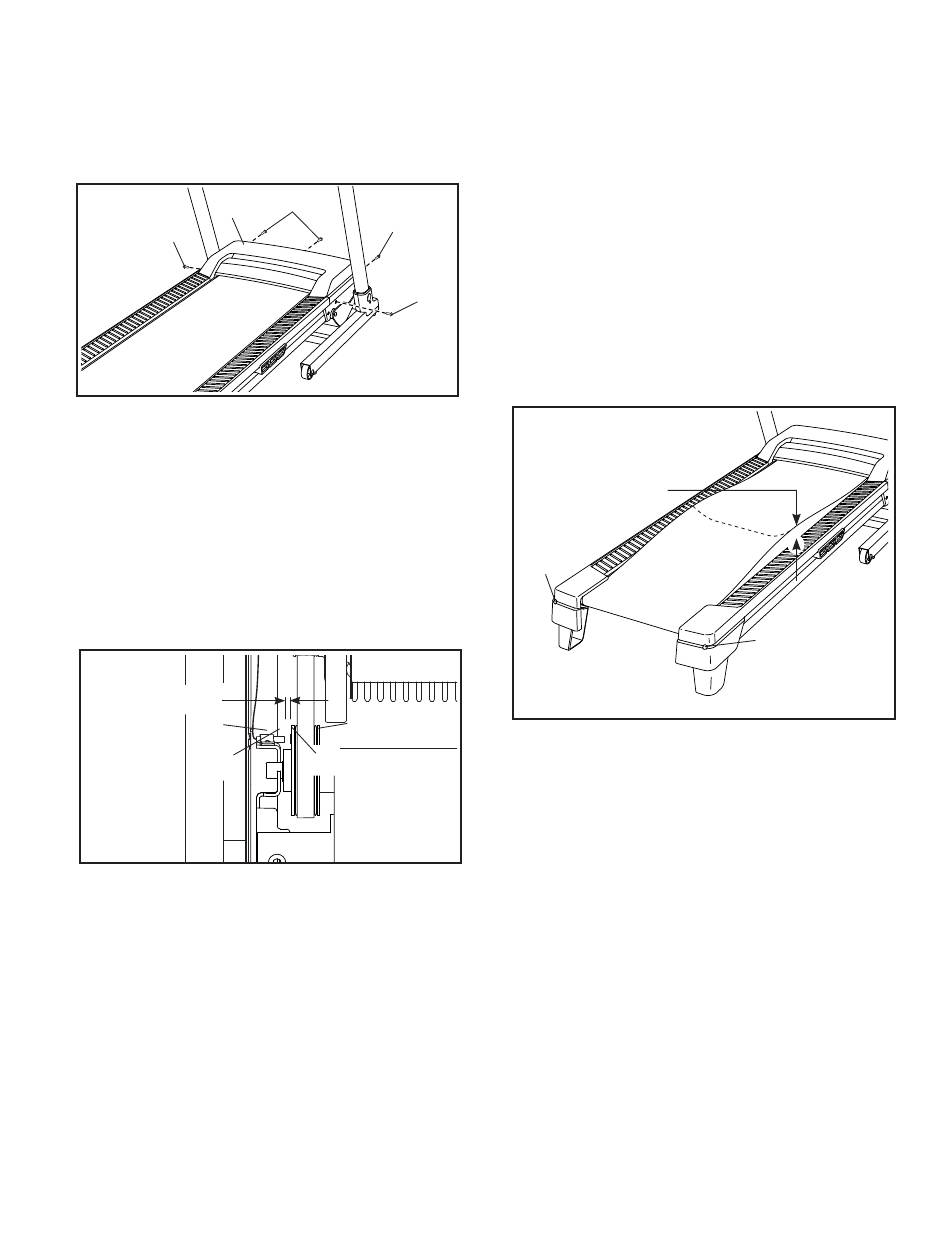

SYMPTOM: The displays of the console do not
function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Remove the five indicated
M4.2 x 19mm Washer Head Screws (13). Then,
carefully remove the Motor Hood (62).
62
13
Locate the Reed Switch (101) and the Magnet
(102) on the left side of the Pulley (52). Turn the
Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8 in. (3
mm). If necessary, loosen the #8 x 3/4" Truss Head
Screw (104), move the Reed Switch slightly, and
then retighten the Truss Head Screw. Reattach the
Motor Hood, then walk on the treadmill for a few
minutes to check for a correct speed reading.
Top
View
1/8 in.
104
80
101
13
13
13
52
102
SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a 3-conduc-
tor, 14-gauge (2 mm
5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill
performance may decrease and the walking belt
may become damaged. Remove the key and
UNPLUG THE POWER CORD. Using the hex key,
turn both idler roller screws (C) counterclockwise,
1/4 of a turn. When the walking belt is properly
tightened, you should be able to lift each edge of
the walking belt 2 to 3 in. (5 to 7 cm) off the walking
platform. Be careful to keep the walking belt
centered. Then, plug in the power cord, insert the
key, and walk on the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
2–3 in.
C
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
22
) cord that is no longer than
2
C
