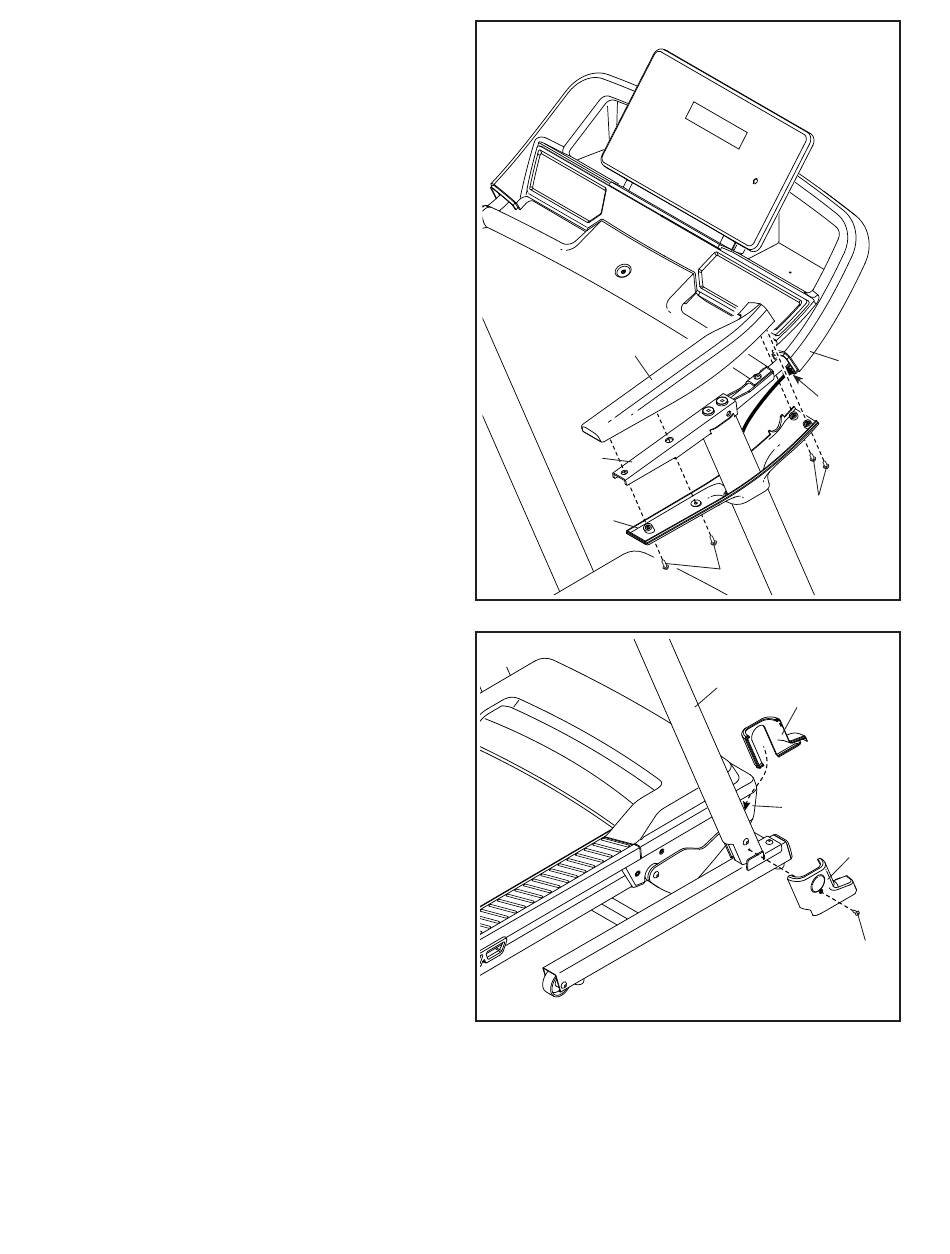

7. Identify the Right Handrail Top (72). Set the
Right Handrail Top on the Handrail (76), and
slide it forward against the console assembly (A).
Next, slide the Right Handrail Bottom (74)
upward. Make sure that the Upright Wire (78)
is covered by the Right Handrail Bottom
and is not pinched. Attach the Right Handrail
Bottom with four #8 x 3/4" Screws (29); start all
four Screws, then tighten them. Note: Insert
the Screws at an angle as shown. Be careful
not to overtighten the Screws.
Attach the Left Handrail Top (not shown)
and the Left Handrail Bottom (not shown) as
described above. Note: There are no wires on
the left side.
8. Slide the Right Inner Upright Cover (84) between
the Right Upright (81) and the Motor Hood (62).
Next, press the Right Outer Upright Cover (85)
against the Right Inner Upright Cover until they
snap together.
Then, tighten a #8 x 3/8" Screw (6) into the Right
Outer Upright Cover (85). Do not overtighten
the Screw.
Repeat this step on the left side of the
treadmill.
7
72
76
74
8
10
A
78
29
29
81
84
62
85
6
