Racelogic VBOX LapTimer User Manual page 43

Orientation

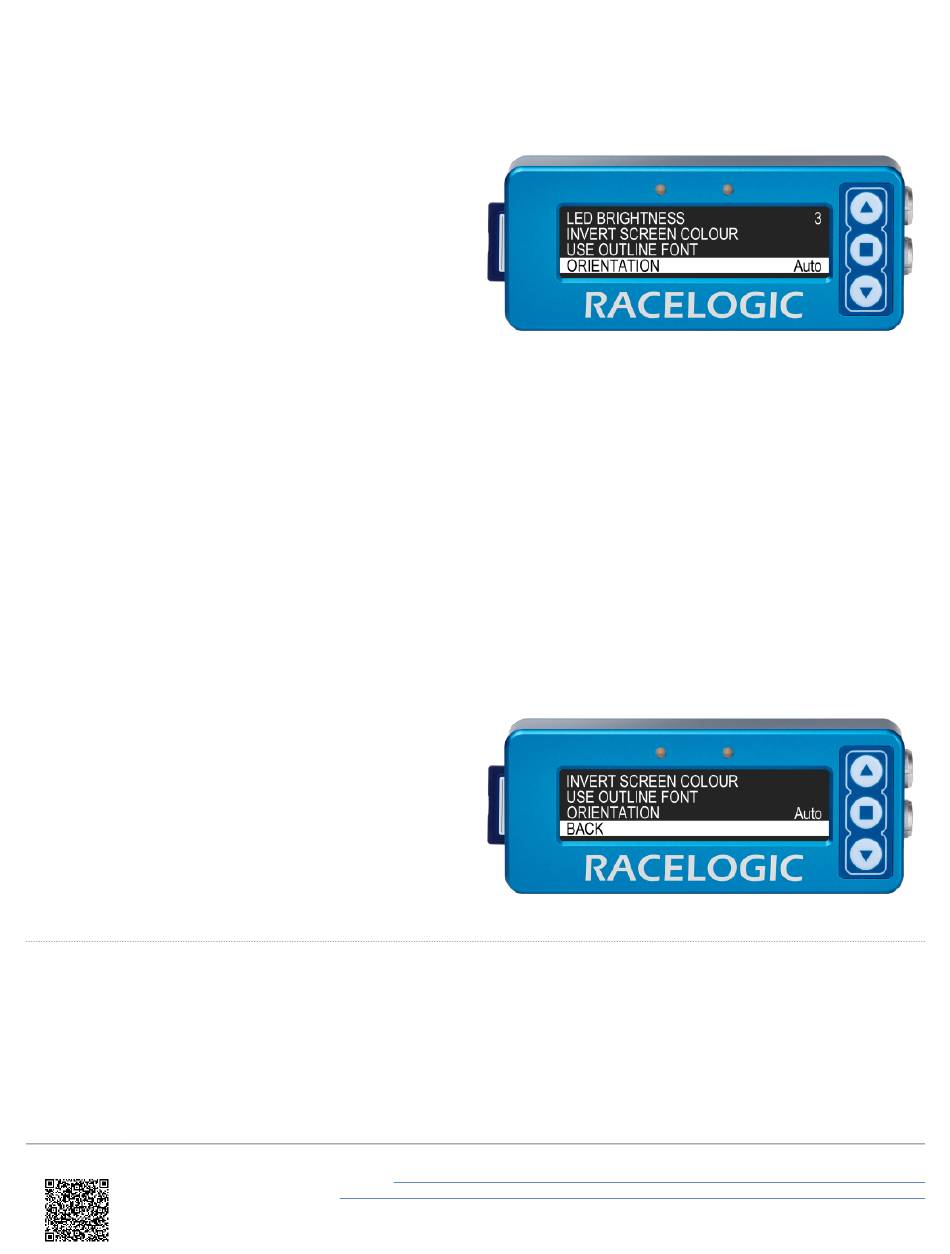

With this setting, you can define the orientation of the
VBOX LapTimer screen using the three options
available: Normal, Inverted and Auto. When the
default Auto is selected, the display will automatically
rotate when it is turned upside down.
Note: If you are fitting the VBOX LapTimer in a
permanent install or if you expect it to experience heavy
vibrations during use, you may wish to fix the orientation
as these can trigger the sensitive internal gyro to flip the
screen while in use.
Normal
Inverted
Auto
Back
Press the square button with this line highlighted to exit
the Display Menu and go back to the Main Menu.
GNSS Options
Note: You cannot access the GNSS Options menu when you are using the LapTimer in OLED mode. If you need to
perform a coldstart while in OLED mode you will have to do this on the connected unit. This menu option is only
available on VBOX LapTimer V2 variants and newer.
The display will have the same orientation as the
Racelogic logo.
The display will have the opposite orientation from the
Racelogic logo.
The display will automatically rotate when the unit is
turned.
