02 - VBOX LapTimer - GPS

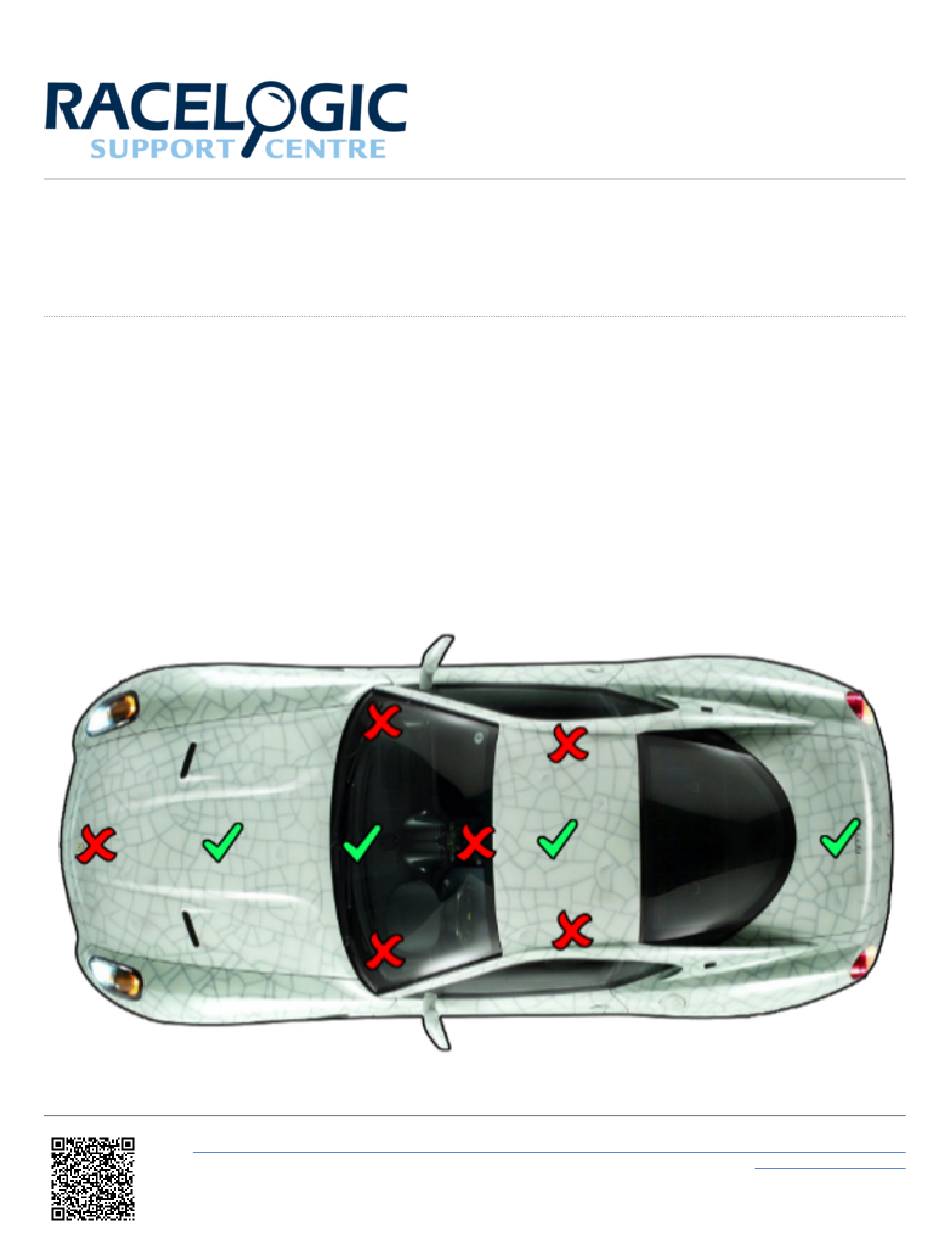

Obtaining the Best GPS Quality

Placement of the GPS antenna is crucial to the quality of the data recorded by VBOX LapTimer. Any metal close to a

GPS antenna can disturb the signal in an unpredictable way due to interference from reflections of weak GPS signals.

For the best results, use the antenna in the centre of a metal roof at least 5 cm away from any metal objects such

as roof bars or radio antennas. Do not mount the antenna close to the edge of the roof as reflections from the ground

may interfere with the signals. Avoid the edges as reflections from the A-pillars will cause problems.

Mount the antenna as high up as possible and keep above any roll bars. Pieces of metal close to and above an antenna

will badly disrupt the GPS signal.

https://en.racelogic.support//Product_Info/Lap_Timing_and_Pit_Timing/VBOX_LapTimer/VBOX_LapTimer_User_Guide/02_-

_VBOX_LapTimer_-_GPS

Page 1 Obtaining the Best GPS Quality Placement of the GPS antenna is crucial to the quality of the data recorded by VBOX LapTimer. Any metal close to a GPS antenna can disturb the signal in an unpredictable way due to interference from reflections of weak GPS signals.
Page 2 Media, iframe, embed and object tags are not supported inside of a PDF. Acquiring Satellite Lock Tall buildings or trees can block GPS signals, causing a reduction in the number and quality of satellites being tracked, leading to inaccurate position measurements and a noisy velocity signal. https://en.racelogic.support//Product_Info/Lap_Timing_and_Pit_Timing/VBOX_LapTimer/VBOX_LapTimer_User_Guide/02_- _VBOX_LapTimer_-_GPS...
Page 3 GPS Coldstart If VBOX LapTimer is struggling to acquire satellite lock, a GPS coldstart may be required. This may be necessary when the unit hasn’t been used for a number of days or has dramatically moved location since its last use. To perform a cold- start, select MENU >...
