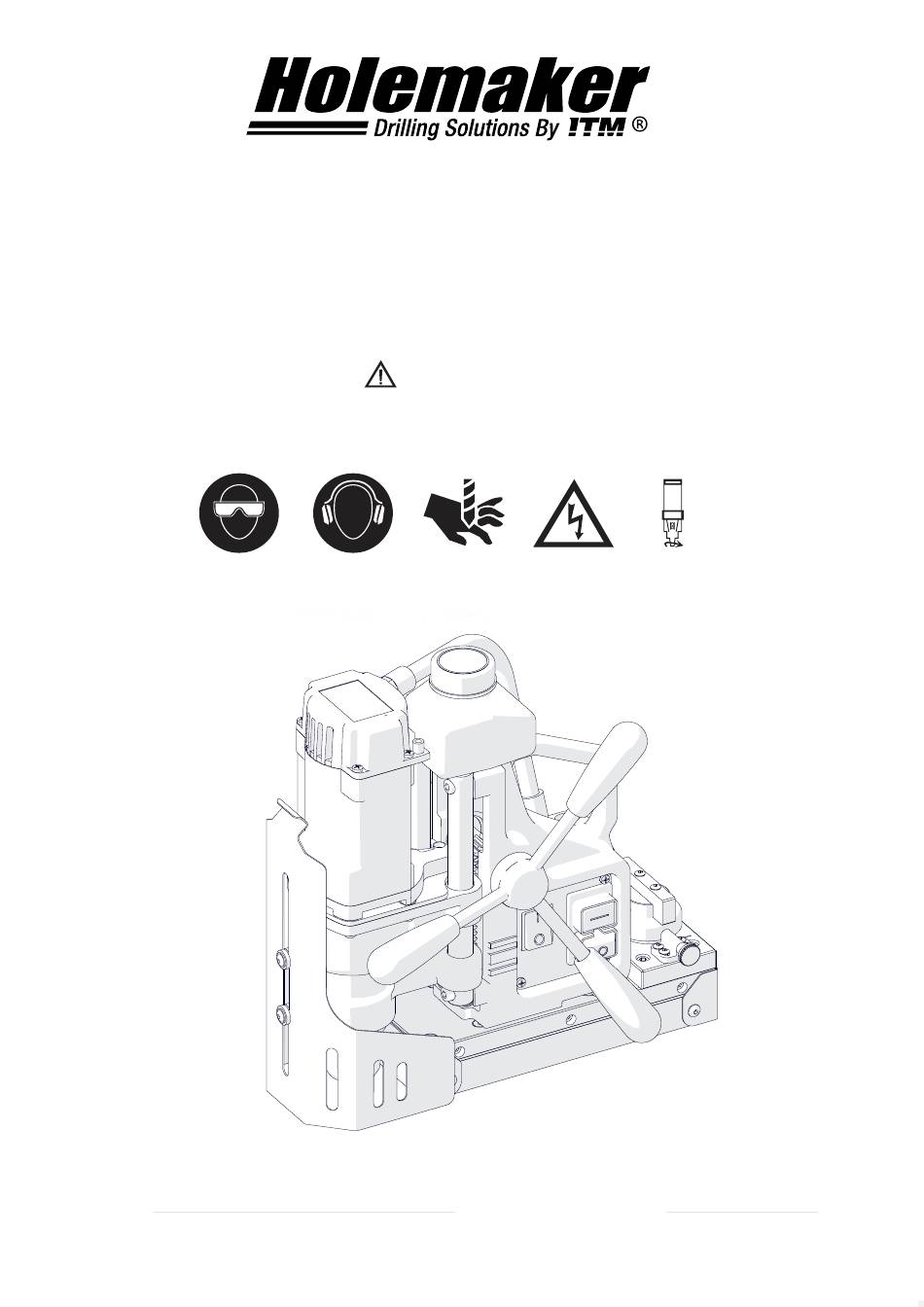

HOLEMAKER PRO 50 HOLEMAKER HMPRO35-PM HOLEMAKER PRO 50 Holemaker Portable Magnetic Drilling Machine OPERATOR’S MANUAL Holemaker Portable Magnetic Drilling Machine Holemaker Portable Magnetic Drilling Machine OPERATOR’S MANUAL OPERATOR’S MANUAL WARNING! BEFORE USE ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS OPERATOR’S MANUAL...
HMPRO35-PM OPERATOR’S MANUAL LIMITED WARRANTY Industrial Tool & Machinery Sales (hereinafter referred to as ITMS) will, within twelve (12) months from the original date of purchase, repair or replace any goods found to be defective in materials or workmanship. This warranty is void if the item has been damaged by accident, neglect, improper service or other causes not arising out of defects in materials or workmanship.
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 1. GENERAL INFORMATION 1.1. Application The PRO 35 PM is a drilling machine designed to drill holes with diameters of up to 35 mm to a depth of up to 45 mm by using annular cutters.
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 1.3. Equipment included Drilling machine with cooling 1 unit system bottle and chip guard Metal box 1 unit Handle 3 units Safety strap 1 unit 4 mm hex wrench with handle 1 unit Operator’s Manual 1 unit –...
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 1.4. Dimensions 179 mm (7-1/16’’) 329 mm (12-15/16’’) 1.5. Design Cooling system bottle Bottle valve lever Feed shaft Carrying handle MOTOR start button Control panel Magnet switch Spindle with arbor Chip guard MOTOR stop...
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 2. SAFETY PRECAUTIONS 1. Before starting, read this Operator’s Manual and complete proper occupational safety and health training. 2. Use the machine only in applications specified in this Operator’s Manual. 3. The machine must be complete and all parts must be genuine and fully functional.
Page 7
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 20. Use the safety strap in all work positions. Attach the machine to a fixed structure by fastening the strap through the opening in the machine body. When working in horizontal position fasten the strap to the carrying handle. Never insert the strap into the buckle from the front.
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 3. STARTUP AND OPERATION 3.1. Installing, removing, and operating the annular cutter Unplug the machine from the power source, and then rotate the handles to the right (1, Fig. 1) to raise the motor. Wear protective gloves and insert the proper pilot pin into the annular cutter (2).
Page 9
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM Fig. 2 shows how annular cutters work. As the cutter drills into the workpiece, the pilot pin retracts and the coolant gets into the cutter. After the drilling, the tightened spring causes the slug core to be pushed out.
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 3.2. Installing and removing the cooling system bottle Rotate the handles (1, Fig. 4) to raise the motor. Next, place the cooling system bottle on the machine (2), and then attach the bottle hose to the hose fitting (3).
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 3.3. Preparing Before starting, clean steel parts, including the arbor, from anti-corrosion coating used to preserve the machine for storage and transport. Screw the handles into the feed shaft. The machine can allow use by a left-handed person or in places hard to reach.
Page 12
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM Inverted drilling Vertical drilling CORRECT INCORRECT ✓ Horizontal drilling Fig. 5. Protecting the machine from falling by using the safety strap Rotate the handles to the left to place the cutter above the workpiece.
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 3.4. Drilling Connect the machine to the power source and set the POWER switch to ‘I’. Next, start the motor with the green MOTOR button. Then, slowly rotate the handles to the left to lower the cutter to the workpiece, and start drilling. Drill the hole in one pass.
HMPRO35-PM OPERATOR’S MANUAL PRO 36 PM 3.5. Replacing the motor brushes Check the condition of the carbon brushes every 100 work hours. To do this, unplug the machine from the power source, and unscrew the cover (1, Fig. 6). Next, unscrew the pressing plate (2), and then remove the brush holder (3) and the brush (4).
PRO 36 PM HMPRO35-PM OPERATOR’S MANUAL 5. WIRING DIAGRAM 4. WIRING DIAGRAM This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited. www.itmtools.com.au...
HMPRO35-PM OPERATOR’S MANUAL Parts list PRO 36 PM v.6.06 ITEM PART NUMBER DESCRIPTION Q-TY SKR-0440-23-00-00-0 METAL BOX KLC-000036 4 MM HEX WRENCH WITH HANDLE PAS-000007 SAFETY STRAP 250 www.itmtools.com.au This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
Page 17
HMPRO35-PM OPERATOR’S MANUAL Parts list PRO 36 PM v.6.06 www.itmtools.com.au This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
Page 18
HMPRO35-PM OPERATOR’S MANUAL Parts list PRO 36 PM v.6.06 ITEM PART NUMBER DESCRIPTION Q-TY SZN-0212-10-02-00-2 POWER CORD 230V 3x1.5 WITH STRAIN RELIEF ASSY (EU) SZN-0212-10-02-00-1 POWER CORD 230V 3x1 WITH STRAIN RELIEF ASSY (AU) SZN-0075-00-51-00-5 POWER CORD 120V 3x2.08 WITH STRAIN RELIEF ASSY (US) PWD-0212-10-02-00-6 POWER CORD 230V 3x1.5 WITH STRAIN RELIEF ASSY (INDIA)
Page 19
HMPRO35-PM OPERATOR’S MANUAL Parts list PRO 36 PM v.6.06 ITEM PART NUMBER DESCRIPTION Q-TY LOZ-000048 BALL BEARING 25x47x12 KNC-0234-00-10-00-0 HOSE FITTING WKR-000241 SELF-TAPPING SCREW 4x20 SCZ-000008 MOTOR BRUSH 6x9x17 SCT-0271-03-06-00-0 BRUSH HOLDER LOZ-000053 BALL BEARING 8x22x7 PKR-0440-03-02-00-1 MOTOR COVER PRS-000070...
