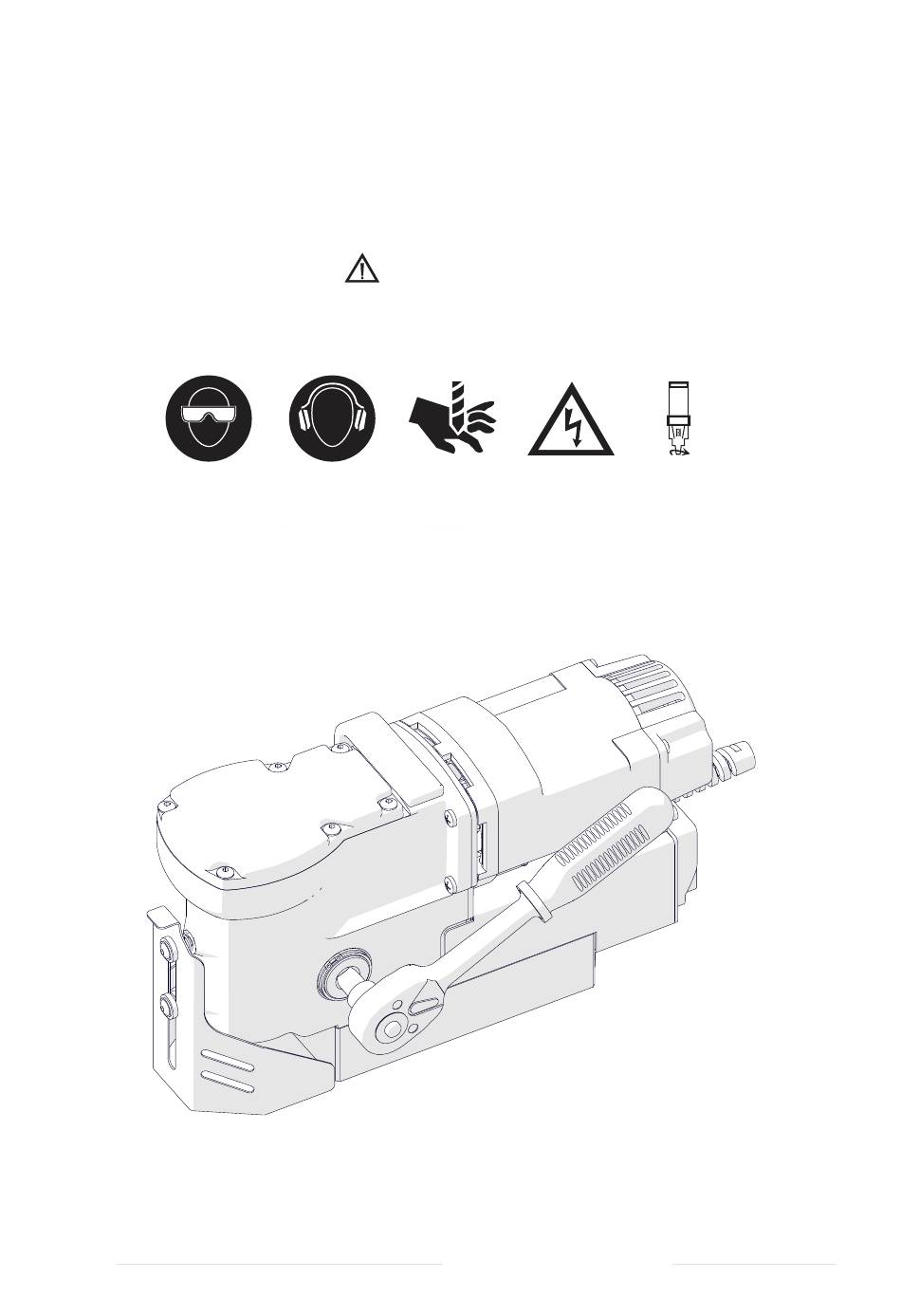

HOLEMAKER HMPRO36AD Operator's Manual

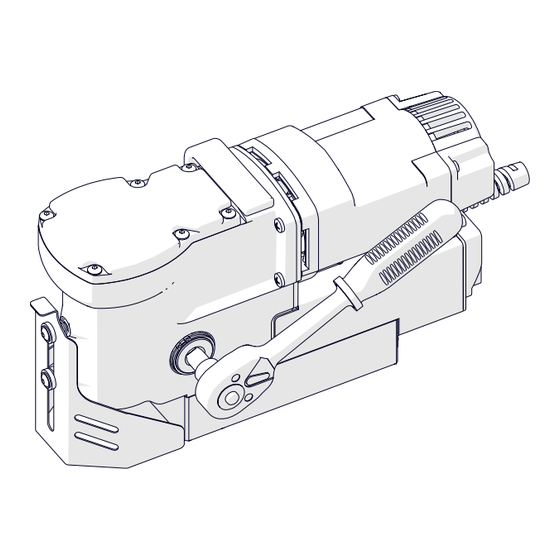

Portable magnetic drilling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HOLEMAKER HMPRO36AD
HOLEMAKER PRO 50
HOLEMAKER PRO 50
Holemaker Portable Magnetic Drilling Machine
Holemaker Portable Magnetic Drilling Machine
OPERATOR'S MANUAL
Holemaker Portable Magnetic Drilling Machine
OPERATOR'S MANUAL
OPERATOR'S MANUAL
BEFORE USE
BEFORE USE
EYE PROTECTION
WITH ELECTROMAGNETIC BASE
REQUIRED
EYE PROTECTION
REQUIRED
S
r e
a i
# l
S
r e
a i
# l
Ver: 1.10
14/08/2015
Ver: 1.01 31/07/2018
Ver: 1.10
14/08/2015
OPERATOR'S MANUAL
WARNING!
WARNING!
,
ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL
,
ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL
PRO 36
PRO 36
DRILLING MACHINE
HEARING PROTECTION
REQUIRED
HEARING PROTECTION
REQUIRED
ul. Elewatorska 23/1, 15-620 Białystok, Poland
Phone: +48 85 678-34-00, Fax: +48 85 651-15-31
AD
AD
NEVER PLACE
LINE VOLTAGE
FINGERS NEAR
PRESENT
CUTTING AREA OR
MACHINE ARBOR
NEVER PLACE
LINE VOLTAGE
FINGERS NEAR
PRESENT
CUTTING AREA OR
MACHINE ARBOR
D
a
e t
f o
D
a
e t
f o
.
.
BEWARE OF
ROTATING
MACHINE PARTS
BEWARE OF
ROTATING
MACHINE PARTS
P
r u
h c
a
e s
P
r u
h c
a
e s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMPRO36AD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HOLEMAKER HMPRO36AD

Summary of Contents for HOLEMAKER HMPRO36AD

  • Page 1 HOLEMAKER HMPRO36AD HOLEMAKER PRO 50 HOLEMAKER PRO 50 Holemaker Portable Magnetic Drilling Machine Holemaker Portable Magnetic Drilling Machine OPERATOR’S MANUAL Holemaker Portable Magnetic Drilling Machine OPERATOR’S MANUAL OPERATOR’S MANUAL OPERATOR’S MANUAL WARNING! WARNING! BEFORE USE ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS...

  • Page 2: Table Of Contents

    HMPRO36AD OPERATOR’S MANUAL LIMITED WARRANTY Industrial Tool & Machinery Sales (hereinafter refered to as ITMS) will, within twelve (12) months from the original date of purchase, repair or replace any goods found to be defective in materials or workmanship. This warranty is void if the item has been damaged by accident, neglect, improper service or other causes not arising out of defects in materials or workmanship.

  • Page 3: General Information

    HMPRO36AD OPERATOR’S MANUAL PRO 36 AD 1. GENERAL INFORMATION 1.1. Application The PRO 36 AD is a drilling machine with electromagnetic base, designed to drill holes with diameters of up to 36 mm (1-7/16’’) either to a depth of up to 20 mm (13/16’’) by using HSS annular cutters or to a depth of up to 30 mm (1-3/16’’) by using...

  • Page 4: Equipment Included

    PRO 36 AD PRO 36 AD 1.3. Equipment included PRO 36 AD HMPRO36AD OPERATOR’S MANUAL 1.3. Equipment included 1.3. Equipment included 1.3. Equipment included Drilling machine unit Plastic box unit Drilling machine unit Drilling machine Handle unit unit Plastic box...
  • Page 5 HMPRO36AD OPERATOR’S MANUAL www.holemaker.com...

  • Page 6: Safety Precautions

    10. Cutting Tools must be fastened firmly. 11. Do not drill with blunt of damaged cutting tools. otor used in Holemaker HMP45 drilling machine is ATEX II2 G/D C 12. Do not use annular cutters without a pilot pin, and arbors without an ejection spring.

  • Page 7: Startup And Operation

    HMPRO36AD OPERATOR’S MANUAL PRO 36 AD 3. STARTUP AND OPERATION 3.1. Installing and removing the handle Install the handle by using the adapter as shown in Fig. 1. The handle can be installed from the opposite side of the machine to allow working in places hard to reach or using the machine by a left-handed person.

  • Page 8: Installing, Removing, And Operating The Annular Cutter

    HMPRO36AD OPERATOR’S MANUAL PRO 36 AD 3.2. Installing, removing, and operating the annular cutter Unplug the machine from the power source, raise the chip guard, and then rotate the handle to the left (1, Fig. 2) to access the set screws (2). Next, wear protective gloves, insert the required pilot pin into the annular cutter (3), and then use a clean and dry cloth to wipe the arbor and cutter.
  • Page 9 HMPRO36AD OPERATOR’S MANUAL PRO 36 AD Fig. 3 shows how annular cutters work. As the cutter penetrates the workpiece, the pilot pin recesses into the arbor and tightens the spring. As a result, after the cutter goes through the entire thickness, the slug core is expelled from the cutter.

  • Page 10: Preparing

    HMPRO36AD OPERATOR’S MANUAL PRO 36 AD 3.3. Preparing Before starting, clean steel parts, including the arbor, from anti-corrosion coating used to preserve the machine for storage and transport. Install the handle as described before. Based on the hole size desired, select the proper annular cutter or drill bit with a 19 mm Weldon shank.
  • Page 11 HMPRO36AD OPERATOR’S MANUAL PRO 36 AD Vertical drilling Inverted drilling CORRECT ✓ Horizontal drilling INCORRECT Maximum possible twist of the strap Fig. 5. Protecting the machine from falling by using the safety strap Rotate the handle to the left to place the pilot pin (drill bit) above the workpiece.

  • Page 12: Drilling

    HMPRO36AD OPERATOR’S MANUAL PRO 36 AD 3.4. Drilling Start the motor with the green MOTOR button, and slowly rotate the handle to the left to lower the tool to the workpiece, and start drilling. When using annular cutter, drill holes in one pass.

  • Page 13: Replacing The Motor Brushes

    HMPRO36AD OPERATOR’S MANUAL PRO 36 AD 3.5. Replacing the motor brushes Check the condition of the carbon brushes every 100 work hours. To do this, unplug the machine from the power source, and unscrew the cover (1, Fig. 6). Next, unscrew the pressing plate (2), and then remove the brush holder (3) and the brush (4).
  • Page 14 HMPRO36AD OPERATOR’S MANUAL PRO 36 AD To install the assembly, unplug the machine from the power source, raise the cover, and then rotate the handle to the left (1, Fig. 7) to lower the standard TCT quill assembly as much as possible. Next, remove the handle, use pliers to remove the retaining rings (2), and then push out the shaft (3) by 16 mm (10/16’’), which will expel...

  • Page 15: Wiring Diagram

    PRO 36 AD HMPRO36AD OPERATOR’S MANUAL PRO 36 AD 5. WIRING DIAGRAM 5. WIRING DIAGRAM This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited. www.holemaker.com This document is protected by copyrights. Copying, using, or distributing without permission of PROMOTECH is prohibited.
  • Page 16 HMPRO36AD OPERATOR’S MANUAL HOLEMAKER ANNULAR CUTTER GUIDE Cutter Type Features Diameter Available Cut Depth Available Applications • M2AL High Speed Steel Silver Series Metric • Universal Shank • 12 to 60mm Metric • 25mm & 50mm • General Purpose • Multi-Cut Geometry •...

  • Page 17: Plastic Box 3

    HM PRO 36 AD ITEM PART NUMBER DESCRIPTION Q-TY SKR-000012 PLASTIC BOX PAS-000007 SAFETY STRAP 250 PLT-0378-15-00-00-0 PILOT PIN KLC-000007 4 MM HEX WRENCH PRD-000002 TORQUE STICK KLC-000048 RATCHET WRENCH 3-8...
  • Page 18 HM PRO 36 AD ITEM PART NUMBER DESCRIPTION Q-TY WKR-000098 HEX SOCKET BUTTON HEAD SCREW M5x16 PKR-0521-02-00-00-1 GEARBOX COVER KLK-000044 DOWEL PIN 5n6x10 KOL-0521-08-00-00-0 GEAR z63 ASSY PRS-000223 EXTERNAL RETAINING RING 25z TYPE A LOZ-000169 BALL BEARING 25x42x9...
  • Page 19 HM PRO 36 AD ITEM PART NUMBER DESCRIPTION Q-TY KOL-0521-08-01-00-0 GEAR z63 LOZ-000100 BALL BEARING 30x42x7 PRS-000021 EXTERNAL RETAINING RING 30z TYPE A SPR-000063 DISC SPRING fi27.99xfi21.74x0.3 WLK-0521-07-00-00-0 PINION SHAFT z16 z32 ASSY LOZ-000038 BALL BEARING 12x28x8 PDK-000221 WASHER 20x28x0.1 PDK-0521-13-00-00-0 SETTING WASHER SLN-0521-03-00-00-1...
  • Page 20 HM PRO 36 AD ITEM PART NUMBER DESCRIPTION Q-TY MDL-0378-14-04-00-4 ELECTRONIC MODULE SW=35A - 230V MDL-0378-14-04-00-3 ELECTRONIC MODULE SW=35A - 120V PDK-000041 SPRING WASHER 3.1 NKR-000009 HEX NUT M3 NKR-000040 STRAIN RELIEF NUT WLC-000006 START-STOP SWITCH - 120V WLC-000008 START-STOP SWITCH - 230V PNK-000013 POWER SWITCH WKR-000289...
  • Page 21 HM PRO 36 AD...
  • Page 22 HM PRO 36 AD ITEM PART NUMBER DESCRIPTION Q-TY WKR-000241 SELF-TAPPING SCREW 4x20 PKR-0440-03-02-00-0 MOTOR COVER WKR-000359 SCREW 3x13 PLY-0271-03-07-00-0 BRUSH HOLDER PRESSURE PLATE SCT-0271-03-06-00-0 BRUSH HOLDER SCZ-000008 MOTOR BRUSH 6x9x17 OBD-0272-03-01-01-1 STATOR HOUSING WKL-000001 BEARING INSERT 19x7.5 STN-000002 STATOR – 120V STN-000004 STATOR –...
