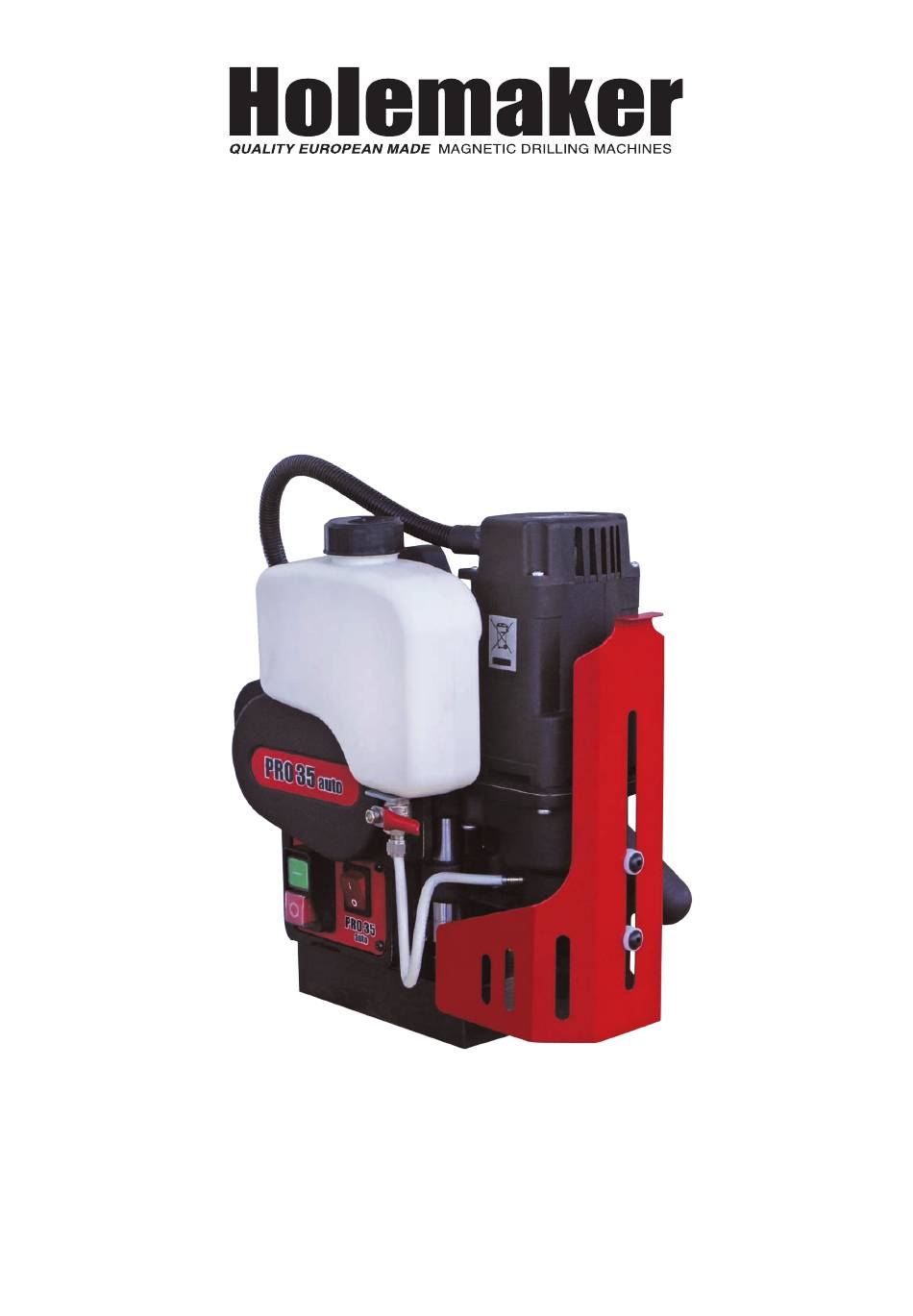

HOLEMAKER Pro 35 Auto Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DRILLING MACHINE
BEFORE USE, ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
Serial #............................................
Ver: 1.1
07/10/2015
PRO 35 AUTO
OPERATOR'S MANUAL
PART# HMPRO35AUTO
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL .
®
Date of Purchase............................

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro 35 Auto and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HOLEMAKER Pro 35 Auto

Summary of Contents for HOLEMAKER Pro 35 Auto

  • Page 1 ® PRO 35 AUTO DRILLING MACHINE OPERATOR’S MANUAL PART# HMPRO35AUTO BEFORE USE, ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL . Serial #..........Date of Purchase......Ver: 1.1 07/10/2015...
  • Page 2 HOLEMAKER PRO 35 AUTO DRILLING MACHINE PRODUCTS IMPORTED AND DISTRIBUTED NATIONALLY BY: INDUSTRIAL TOOL & MACHINERY SALES 18 BUSINESS ST, YATALA QLD 4207 T: 07 3287 1114 E: sales@industrialtool.com.au F: 07 3287 1115 W: www.industrialtool.com.au WARRANTY TERMS In addition to any warranties or conditions implied by applicable Statute or Regulations, Industrial Tool &...

  • Page 3: Table Of Contents

    HOLEMAKER PRO 35 AUTO DRILLING MACHINE TABLE OF CONTENTS GENERAL INFORMATION - 4 - 1.1. Application - 4 - 1.2. Technical data - 4 - 1.3. Design - 5 - 1.4. Equipment included - 6 - SAFETY INSTRUCTIONS - 6 -...

  • Page 4: General Information

    12–36 mm (0.47–1.42’’) to the maximum depth of 51 mm (2’’) The PRO 36 AUTO is a drilling machine with electromagnetic base designed to drill The PRO 35 AUTO is a drilling machine with electromagnetic base designed to drill holes through the use of annular cutters.

  • Page 5: Design

    cap, open the valve using the lever, and initially apply pressure on the pilot pin by rotating the spoke handles counterclockwise. The fluid should fill the system and GENERAL INFORMATION PRO 36 AUTO should begin flowing from the inside of the cutter. The cooling system works by means of gravitation, therefore use a cooling paste when working in horizontal or inverted positions .

  • Page 6: Equipment Included

    Electromagnetic base ON/OFF switch Motor STOP button Figure 2. Control panel design 1.4. Equipemnt included The PRO 35 AUTO is supplied in a metal box with complete standard equipment. The included equipment consists of: • 1x Drilling machine • 1x Metal box •...
  • Page 7 SAFETY INSTRUCTIONS 8. Untrained bystanders must not be present in the vicinity of the machine. 9. Before beginning, check the condition of the machine and electrical supply, including the power cord, plug, control panel components, and cutters. 10. Keep the machine dry. Exposure to rain, snow, or frost is prohibited. 11.

  • Page 8: Start Up And Operation

    described before and fill it with a cutting fluid. Do not use pure water as the cutting fluid, however, using emulsions formed from mixing water and drilling oil is also START UP AND OPERATION satisfactory. To check the operation of the cooling system, slightly loosen the bottle cap, open the valve using the lever, and initially apply pressure on the pilot pin by rotating the spoke handles counterclockwise.
  • Page 9 PRO 36 AUTO START UP AND OPERATION Figure 4 shows how annular cutters operate. As the cutter penetrates the workpiece, the pilot pin recesses into the arbor and tightens the spring. As a result, after the cutter goes Figure 4 shows how annular cutters operate. As the cutter penetrates the workpiece, through the entire thickness, the slug core is expelled from the cutter.

  • Page 10: Mounting And Dismounting The Cooling System Bottle

    The PRO 36 AUTO drilling machine incorporates a holding force control system to The PRO 35 AUTO drilling machine incorporates a holding force control system to monitor monitor the adhesion force of the electromagnetic base to the surface. The force the adhesion force of the electromagnetic base to the surface.

  • Page 11: Preparing

    preventing further drilling because of too low adhesion force. If the motor does not continue operation after the green MOTOR button is pushed and released, it means that the control circuit is operating properly and START UP AND OPERATION 3.4. Preparing preventing further drilling because of too low adhesion force.
  • Page 12 Figure 7. Securing the drilling machine using the safety strap PRO 36 AUTO START UP AND OPERATION When working in the position from Figure 7a, mount the cooling system bottle as Figure 7. Securing the drilling machine using the safety strap described before and fill it with a cutting fluid.

  • Page 13: Drilling

    Figure 7. Securing the drilling machine using the safety strap START UP AND OPERATION When working in the position from Figure 7a, mount the cooling system bottle as described before and fill it with a cutting fluid. Do not use pure water as the cutting fluid, however, using emulsions formed from mixing water and drilling oil is also 3.5.

  • Page 14: Replacing The Motor Brushes

    START UP AND OPERATION 3.6. Replacing the motor brushes 3.6. Replacing the motor bushes Check the condition of the carbon brushes every 100 operational hours. If the length of the brushes is less than 5 mm (0.2’’), replace them with new ones. To do this, Check the condition of the carbon brushes every 100 operational hours.
  • Page 15 NOTES...
  • Page 16 HOLEMAKER ANNULAR CUTTER GUIDE Cutter Type Features Diameter Available Cut Depth Available Applications Silver Series Metric • M2AL High Speed Steel • Universal Shank • 12 to 60mm Metric • 25mm & 50mm • General Purpose • Multi-Cut Geometry • Step Hardened Silver Series Imperial •...
