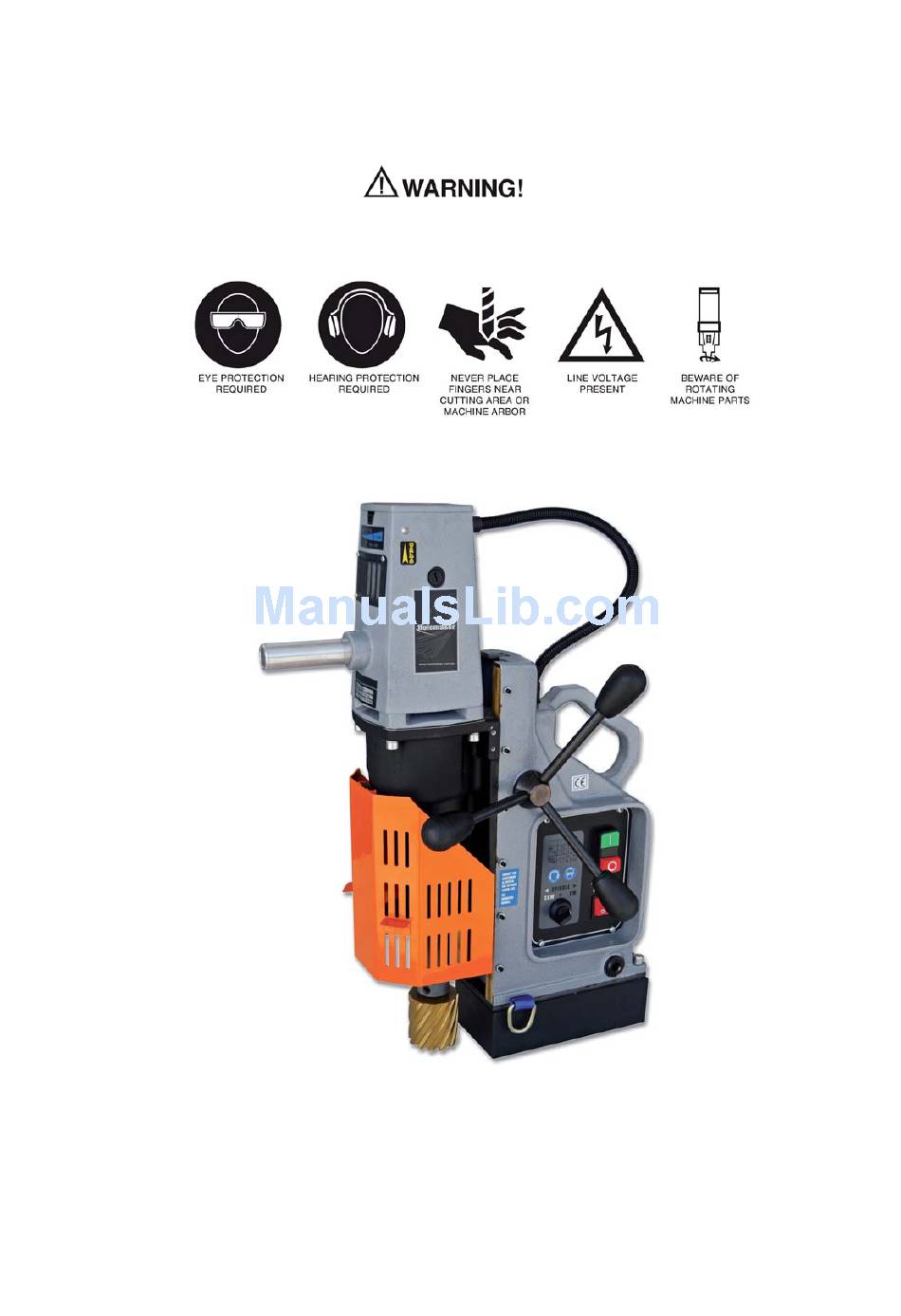

HOLEMAKER SM3X3
Holemaker Portable Magnetic Drilling Machine
OPERATOR'S MANUAL
BEFORE USE, ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL .
Serial #............................................
Date of Purchase............................................
Advertisement
Table of Contents
Related Manuals for HOLEMAKER Holemaker SM3X3
Summary of Contents for HOLEMAKER Holemaker SM3X3
- Page 1 HOLEMAKER SM3X3 Holemaker Portable Magnetic Drilling Machine OPERATOR’S MANUAL BEFORE USE, ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL . Serial #..........Date of Purchase..........
-
Page 2: Table Of Contents
Holemaker SM3X3 Portable Magnetic Drilling Machine IMPORTED & DISTRIBUTED BY INDUSTRIAL TOOL & MACHINERY SALES 18 BUSINESS ST YATALA QLD 4207 AUSTRALIA INDUSTRIAL TOOL 07 3287 1114 07 3287 1115 sales@industrialtool.com.au www.industrialtool.com.au WARRANTY TERMS In addition to any warranties or conditions implied by applicable Statute or Regulations, Industrial Tool &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WHEN USING EL ECTRICAL TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY . READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE. Keep Work Area Clean • Cluttered areas and benches increase risk of injuries. Consider Work Area Environment •... - Page 4 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 12. Maintain Tools With Care • Keep tools sharp and clean for better and safer performance. • Follow instructions for lubricating and changing accessories. • Inspect tool cords periodically and if damaged, have repaired by authorized service facility. •...
-
Page 5: Power Supply Requirement
If the cord or plug is damaged, have it repaired before using. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician. The Holemaker must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. -
Page 6: Technical Data
Insulation class ………………………………………………….. First Arbor bore ………………………………………………………. MT 3 Tool holder …………………………………. (3/4” Weldon) 19.05 mm Capacities: max. Holemaker cutter diameter …………..75mm max.drilling depth with standard arbor ……..75mm Magnet Dead Lift (on 25 mm plate) ………....... 19500 N Dimensions: electromagnetic base ….......... -
Page 7: Special Instructions
2. Remove any excessive mill scale or rust from surface to be drilled. 3. When drilling thin materials, it is recommended that you place a steel plate under the work piece and Holemaker magnet area to increase magnetic holding force. -
Page 8: Machine Operation
START UP AND OPERATION START UP AND OPERATION CAUTION: READ THE WHOLE INSTRUCTIONS MANUAL BEFORE ATTEMPTING TO START UP This drilling machine’s spindle has a 19mm Weldon Shank type and is specifically designed for use with Annular cutters. Annular cutter (1) is located inside arbor body (2) and is fastened with grub screws (3). When fastening the cutter in the arbour, ensure that the grub screws are firmly tightened to avoid them coming loose during operation. - Page 9 Before you cut Before positioning the machine on work piece always make sure that: - work piece is made of ferrous material - thickness of work piece is adequate for secure magnetic adhesion (mild steel - 10mm is recommended) - Ensure no part of magnet overhangs the steel workpiece - surface of steel under the magnet is flat - wipe, brush or sand down clean surface where you intended to place the drilling machine, so that you remove rust, paint, dirt etc which would reduce adhesive power of the electromagnetic base.
- Page 10 Cutting (continued) - Turn the motor on. Bring the cutter gently into contact with the work piece and slowly start to apply pressure on the cutter. Making a hole with an annular cutter should ideally be done in one pass. Do not peck drill.
-
Page 11: Maintenance And Service
MAINTENANCE AND SERVICE - Every 250 hours of work check condition of carbon brushes. If their length is less than 5 mm they should be replaced with new genuine brushes. After replacement, new brushes should be run-in without load for about 20 min. -
Page 12: Basic Troubleshooting
BASIC TROUBLESHOOTING 1. Magnetic base not holding securely • Material is too thin. • Surface of material being drilled must be free of chips, debris, rust and mill scale. • Does size of cutter exceed machine’s rated capacity? • Check magnet face for unevenness, nicks and burrs. 2. -
Page 13: Machine Parts Breakdown
MACHINE PARTS LIST... - Page 14 MACHINE PARTS LIST...
- Page 15 MACHINE PARTS LIST...
- Page 16 MACHINE PARTS LIST ITEM PART DESCRIPTION ITEM PART DESCRIPTION NUMBER NUMBER MT101 BODY 35609 HEX NUT SHORT M12 0151181 HEX NUT M5 35612 COOLANT CONTAINER WITH CAP 22109 HEX INSERT SCREW M5X25 35601 PLASTIC HOSE (FLEXIBLE) MT117 HEX SOCKET BOLT M6X25 056613 CONNECTOR 35106...
- Page 17 MACHINE PARTS LIST MACHINE PARTS LIST ITEM PART DESCRIPTION ITEM PART DESCRIPTION NUMBER NUMBER 04801 INTERNAL RETAINING RING 62W 04632-V2 ARMATURE 240V 04802 MOTOR SPINDLE 04544 BEARING BALL 8X22X7 UPRARM 04566 KEY WOODRUFF #606 04560 WASHER SPRING UPPER ARMA- TURE 04803 LOWER SPINDLE BEARING 35X62X14 04562...
- Page 18 WIRING DIAGRAM WIRING DIAGRAM...
