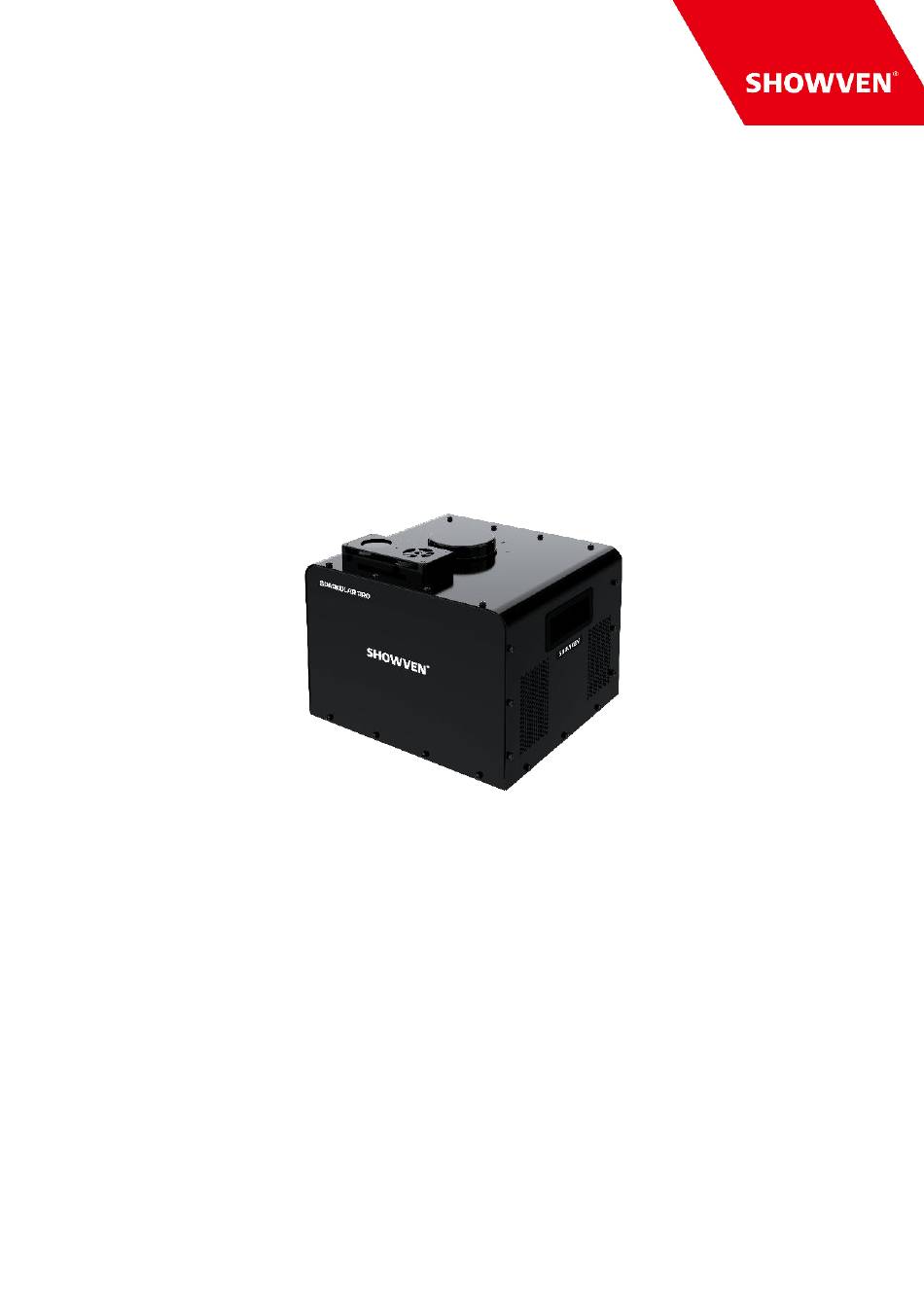

- Page 1 USER MANUAL SPARKULAR ® V2.1 2022/07/07 Showven Technologies Co., Ltd.
- Page 3 ® Thanks for choosing SPARKULAR PRO, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. ® SPARKULAR PRO is designed for outdoor installations, but please do NOT soak in water. ®...

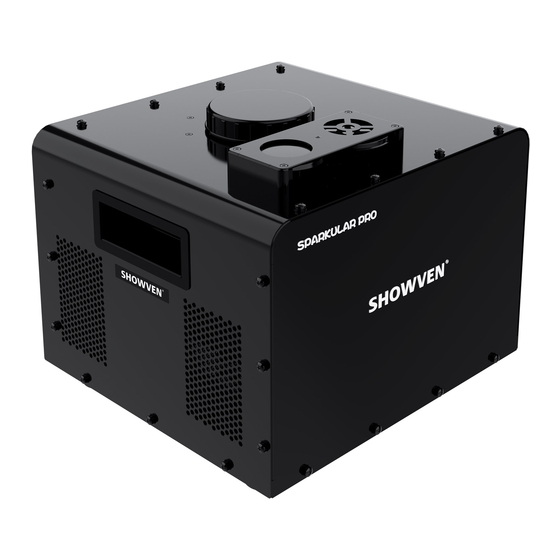

- Page 4 Description Δ ® ® SPARKULAR PRO is derived from SHOWVEN original SPARKULAR technology platform for outdoor installations and professional outdoor show market. IP55 rated weatherproof ® enclosure design allows SPARKULAR PRO works even in heavy rainfall. 1200g huge hopper design ensure long effects time after each filling up. It is an ideal choice for outdoor events, theme parks, projects installations etc.
- Page 5 ® Structure of SPARKULAR Δ Output nozzle cover Feeding Hopper lid LCD screen Power IN / Power OUT Service Hole Safety Loop 3-PIN DMX IN 3-PIN DMX OUT Diagram of bottom panel...
- Page 6 Operation Panel Δ READY DM X FAU LT HEAT READY: Flash means machine is preparing, LED keeps on means ready to work DMX: Flash means DMX signal is connected, light OFF means there is no DMX signal FAULT: Light ON when error occurs HEAT: Light ON when system is heating up 1.
- Page 7 3 seconds to return to the main interface Options Range Default Explanation Default is 580. Please don't change default value 580-620 Temperature without engineer’s suggestion from SHOWVEN. LCD Backlight ON/OFF LCD screen backlight ON/OFF Density 70-100 Sparks density Factory Factory mode is for engineer only.
- Page 8 6. DMX Control ® SPARKULAR PRO occupy 2 channels when use DMX. First channel Function 0-15 Firing OFF 16-39 Fountain Height 1 40-63 Fountain Height 2 64-87 Fountain Height 3 88-111 Fountain Height 4 112-135 Fountain Height 5 136-159 Fountain Height 6 160-183 Fountain Height 7 184-207...
- Page 9 Open powder bags and fill the feeding hopper. Hopper capacity of SPARKULAR PRO is 1200g. b) Make sure the powder is originally from SHOWVEN or SHOWVEN authorized distributor, other types of powder may block even damage the machine. c) Choose correct consumable according to the application scenario. SPARKULAR® PRO can only use HC8200 LARGE I, LARGE, MEDIUM and SMALL.
- Page 10 C N . 00000001 5. Programming and Firing ® a) Programming SPARKULAR PRO, set the firing height, firing sequences etc. b) Heating up, it takes around 5min. Heating time related with voltage and environment temperature. c) Make sure the prescribed safety zone is clear. d) Suggest to clear material before firing.
-
Page 11: Warranty Instructions
(except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor. - Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web:www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
