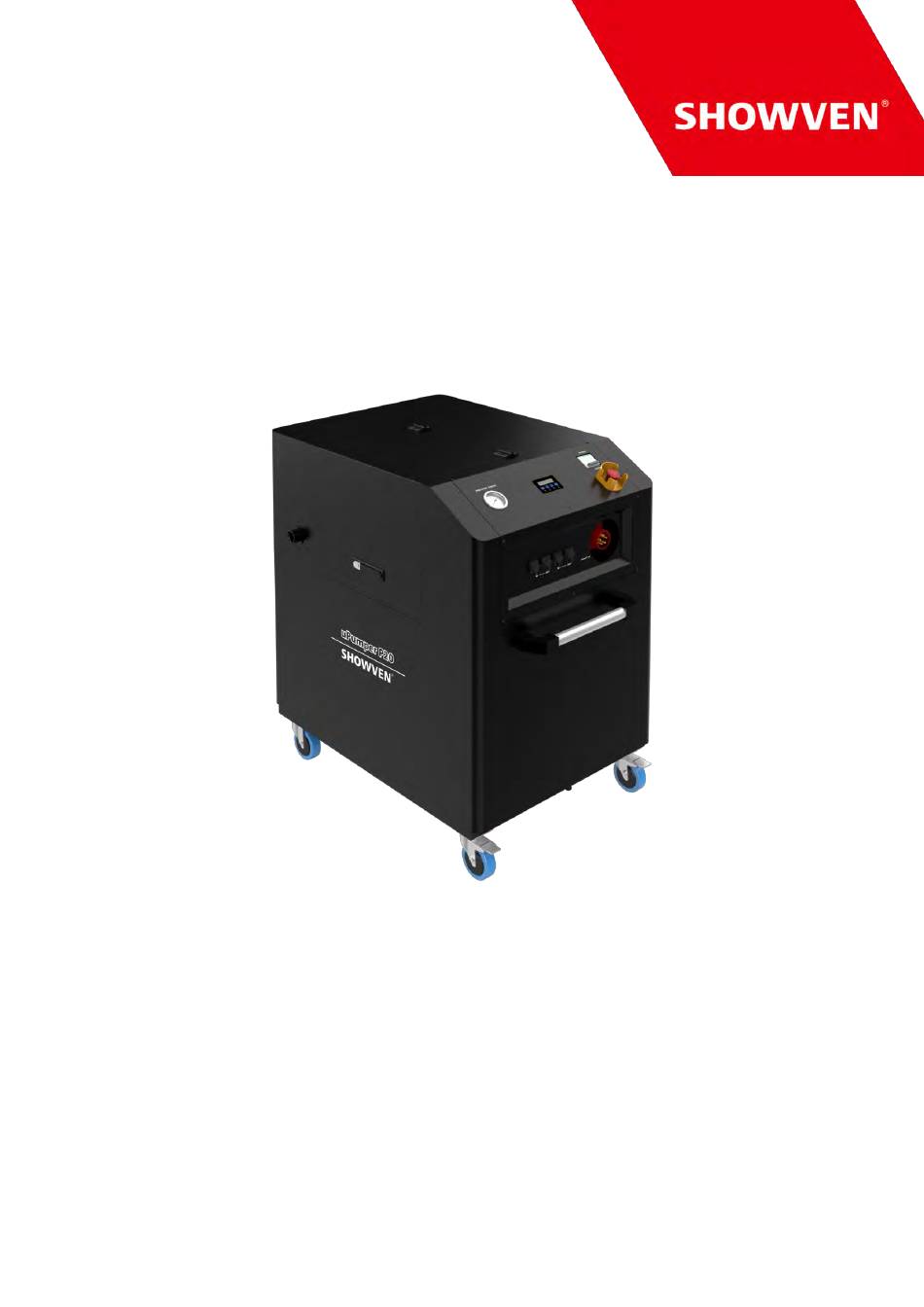

- Page 1 USER MANUAL uPumper P20 V1.0 2022.03 SHOWVEN Technologies Co., Ltd...
-
Page 2: Functional Characteristics
Do not smoke! The operator responsible for the control of uPumper P20 and flame head must always have a clear view of the device, so that he/she can stop the show immediately when there is danger. The main AC power switch should near operator. -
Page 3: Operation Panel
Input: AC 380V Tank Capacity: 250L Pressure Range: 1-2.5MPa adjustable (customizable up to 4.5MPa) Pump Output: 110L/min Work TEMP.: -20 Structure Δ Castor 2.Fuel Tank 3.Handle 4.3-pin and 5-pin XLR Power Input AC380V Manometer 7.LCD screen and Operation Panel Emergency STOP 3P Breaker 10.Cover 11.G 1¼... - Page 4 a LED Display Area RX: Radio receiving (reserved); DMX : DMX signal. Flash means DMX signal available, otherwise no DMX signal; ERR: Light on when there is an error; PUMP: Light on when pump is running. b Button Functions MENU: Switch interface to setup parameter; +: Parameter Up;...
- Page 5 0-300s Pressure relief count down time Run LOCK ON/OFF When Run Lock ON, need code to start machine i Control DMX Control uPumper P20 just occupy a single channel. Channel Value Function 0~49 Depressurize, pump OFF 50~200 Pressurize, pump ON...
- Page 6 Auto Control Press MENU enter setting interface, find Control Mode, select AUTO control. Machine start count down then Pump will start work after finish count down. Quick Operation Instructions Δ a) DMX Control Mode default Step Content Schematic diagram Remark The device use 3-phase 5-wire system for power supply (2.5 square wire diameter).
-
Page 7: Maintenance
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 8 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
