USER MANUAL
uPumper P20H
V1.0
2023/05/18
SHOWVEN Technologies Co., Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uPumper P20H and is the answer not in the manual?

Questions and answers

Summary of Contents for Showven uPumper P20H

  • Page 1 USER MANUAL uPumper P20H V1.0 2023/05/18 SHOWVEN Technologies Co., Ltd...
  • Page 2: Safety Instructions

    Thanks for choosing SHOWVEN Flame system, we wish it will bring you lots of exciting moments. Please read the following user’s manual and related product installation guide carefully before operating this system. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards.
  • Page 3: Technical Specifications

    Warning Fuel requirements for SHOWVEN flame system, for safety and long service life of flame system, please strictly follow below requirements. SHOWVEN technologies Co., Ltd excludes liability for unsafe situations, accidents and damages if not following below requirements.
  • Page 4: Operation Panel

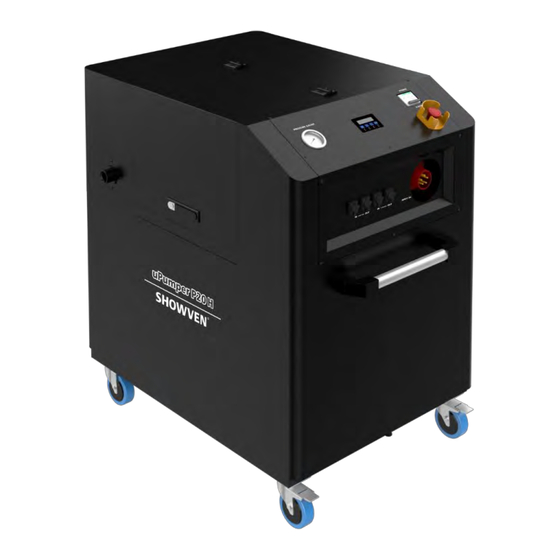

    Structure Δ Castor 2.Fuel Tank 3.Handle 4.3-pin XLR 5-pin XLR Power Input AC380 7.Pressure Gauge 8.LCD screen and Operation Panel Emergency STOP Power Switch (3P Breaker) 11.Cover 12.G 1¼ Quick Coupler for Fuel Outlet 13.Fuel Drainage WARNING: For better heat dissipate and ventilation, please open the cover of uPumper P20 when it is working. Operation Panel Δ...
  • Page 5 2. Button Functions MENU: Switch interface to setup parameter; +: Parameter Up; -: Parameter Down; ENTER: Confirm and save parameters (screen will flash when parameters saved) Note: screen display will switch to main interface if don’t press button in 15s. Welcome Interface P20H-230515 xxxxxxxxxxx...
  • Page 6 The time period when current pressure higher than low Sleep Time 1-10min 2min pressure exceed sleep time, pump stops running. 10. Control DMX Control uPumper P20H just occupy a single channel. Channel Value Function 0~49 Depressurize, pump OFF 50~200 Pressurize, pump ON...
  • Page 7 Δ WARNING: Install uPumper P20H in an open space with good ventilation and heat dissipation. The best ambient temperature is -10~+26 degrees (lower temperature is good for heat dissipation).please avoid sun exposure that causes temperature rise. It is strictly forbidden to use it in a closed environment.
  • Page 8: Maintenance

    Filling the fuel tank ISOPAR Wait a delay of 15s for startup, device performs Reset the E-stop key, pipeline pressure relief automatically (default Power ON the device pressure relief time is 30s), wait until the device enter main interface on LCD screen. Pump will working automatically to pressurize the pipeline system.
  • Page 9 1. Accumulator module flight case top plate 2. Accumulator module flight case bottom plate 3. Inner accumulator cover 4. Fuel input connector (Screw thread G1¼ , connect with uPumper P20H) 5. Output quick coupler (ISO7241B G1/4 quick coupler female, connect with uFlamer X20) 6. Pressure gauge...
  • Page 10 Operations Δ Open the flight case top plate and connect it to the pump station joint with the main hose1¼ DN32. Each joint connection is designed with a spherical end face seal (a hydraulic mechanical seal method), which needs to be tightened with a wrench to ensure the fuel seal is reliable. Use a branch hose 3/8 DN10 to connect to the female head of the fuel output quick coupler, and the other end of the branch hose is connected to the uFlamer X20.
  • Page 11: Warranty Instructions

    Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN...
  • Page 12 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
