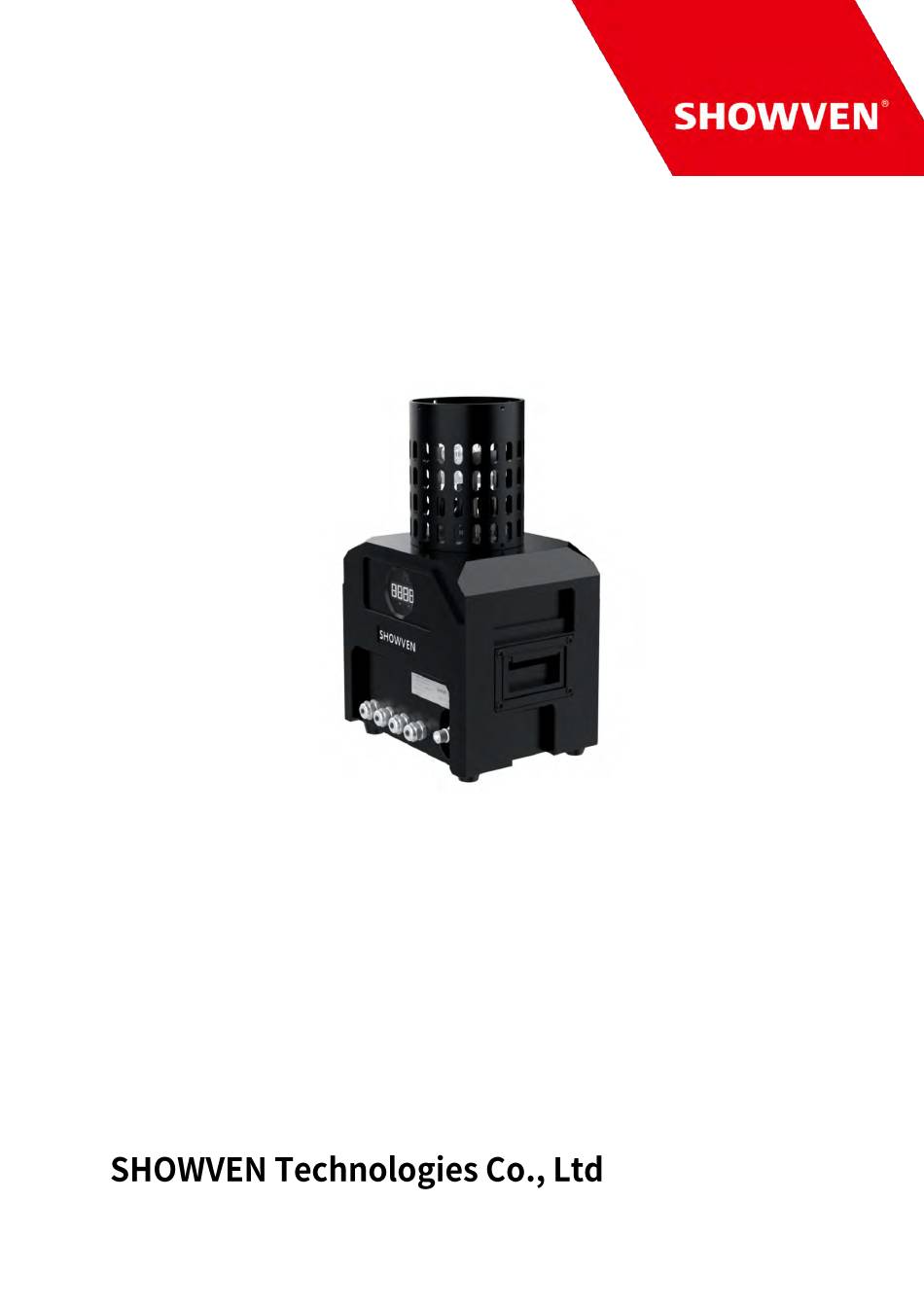

- Page 1 USER MANUAL uFlamer PF10 (VOLTAGE) V1.0 2022.05...
-
Page 2: Safety Distance
Thanks for choosing SHOWVEN uFlamer PF10, we wish it will bring you lots of exciting moments. Please read the following manual carefully before operating this product. Warning Δ This product is only suitable for qualified or skilled operators who has experience with the technology of the device and is particularly informed about the types of fuel used by the device. -
Page 3: Functional Characteristics
Functional Characteristics Δ IP67 rated waterproof, designed for outdoor installations Dual solenoid valve for extra safety Dual igniter ensure successful ignition Flames up to 10m Aluminum CNC machining structure Oxidation treated housing, durable for outdoor installation Built-in accumulator Technical Specifications Δ... -
Page 4: Installation
1. Flame chamber 2. Upper housing 3. Lower housing 4. Display panel 5. Quick coupler (ISO 7241B G1/4 male) 6. AC Power Input (BROWN: Live wire; BLUE: Neutral wire; Yellow: Ground wire), wire length 1m. 7. Waterproof connector EM20 3P 8. -
Page 5: Nozzle Replacement
Installation schematic (uPumper P4) Control Δ Direct ON-OFF voltage control Power Supply Function Firing Jet valve open, Igniter ON Standby Nozzle Replacement Δ Use 14mm outer hexagon socket wrench to disassemble the nozzle, clean the nozzle and nozzle socket with air gun (air compressor), change a different nozzle and install it. Nozzle disassemble tool: SFMET944 Ignitor Position Adjustment Δ... -
Page 6: Maintenance
Note: Do unplug the power cable when service flamer. Maintenance Δ 1. To maintain the system in good performance and running status, it is recommended to running the device at least once per month. 2. Maintenance of the nozzle: Nozzle needs to be cleaned from time to time, and it is recommended that once every six months (depending on the environment and frequency of use). -
Page 7: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 8 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
