Summary of Contents for BAFANG DP E161.CAN

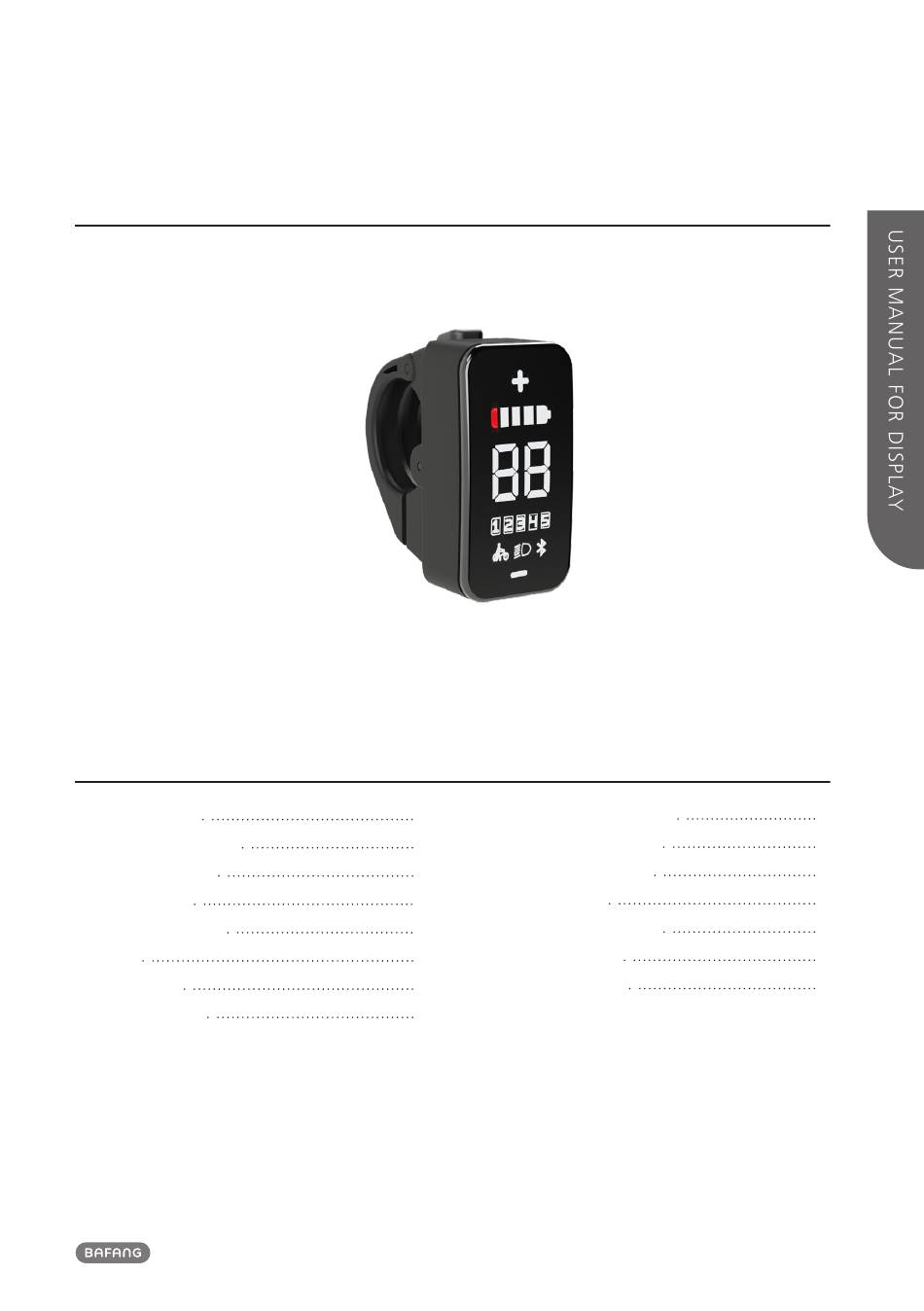

  • Page 1: Table Of Contents

    7 USER MANUAL FOR DP E161.CAN CONTENT 7.1 Important Notice 7.6.1 Switching the System ON/OFF 7.2 Introduction of Display 7.6.2 Selection of Support Levels 7.3 Product Description 7.6.3 Headlights / backlighting 7.6.4 Walk Assistance 7.3.1 Specifications 7.6.5 Battery Capacity Indication 7.3.2 Functional Overview...
  • Page 2: Important Notice

    • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP E161.CAN BUS • The label marking is as follows: • The housing material is PC+ABS and acrylic, as following: Note: Please keep the QR code label attached to the display cable.
  • Page 3: Product Description

    7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Battery capacity indicator • Operating temperature: -20℃~45℃ • Indication of support level • Storage temperature: -20℃~50℃ • Walk assistance • Waterproof: IP65 • Automatic sensors explanation of the light- • Storage room Humidity: 30%-70% RH ing system •...
  • Page 4: Display

    7.4 DISPLAY Battery capacity indicator Speed indicator Support level indicator Walk assistance Indicator for lighting system Bluetooth indicator 7.5 KEY DEFINITION E161 Display has three buttons: System On/Off , Up and Down System On/Off Down BF-UM-C-DP E161-EN November 2019...
  • Page 5: Normal Operation

    7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF 7.6.3 Headlights / backlighting Press and hold (>2S) on the display to Hold the (>2S) button to activate the turn on the system. headlight and taillights. Press and hold (>2S) again to turn off Hold the (>2S) button again to turn off the system.
  • Page 6: Battery Capacity Indication

    When the mobile phone is connected to the display by Bluetooth, the Bluetooth symbol will be displayed, and the disconnected symbol will disappear automatically. This display can be connected to the Bafang Go APP through Bluetooth. More information can be viewed on the APP, such as the information of battery, remaining capacity, single-trip distance.
  • Page 7: Error Code Definition

    7.7 ERROR CODE DEFINITION DP E161.CAN display can provide warning for failures. The error code flickers when an error is detected. Note: please read carefully the description of the error code. When the error code appears, please first restart the system. If the problem is not eliminated, please contact your dealer or technical personnel.
  • Page 8 Error Declaration Troubleshooting 1. Turn off the system and let the pedelec cool The protection temperature inside down. the controller has reached its maxi- 2. If the problem persists, please contact your mum protection value retailer. Error with the temperature sensor Please contact your retailer.
  • Page 9 Error Declaration Troubleshooting Detection circuit for 15V has an error Please contact your retailer. Detection circuit on the keypad has Please contact your retailer. an error WDT circuit is faulty Please contact your retailer. Total voltage from the battery is too Please contact your retailer.
