BAFANG DP E170.CAN User Manual
Hide thumbs Also See for DP E170.CAN:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP E170.CAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BAFANG DP E170.CAN

  • Page 1 7 USER MANUAL FOR DP E170.CAN CONTENT 7.1 Important Notice 7.6 Normal Operation 7.2 Introduction of Display 7.6.1 Switching the System ON/OFF 7.3 Product Description 7.6.2 Selection of Support Levels 7.3.1 Specifications 7.6.3 Headlights / backlighting 7.3.2 Functional Overview 7.6.4 Battery Capacity Indication 7.4 Display Information...

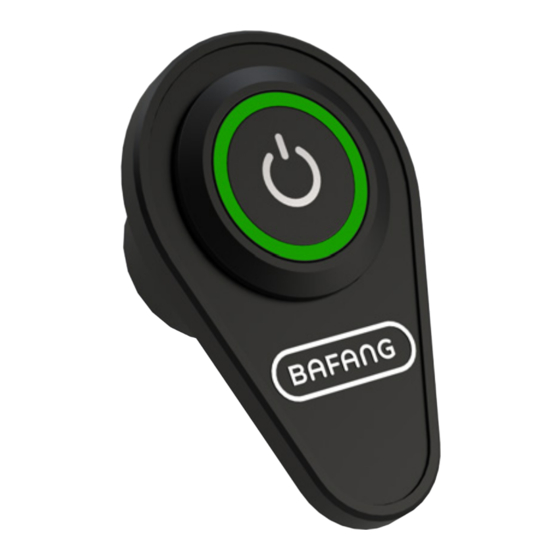

  • Page 2 • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP E170.CAN • The label marking is as follow: Note: Please keep the QR code label attached to the display cable. The information from the Label is used for a later possible software update.
  • Page 3 The RGB light flashes at a frequency of 1Hz. 7.5 KEY DEFINITION DP E170.CAN has a single button, which achieves to power on and off the machine, select the support levels, and switch on and off the headlight. BF-UM-C-DP E170-EN November 2019...
  • Page 4 7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF 7.6.3 Headlights / backlighting Press and hold (>2S) on the display to ON: Double click when the light is off, turn on the system. and the controller will turn on the lights. Press and hold (>2S) again to turn off OFF: Double click...
  • Page 5 7.7 ERROR CODE DEFINITION The display can show the errors of a pedelec. When the fault is detected, the RGB lights will flash at a frequency of 1 Hz. The flashing blue light indicates the tens digit of the error code, while the flashing cyan light indicates the unit digit.
  • Page 6 Error Declaration Troubleshooting 1. Allow the pedelec to cool down and restart the The protection temperature system. inside the controller has reached 2. If the problem still occurs, please change the its maximum protection value controller or contact your supplier. Error with the temperature Please contact your retailer.
  • Page 7 Error Declaration Troubleshooting Controller WDT circuit is faulty Please contact your retailer. Sensor WDT circuit is faulty Please contact your retailer. Total voltage from the battery is Please contact your retailer. too high Total voltage from the battery is Please contact your retailer. too low Total power from the battery Please contact your retailer.
