Page 1: Table Of Contents
7 USER MANUAL FOR DP E08.CAN CONTENT 7.1 Important Notice 7.6 Normal Operation 7.2 Introduction of Display 7.6.1 Switching the System ON/OFF 7.3 Product Description 7.6.2 Selection of Support Levels 7.3.1 Specifications 7.6.3 Headlights / backlighting 7.3.2 Functions Overview 7.6.4 Walk Assistance 7.4 Display... -
Page 2: Important Notice

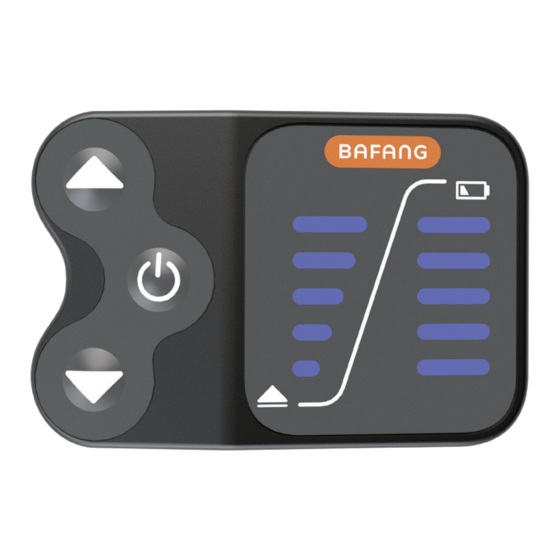

• Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP E08.CAN BUS • The label marking is as follows: • The housing material is PC, as following: Note: Please keep the QR code label attached to the display cable. -
Page 3: Product Description
7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Battery capacity indicator • Operating temperature: -20℃~45℃ • Indication of performance support • Storage temperature: -20℃~50℃ • Walk assistance • Waterproof: IP65 • Automatic sensors explanation of the light- • Storage room Humidity: 30%-70% RH ing system •... -
Page 4: Normal Operation
7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF Press and hold (>2S) on the display to turn on the system. Press and hold (>2S) again to turn off the system. 7.6.2 Selection of Support Levels When the display is turned on, press the (<0.5S) button to switch to the support level, the lowest level is 1, the highest level is 5. -
Page 5: Walk Assistance
7.6.4 Walk Assistance The Walk assistance can only be activated with a standing pedelec. Activation: Briefly press continuously until to level 0. At this point, briefly press again and the indicator of the highest level will start to flash, then press and hold (>2S), the level indicator will flash successively from 1st to 5th. -
Page 6: Error Code Definition
7.7 ERROR CODE DEFINITION The display can show the errors of a pedelec. When the fault is detected, the error code will be displayed through the level indicator in flashing. Level 1 indicates the Level 2 tens digit of an error code while level 2 indicates the units digit. For example: Level 1 1) Error code 04 The LED indicator for level 1 does not light, and level 2 flickers for 4 times. - Page 7 Error Declaration Troubleshooting Error with the temperature sensor Please contact your retailer. inside of the battery 1. Turn off the system and let the pedelec cool The protection temperature inside down. the controller has reached its maxi- 2. If the problem persists, please contact your mum protection value retailer.
- Page 8 Error Declaration Troubleshooting 1. Check all connectors. Brake signal has an error 2. If the error continues to occur, please con- (If brake sensors are fitted) tact your retailer. Detection circuit for 15V has an error Please contact your retailer. Detection circuit on the keypad has Please contact your retailer.
