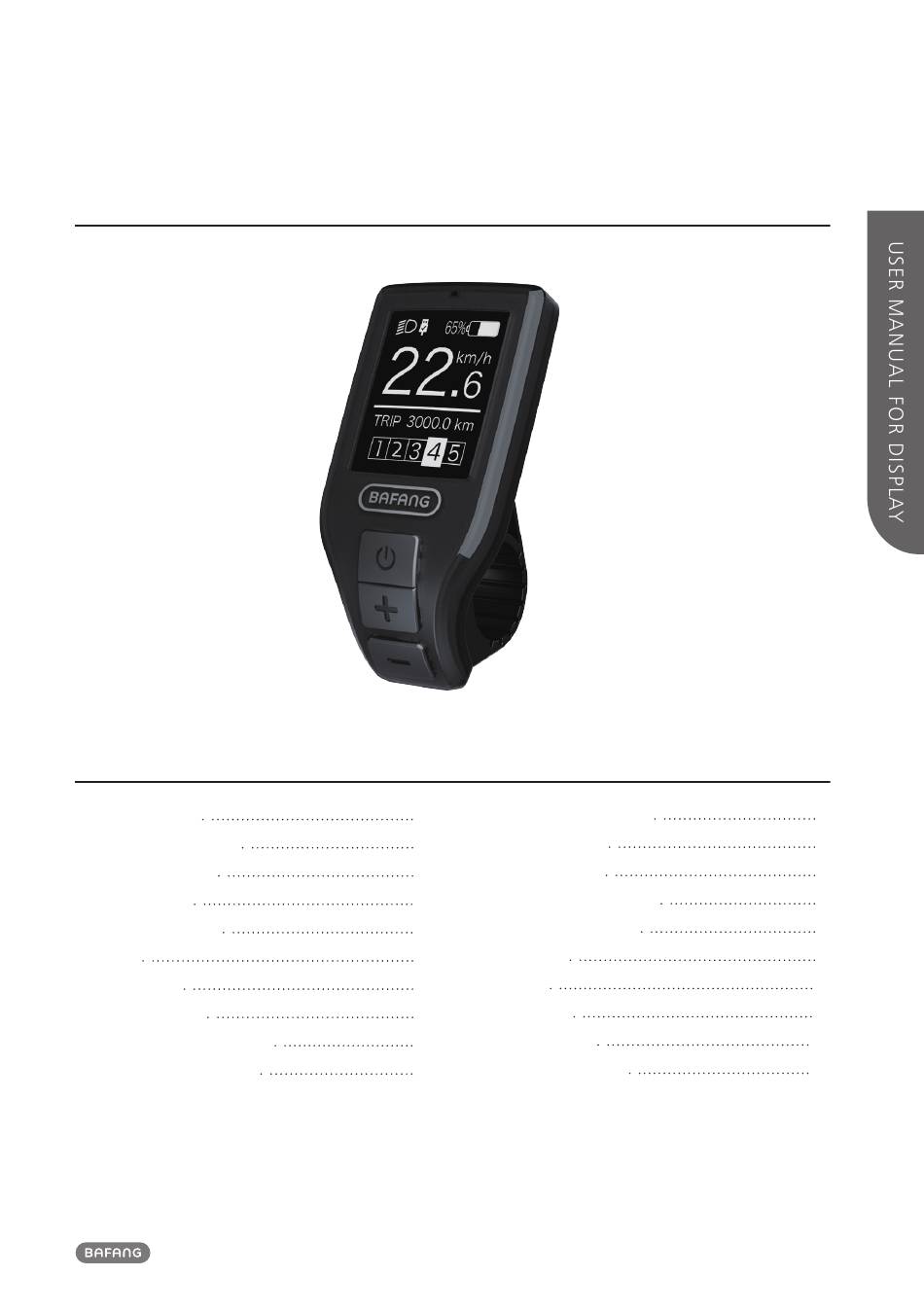

7 USER MANUAL FOR
DP C230.CAN
CONTENT
BF-UM-C-DP C230-EN November 2019
2
2
3
3
3
4
4
5
5
5
1
5
6
6
7
7
7
8
8
10
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP C230.CAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BAFANG DP C230.CAN

Summary of Contents for BAFANG DP C230.CAN

  • Page 1: Table Of Contents

    7 USER MANUAL FOR DP C230.CAN CONTENT 7.1 Important Notice 7.6.3 Headlights / backlighting 7.2 Introduction of Display 7.6.4 Walk Assistance 7.3 Product Description 7.6.5 Selection Mode 7.6.6 Display of battery capacity 7.3.1 Specifications 7.6.7 USB charging function 7.3.2 Functions Overview 7.4 Display...

  • Page 2: Important Notice

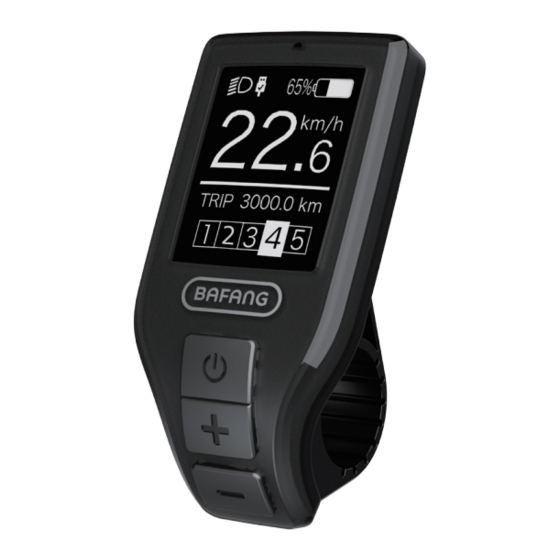

    • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP C230.CAN BUS • The label marking is as follows: • The housing material is PC; the Display Glass...

  • Page 3: Product Description

    7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Speed display (including top speed and • Operating temperature: -20℃~45℃ average speed, switching between km and • Storage temperature: -20℃~50℃ miles). • Waterproof: IP65 • Battery capacity indicator. • Bearing humidity: 30%-70% RH •...

  • Page 4: Display

    7.4 DISPLAY The display shows this symbol, if the light is on. USB charging indicator displays the icon , if an external USB device is connected to the display. Speed display in real time. Trip: Daily kilometers (TRIP) - Total kilometers (ODO) - Top speed (MAX) - Average speed (AVG) - Range (RANGE) - Output power (POWER) - Energy Consumption (CALORIES) -...

  • Page 5: Normal Operation

    7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF Press and hold (>2S) on the display to turn on the system. Press and hold (>2S) again to turn off the system. If the "automatic shutdown time" is set to 5 minutes it can be set with the "Auto Off" function See "Auto Off", the display will automatically be turned off within the desired time when it is not in operation.

  • Page 6: Walk Assistance

    7.6.4 Walk Assistance The Walk assistance can only be activated with a standing pedelec. Activation: Press the button until this symbol appears. Next hold down the button whilst symbol is displayed. Now the Walk assistance will activate. The symbol will flashes and the pedelec moves approx.

  • Page 7: Display Of Battery Capacity

    7.6.6 Display of battery capacity The indicator displays the capacity in real time, when battery is fully charged, it shows 100%, if it is less than 5%, then the outline of indicator will flash, that means the battery needs to be charged immediately.

  • Page 8: Settings

    7.7 SETTINGS 7.7.1 “Setting” After the display is turned on, press the button (>2S) synchronously, to Press the button (<0.5S) to select access the “SETTINGS” menu. By pressing "Setting", and then briefly press the button (<0.5S) , you can select: button (<0.5S) to access the following Setting, Information or EXIT.
  • Page 9 7.7.1.3 “Sensitivity” Automatic Headlight press the button (<0.5S) to save and exit sensitivity to the "Setting" interface. Press the (<0.5S) button to high- light “Sensitivity” in the Setting menu, and then press (<0.5S) to select. Then with button choose between "0" / "...

  • Page 10: Information

    7.7.2 “Information” 7.7.2.2 Battery Information Press the button (<0.5S) to Once the system is turned on, Press the highlight “Battery Info.” in the Information button (>2S) synchronously, to menu, and then press (<0.5S) to select. access the "SETTINGS" menu. Press Press the button (<0.5S) to view button (<0.5S) to select "Information", and...
  • Page 11 7.7.2.3 Controller Information 7.7.2.5 Torque Information Press the button (<0.5S) to Press the button (<0.5S) to high- highlight "Ctrl Info", and then press the light "Torque Info", and then press the button (<0.5S) to confirm. Once you have (<0.5S) button to confirm. Once you have viewed your desired information press the viewed your desired information press the button(<0.5S) to exit to the "Informa-...

  • Page 12: Error Code Definition

    7.8 ERROR CODE DEFINITION The display can show the errors of a pedelec. If an error is detected, the error code appears on the display and one of the following error codes will be displayed. Note: Please read the description of the error code carefully. If you see the error code, restart the system first. If the problem is not resolved, please contact your dealer.
  • Page 13 Error Declaration Troubleshooting 1. Turn off the system and let the pedelec cool The protection temperature inside down. the controller has reached its maxi- 2. If the problem persists, please contact your mum protection value retailer. Error with the temperature sensor Please contact your retailer.
  • Page 14 Error Declaration Troubleshooting Detection circuit for 15V has an error Please contact your retailer. Detection circuit on the keypad has Please contact your retailer. an error WDT circuit is faulty Please contact your retailer. Total voltage from the battery is too Please contact your retailer.
  • Page 15 BF-UM-C-DP C230-EN November 2019...
  • Page 16 BF-UM-C-DP C230-EN November 2019...
