socomec COUNTIS M43 Quick Start Manual

COUNTIS M43 三相多功能导轨式电能表
THREE PHASE DIN RAIL ENERGY METER CT CONNECT

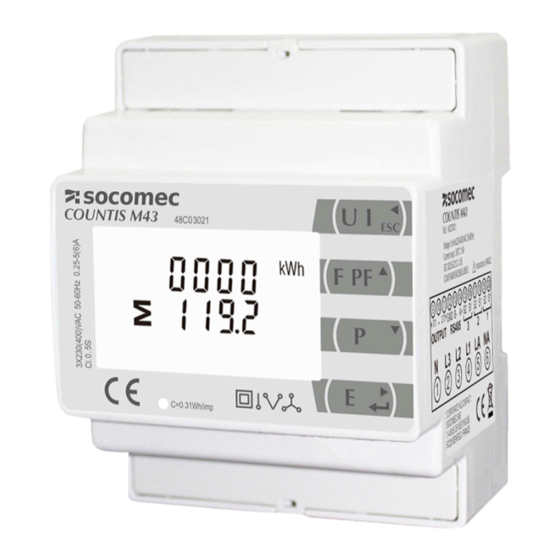

COUNTIS M43:
ref.48C03021
产品概述
This document provides operating, maintenance and installation instructions of
COUNTIS M43. The unit measures and display the characteristics of 1P2W,3P3W,
3P4W's application. It provides voltage, current, power, frequency, power factor
and energy etc. It is a 1A or 5A current transformer operated and can be configured
to work with a wide range of CTs. COUNTIS M43 provides two pulse outputs and 1
remote communication port.
此手册为用户提供了COUNTIS M43的操作,维护和安装说明。导轨式多功能仪
表COUNTIS M 4 3测量并显示单、三相电网中的各种电力参数。COUNTIS M43可测量电压，
电流，功率，频率，功率因素,有功电量,无功电量,正向电量,反向电量等。
COUNTIS M43采用CT式接入。COUNTIS M43配备2路无源脉冲输出,另带1路RS485通
讯接口,可实现远程通讯。
技术规格参数
技术规格
2.1
General Specifications
Voltage AC(Un) 额定电压 3x230/400VAC
Voltage Range 工作电压范围
80%~120% of Un
Primary Current 一次侧电流 1-9999A
Second Current 二次侧电流 1A or 5A
Power Consumption 功耗 ＜2W/10VA
频率
Frequency 50/60Hz
AC voltage withstand 交流耐压
4KV/1分钟
Impulse Voltage Withstand 脉冲耐压 6KV-1.2uS
Over current withstand 短时过流
30Imax for 0.01s
Pulse Output 2 脉冲2 3200imp/kWh (non-configurable 不可调）
Pulse Output 1 脉冲1 1000/100/10/1 total kWh/kVarh
(configurable可调)
Display 显示 LCD with white backlit LCD 带背光
Max.Reading 最大读数 9999999.9 kWh
2.3 Environment 环境
Operating temperature 工作温 度
Storage and transportation temperature 存 储温 度
Reference temperature 额定 工 作 温度
Relative humidity 湿 度
Altitude 使 用海 拔
Mechanical environment 机械 环境 等 级
Electromagnetic environment 电 磁环 境等级
Degree of pollution 污染等级
2.4 Mechanics
Din rail dimensions 尺 寸
Mounting 安 装
Material 材 质
Terminal capacity current paths (F lexible):
电流 端口 接入 线 缆 规格(推 荐 使 用柔 性) :
Terminal capacity COM and Pulse (Flexible):
通讯 及脉 冲端 口 接 入线 缆规 格(推荐 使用 柔 性):
Max tightening torque 最大 扭力:
3. Display 显 示
Initialization Display
When it is powered on, the meter will initialize and do self-checking.
正确接线后，接通电源，该仪表为初始化显示并做自检.
Quickstart 548622
4. Button Function
F PF
Setting by button
To get
into
Set-up Mode, the user needs to press the "Enter " button
for 3 second. Below parameters can be set via the buttons.
通过长按此按键3秒进入设置模式，可设置以下参数：
-25℃ to +55℃
-40℃ to +70℃
23℃±2℃
0 to 95%
2000m
M1
E2
2
机 械参 数
72x94.5x65 (WxHxD) DIN 43880
DIN rail 35mm 导 轨安 装
self-extinguishing UL94V-0自熄性材料
1-2.5mm2
1-2.5mm2
0.5-2.5mm2
0.5-2.5mm2
0. 4Nm
初始化显示
Full screen 全屏显示
It will last for 3 seconds.持续3秒
Software version 软件版本号，
以实际显示版本号为准
Self-test passes 表自测通过
按键 功 能
Selects
V and A display screen. 查看电压、电流
In Set-up Mode, it is the "Left" or "Back" button
设置模式下为"向左"或者"返回"按键
Selects
Hz and
PF display screen. 查看频率、功率因素
In Set-up Mode, it is the "Up" button
设置模式下为"向上"（增加数值）按键
Selects
power display screen. 查看功率
In Set-up Mode, it is the "Down" button
设置模式下为"向下"（减少数值）按键
Selects
energy display screen. 查看电量
In Set-up Mode, it is the "E n t e r " or " R i g h t " button.
设置模式下为"进入" 或" 向右"(移动光标)按键
按键设置
Change Password 修改密码
Modbus ID 表地址: 001~247
Baud rate.波特率;2.4k,4.8k,9.6k,
19,2k,38.4k
Parity 校验位
Default 默认: Non e
可选 ：None, Even, Odd
Stop bits 停止位
可选 ：1 / 2
CT 2 secondary current CT2
Option 可选 :5 A / 1A
CT Ratio CT 变比
Option 可设置范围 : 0001-9999A
PT 2 secondary PT
Option 可选 :100-500 V
PT Ratio PT 变比
Option 可设置范围 : 0001-9999
Pulse Output 1 脉冲类型
Option 可选 :kWh (默认) / KVarh
Pulse Constant 脉冲常数
Option 可选 : dFt (2.5Wh/Varh)/0.01/0.1/1/
10/100/1000
It shows 1 pulse=10kWh/kVarh
左图举例1 pulse=10kWh/kVarh
Pulse duration 脉冲宽度
Option: 200 / 100 ( 默认 ) / 60ms
Demand Integration Time 需量时间
Default (默认) : 15 minutes
Option 可选 : off(0) / 5 / 8/10 / 15 / 20/30 /
60
Backlit lasting time set-up 背光时间
Default 默认: 60 min
Option 可选: 0(off)/ 5/ 10/ 30/ 60/120
Supply System 电网类型
Option 可选: 3P4（W) /3P3(W) /1P2(W)
Clear Max demand of active power
最大有功需量
Clear the resettable energy kWh / kVarh
可清零有功电量/无功电量
