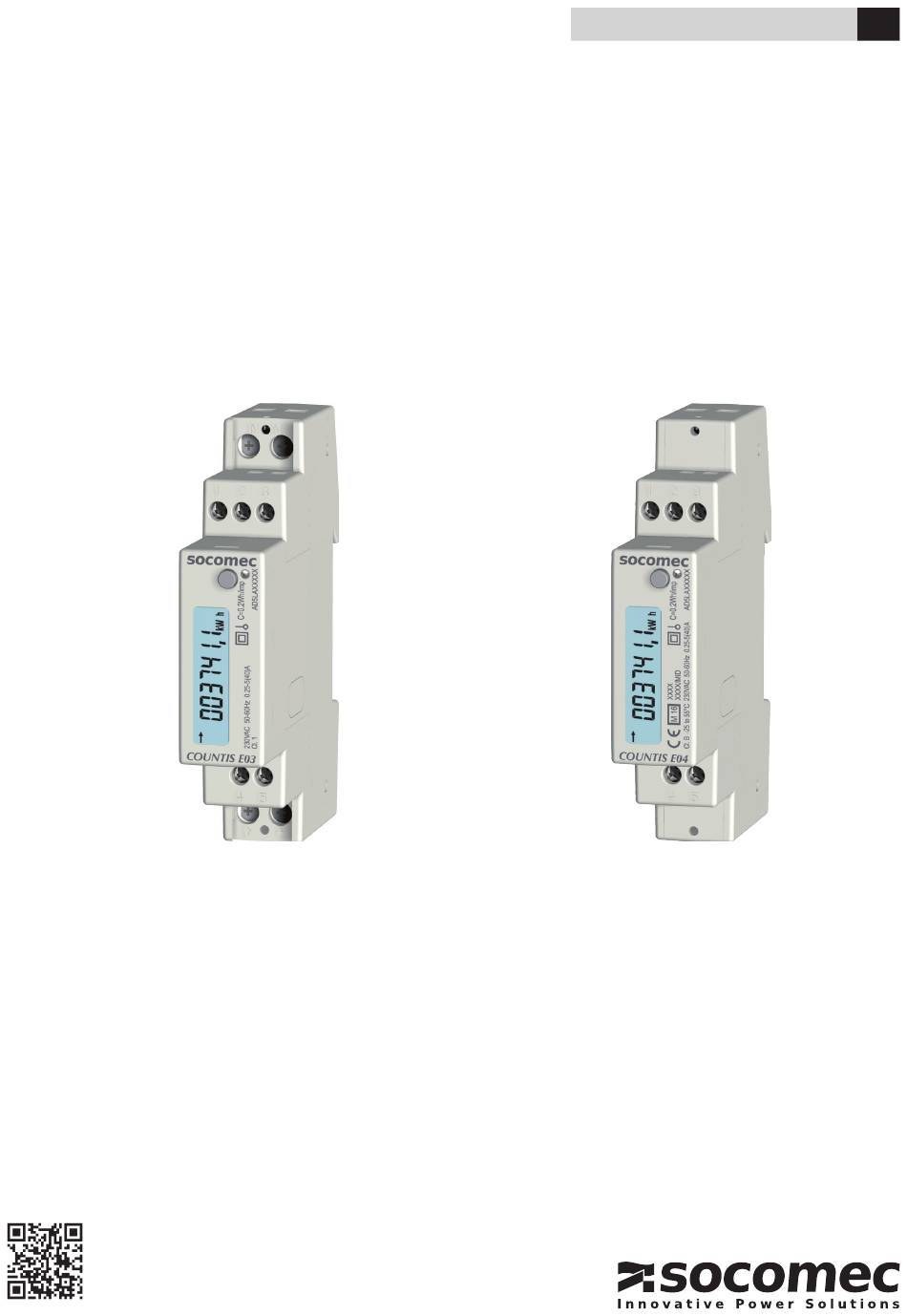

- Page 1 INSTRUCTION MANUAL COUNTIS E03/E04 Single-phase energy meter Direct - 40 A Modbus COUNTIS E03 COUNTIS E04 - MID www.socomec.com/en/countis-e0x...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 3: Documentation
1. DOCUMENTATION All documentation on the COUNTIS E03 / E04 is available online at: www.socomec.com/en/countis-e0x COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 4: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E04) - 1 Quick Start guide COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 6: Introduction

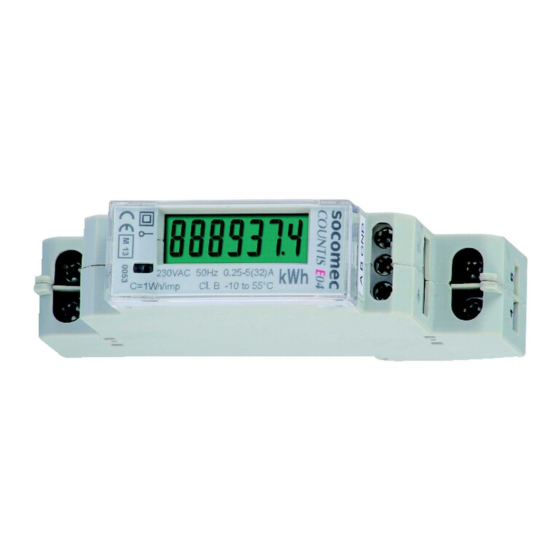

4.1. Introducing the COUNTIS E03 / E04 The COUNTIS E03 and E04 are modular active and reactive electrical energy meters that display consumed energy. They are designed for single-phase networks and allow a direct connection of up to 40 A. They are equipped with a Modbus communication bus. -
Page 7: Lcd Display
5. Value of the partial meter Flashing = meter stopped 6. Active communication 7. Inductive value 8. Imported ( ) or exported ( ) energy or power 9. Capacitive value 10. Unit of measure 4.5. Dimensions Dimensions: in/mm 0.71 0.24 1.73 2.52 COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 8: Electrical Readings
Partial active and reactive energy Ea, Er kWh, kvarh ● ● Partial apparent energy kVAh ● Miscellaneous Current tariff ● ● Partial meters START/STOP ● Active / inac- Status of the pulse output ● ● tive COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounting The COUNTIS E03/E04 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 10: Connection
4.5 lb.in / 10.62 lb.in / 0.5 Nm max. 1.2 Nm max. 6.2. Connection to the electrical network and to the loads The COUNTIS E03/E04 are intended for single-phase networks with neutral. COM RS485 MODBUS Modbus 1: + 2: - 3: NC (not connected). -
Page 11: Mid Compliance
The information provided via the RS485 COM is transmitted for information only and has no legal value. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e0x safety sealing COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 12: Communication
8. COMMUNICATION 8.1. General information The Modbus communication available on the COUNTIS E03/04 communicates via an RS485 series link (2 or 3 wires) which is used to operate devices from a PC or an API. In a standard configuration, an RS485 connection is used to connect 32 products to a PC or a controller over 1200 metres. -
Page 13: Communication Structure
To comply with the modbus protocol, the inter-character time must be ≤ 3 silences. This means the time for 3 characters to be emitted so that the message is processed by the COUNTIS E03/E04. In order to use the information correctly, you must use the modbus functions in accordance with the codes: •... -
Page 14: Configuration
9. CONFIGURATION The device can be configured directly from the COUNTIS E03/E04 screen in programming mode or via the communication link. The paragraphs below describe configuring using the screen. 9.1. On-screen configuration From the screen, go to programming mode to change your communication settings. How to browse through the... -
Page 15: Detailed View Of Menu "Setup
Communication speed 2400, 4800, 9600, 19200, 38400 Communication parity n = no o = odd E = even Reset energy Ea+ partial; Ea- partial; Eap partial; Er+ partial; Er- partial Back to first screen of "SETUP" menu COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 16: Example: Setting The Communication Address
In "SETUP" mode (see page 14), go to the "Addr communication address" screen Example: changing the communication address to 247. >3 sec >3 sec >3 sec >3 sec >3 sec Communication speed Communication parity Reset partial energy to zero XX = default value COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 17: Use
Total imported reactive >3 sec reactive energy energy ______________ Active and reactive power ______________ Voltage ______________ Current ______________ Power factor ______________ Frequency ______________ Set-up? ______________ Firmware version ______________ Checksum of firmware ______________ Installed communication port COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 18: Detailed View Of The Main Menu
Total imported active energy Set-up? description in chapter 10 .1 .1 Total exported active energy Firmware version Total imported reactive energy Checksum of firmware description in chapter 10 .1 .1 Active power Installed communication port Reactive power COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 19: Detailed View Of The Partial Energy Meter
Total imported reactive energy 10 .1 .2 . Starting up the partial energy meter >3 sec >3 sec >3 sec 10 .1 .3 . Stopping the partial energy meter >3 sec >3 sec >3 sec COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 20: Resetting The Partial Energy Meter To Zero
10 .1 .4 . Resetting the partial energy meter to zero >3 sec >3 sec COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 21: Diagnostics Messages
• When messages with the code xx are displayed, the meter has malfunctioned and must be replaced. 12. ASSISTANCE Causes Solutions Device not working Check the neutral and phase cable connections Error message Check the meter is working OK COUNTIS E03/E04 - 545865A - SOCOMEC... -
Page 22: Characteristics
Total and partial reading MID metering Bidirectional with single-phase Resolution 10 Wh, 10 varh ENERGY ACCURACY Class B (EN 50470-3) E04 Active energy Ea+ Class 1 (EN 62053-21) Reactive energy Er+ Class 2 (EN 62053-23) COUNTIS E03/E04 - 545865A - SOCOMEC... - Page 23 Load unit SAVING Energy registers In the EEPROM memory ENVIRONMENTAL CONDITIONS Mechanical environment Electromagnetic environment Operating temperature range -25°C to +55°C Storage temperature -25°C to 75°C Humidity ≤ 80% Installation Internal (box/cabinet) Vibrations ±0.075 mm COUNTIS E03/E04 - 545865A - SOCOMEC...
- Page 24 Modular - width of 1 module (DIN 43880) 18 x 90 x 70 Installation On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 100 g COUNTIS E03/E04 - 545865A - SOCOMEC...
- Page 25 Communication speed in bauds (bits per second) Prty Communication frame parity No parity Off parity Even parity RESALL Reset all partial energies SAVE? Confirm selection Save and exit Exit without saving Continue without saving COUNTIS E03/E04 - 545865A - SOCOMEC...
- Page 26 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 545865A...
