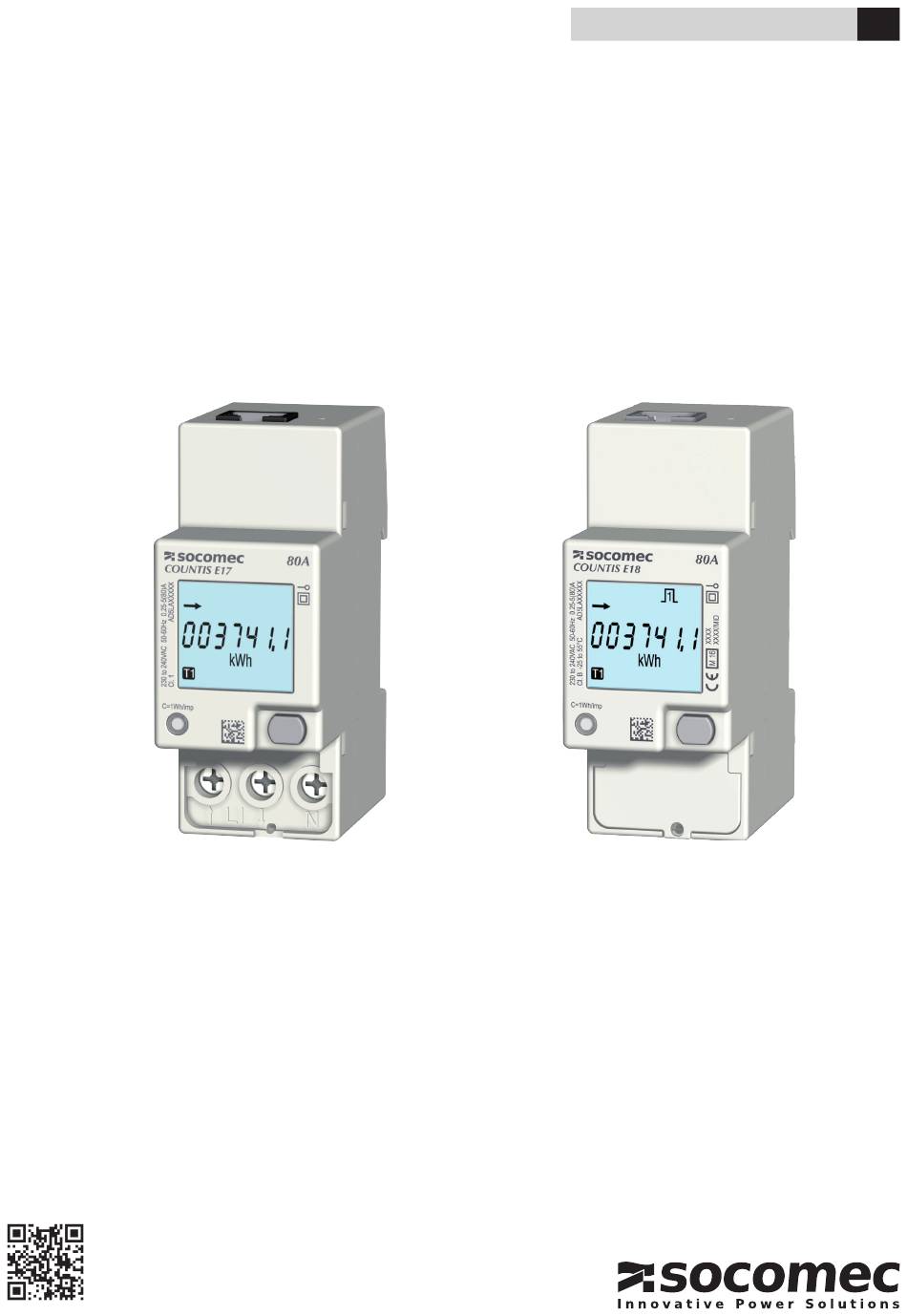

- Page 1 INSTRUCTION MANUAL COUNTIS E17/E18 Single-phase energy meter Direct - 80 A Ethernet COUNTIS E17 COUNTIS E18 - MID www.socomec.com/en/countis-e1x...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 4 .1 . Introducing the COUNTIS E17 / E18 . -
Page 3: Documentation
1. DOCUMENTATION All documentation on the COUNTIS E17/E18 is available online at: www.socomec.com/en/countis-e1x COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 4: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 ferrite core - 1 sealing kit (for COUNTIS E18) - 1 Quick Start guide COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 6: Introduction

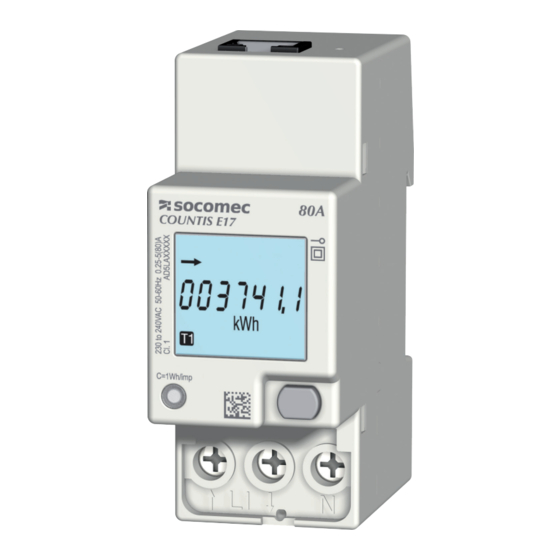

4.1. Introducing the COUNTIS E17 / E18 The COUNTIS E17 and E18 are modular active and reactive electrical energy meters that display consumed energy. They are designed for single-phase networks and allow a direct connection of up to 80 A. They are equipped with an Ethernet communication bus. -
Page 7: Lcd Display
7. Unit of measure 8. Inductive value 9. Capacitive value 10. Partial meters. Flashing = partial meter has stopped 11. Tariff display 4.5. Dimensions Dimensions: in/mm 1.42 1.42 0.24 1.73 0.24 1.73 2.52 2.52 COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 8: Electrical Readings
● 4 .6 .2 . Energy balance; definition Energy balance Formula (+kWh T1) – (-kWh T1) + (+kWh T2) – (-kWh T2) kvarh (+kvarh T1) – (-kvarh T1) + (+kvarh T2) – (-kvarh T2) COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounted The COUNTIS E17/E18 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 10: Connection
0.47" / 12 mm 17.70 lb.in / 2 Nm max. 6.2. Connection to the electrical network and to the loads The COUNTIS E17/E18 are intended for single-phase networks with neutral. Ethernet Ethernet RJ45. The Ethernet cable must pass twice through the ferrite core, positioned at least 5 cm away from the device. -
Page 11: Mid Compliance
The information provided via the TCP Modbus COM is transmitted for information only and has no legal value. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e1x seal COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 12: Communication
8. COMMUNICATION 8.1. General information The Modbus communication available on the COUNTIS E17/E18 communicates via an Ethernet link which is used to operate devices from a PC or an API. 8.2. Communication structure The device communicates via a Modbus protocol which involves a dialogue in accordance with a master/slave structure. -
Page 13: Configuration
9. CONFIGURATION The devices can be configured directly from the COUNTIS E17/E18 screen in programming mode or via the communication link. The paragraphs below describe configuring using the screen. 9.1. Onscreen configuration From the screen, go to programming mode to change your communication settings. How to browse through the... -
Page 14: View All Of The Menu "Setup
Ea+ partial (kWh) Tariff T1, T2 Ea+ partial (kWh) Ea- partial (kWh) Tariff T1, T2 Ea- partial (kWh) Eap partial (kVAh) Er+ partial (kVarh) Er- partial (kVarh) Back to first screen of "SETUP" menu COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 15: Detailed View Of Menu "Setup
Ea+ partial Tariff T1, T2; Ea+ partial; Ea- partial Tariff 000, 001, ..., 254, 255 T1, T2; Ea- partial; Eap partial; Er+ partial; Er- partial Netmask 2 000, 001, ..., 254, 255 Back to first screen of "SETUP" menu COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 16: Example: Setting The Communication Address
IP address 2 IP address 3 x2<0.5 sec IP address 4 Netmask 1 Netmask 2 Netmask 3 Netmask 4 Gateway 1 Gateway 2 Gateway 3 Gateway 4 Partial Energies Reset XX = default value COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 17: Use
______________ Power factor ______________ Frequency ______________ Back to first screen of Back to first screen of "tot" Back to first screen of "P.rt" Back to first screen of "Tar." menu menu menu "InFO" menu COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 18: Detailed View Of The Tariff Menu, "Tar
Exported reactive energy, tariff 2 Imported reactive energy, tariff 1 Back to first screen of "Tar." menu Exported reactive energy, tariff 1 Imported active energy, tariff 2 Exported active energy, tariff 2 Imported reactive energy, tariff 2 COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 19: Detailed View Of The Total Menu, "Tot
Total exported reactive energy Total apparent energy Total imported inductive reactive energy Back to first screen of "tot" menu Total exported inductive reactive energy Total imported capacitive reactive energy Total exported capacitive reactive energy COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 20: Detailed View Of The Menu For Partial And Realtime Readings, "P . Rt
Exported partial active energy for tariff T1 Realtime current Exported partial active energy for tariff T2 Realtime power factor Partial exported active energy Frequency Partial imported reactive energy Back to first screen of "P. rt" menu COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 21: Starting Up The Partial Energy Meter
10 .3 .1 . Starting up the partial energy meter >3 >3 10 .3 .2 . Stopping the partial energy meter >3 >3 10 .3 .3 . Resetting the partial energy meter to zero >3 >3 COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 22: Detailed View Of The Menu "Info
10.4. Detailed view of the menu "info" Metrological firmware version Non-metrological firmware version Checksum of metrological firmware Checksum of non-metrological firmware Installed communication port Back to first screen of "info" menu COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 23: Diagnostics Messages
• If you see this message, the meter has malfunctioned and must be replaced. 12. ASSISTANCE Causes Solutions Device not working Check the neutral and phase cable connections Error message Check the meter is working OK COUNTIS E17/E18 - 545873A - SOCOMEC... -
Page 24: Characteristics
Total and partial reading MID metering Bidirectional with single-phase Resolution 10 Wh, 10 varh ENERGY ACCURACY Class B (EN 50470-3) E18 Active energy Ea+ Class 1 (IEC 62053-21) Reactive energy Er+ Class 2 (IEC 62053-23) COUNTIS E17/E18 - 545873A - SOCOMEC... - Page 25 Default slave address SAVING Energy registers In FRAM memory ENVIRONMENTAL CONDITIONS Mechanical environment Electromagnetic environment Operating temperature range -25°C to +55°C Storage temperature -25°C to 75°C Humidity ≤ 80% Installation Internal (box/cabinet) Vibrations ±0.075 mm COUNTIS E17/E18 - 545873A - SOCOMEC...
- Page 26 Modular - width of 2 modules (DIN 43880) 36 x 90 x 64 Installation On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 215 g COUNTIS E17/E18 - 545873A - SOCOMEC...
-
Page 27: Glossary Of Abbreviations
IP address 1 IP address 2 IP address 3 IP address 4 nET1 Netmask 1 nET2 Netmask 2 nET3 Netmask 3 nET4 Netmask 4 GAt1 Gateway 1 GAt2 Gateway 2 GAt3 Gateway 3 GAt4 Gateway 4 COUNTIS E17/E18 - 545873A - SOCOMEC... - Page 28 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 545873A...
