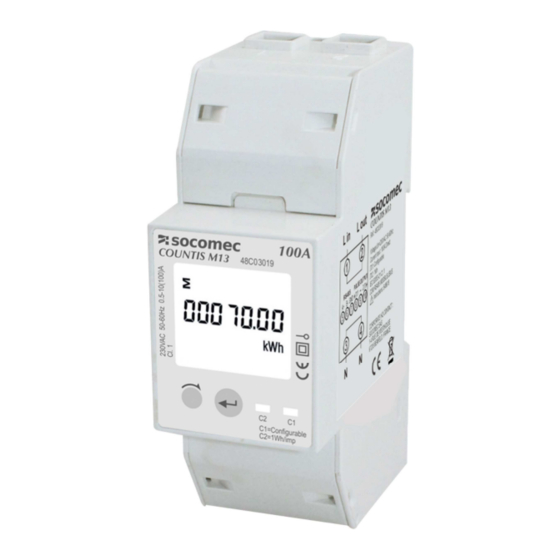

SINGLE PHASE DIN RAIL ENERGY METER
COUNTIS M13
MANUAL V1.1
CORPORATE HQ CONTACT:
SOCOMEC SAS, 1-4 RUE DE WESTHOUSE, 67235 BENFELD, FRANCE
http://www.socomec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COUNTIS M13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for socomec COUNTIS M13

Summary of Contents for socomec COUNTIS M13

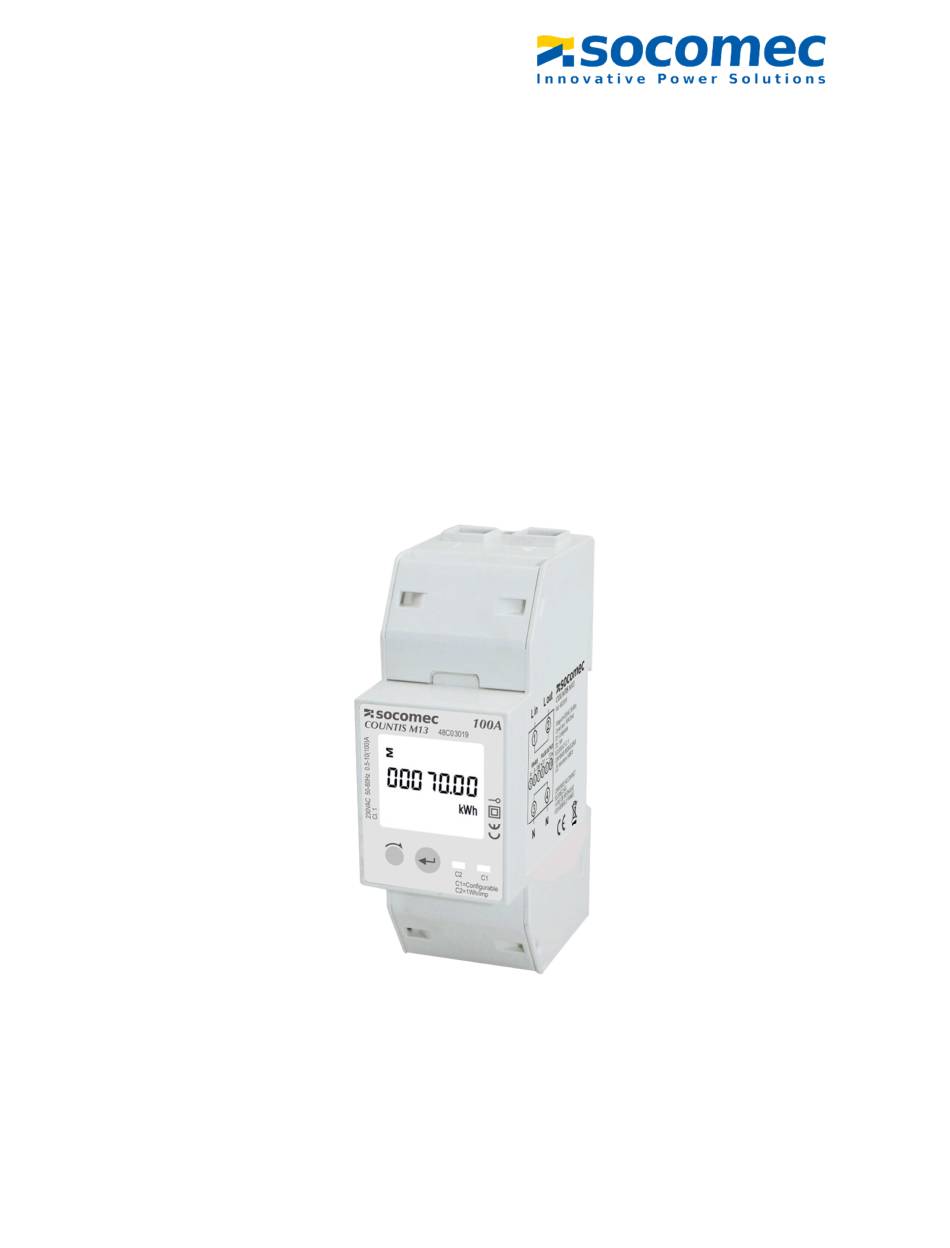

  • Page 1 SINGLE PHASE DIN RAIL ENERGY METER COUNTIS M13 MANUAL V1.1 CORPORATE HQ CONTACT: SOCOMEC SAS, 1-4 RUE DE WESTHOUSE, 67235 BENFELD, FRANCE http://www.socomec.com...
  • Page 2 Statement All rights reserved. Without the written permission of SOCOMEC, the contents of any pages and chapters in this manual shall not be copied or reproduced or disseminated in any form. Otherwise, all consequences shall be borne by the violator.

  • Page 3: Table Of Contents

    2.6 Wiring Diagram----------------------------------------------------------------------------------------------------------------4 Part 3. Operation Instructions 3.1 Display and Operation-------------------------------------------------------------------------------------------------------5 3.1.1Display -------------------------------------------------------------------------------------------------------------------------5 3.1.2 Button Definition-----------------------------------------------------------------------------------------------------------5 3.2 Measurement-----------------------------------------------------------------------------------------------------------------5 3.3 Setting by button--------------------------------------------------------------------------------------------------------------9 Part 4. Modbus register Map-------------------------------------------------------------------------------------------------14 CORPORATE HQ CONTACT: SOCOMEC SAS, 1-4 RUE DE WESTHOUSE, 67235 BENFELD, FRANCE http://www.socomec.com...

  • Page 4: Part 1 Product Overview

    The compact design and DIN rail installation provides an easy and economical solution for your metering demand. COUNTIS M13 equipped with 2 channels of pulse output. The pulse constant, pulse width and output unit is configurable. Built-in interfaces provides RS485 Modbus RTU outputs, RS485 high-speed communication supports the highest communication rate of 9600 bps, it is an ideal choice for power energy monitoring.

  • Page 5: Part 2 General Specifications

    Part 2 General Specifications 2.1 Specifications Voltage： Rated Voltage ( Un) : 230V AC Operational voltage：±20% of Un Current： Rated Current (Ib)：5A Max Current (Imax)：100A Over current withstand: 30 Imax for 0.01s Operational frequency：Rated：50/60Hz Range：45-65 Hz Insulation capabilities： AC voltage withstand 4KV/1min Impulse voltage withstand 6kV –...

  • Page 6: Rs485 Communication

    Apparent power：±1% Active energy：Class1 Reactive energy：Class2 2.3 RS485 Communication Bus Type：RS485 Communication Protocol：Modbus RTU Baud rate：1200/2400/4800/9600bps Modbus Address：1-247 Bus load：64pcs Communication distance：1000m Parity：EVEN /ODD/NONE Data bit：8 Stop bit：1 2.4 Environment Operating humidity： ≤90% Storage humidity： ≤95% Operating temperature： -25℃~+55℃ Storage temperature： -40℃~+70℃...

  • Page 7: Dimensions

    2.5 Dimensions 63 mm Height: Width: 36 mm Length: 99 mm 2.6 Wiring Diagram - 4 -...

  • Page 8: Part 3. Operation Instructions

    Part 3. Operation Instructions 3.1 Display and Operation 3.1.1 Display When the meter is powered on, the meter will initialize and do self-checking Display as following: Full screen Software version Modbus Address Baud rate Total active energy(kWh) 3.1.2 Button Definition In measurement mode: Click the button, the LCD display will scroll the measurements；...
  • Page 9 Resettable kVarh Max. Power Demand Voltage Current W Var VA Power factor Frequency Pulse Constant Modbus ID Baud rate Continuous Running Time Item Display Description Total kWh Example:70.00kWh Import kWh Example: 50.00kWh Export kWh Example: 20.00kWh Resettable kWh Example: 2.68kWh Total KVarh Example: 10.00kVarh Import KVarh...
  • Page 10 Export KVarh Example: 5.00kVarh Resettable kVArh Example: 1.49kVarh Max. Power Demand Example: 6930W Voltage Example: 229.8V Current Example: 30.156A Active Power (W) Example: 4700W Reactive Power (Var) Example: 1030Var - 7 -...
  • Page 11 Apparent power : 4811VA Example Power factor Example: 1.000 Frequency Example: 49.99Hz Pulse Constant Example: 1000 Modbus ID Example: 001 Baud rate Example: 9600 Continuous Running Time - 8 -...

  • Page 12: Setting By Button

    Setting by button To get into Set-up Mode, the user needs to press the “Enter “button for 3 second. Below parameters can be set via the buttons. Item Display Description Setting successfully, it displays “good” Setting failed, it displays ” err” Password: The user shall enter the password to enter the Set-mode Default：1000...
  • Page 13 Baud Rate Default: 2400bps Options: 1200, 2400, 4800, 9600bps. Press button to enter the selection routine. The current setting will be flashing. Use buttons to choose Baud rate. Press to confirm the new Baud rate. Parity Default: None Options：None, Even, Odd Press button to enter the selection routine.
  • Page 14 Pulse Constant Default: 1000 Options: 1000 / 100 / 10 / 1 Press button to enter the selection routine. The current setting will be flashing. Use buttons to choose Pulse Constant. Press to confirm the Pulse Constant. Pulse Duration Default: 100mS Options: 200 / 100 / 60ms Press button to enter the selection...
  • Page 15 Automatic Scroll Time Interval Default: 0 S Options: 0 ~ 30S 11-1 Press button enter selection routine. The current setting will be flashing. Use buttons choose Automatic Scroll Time Interval. Press to confirm Automatic Scroll Time Interval. Backlit lasting time Default:60mins Options：0 (off)/5/10/20/30/60 12-1...
  • Page 16 13-1 Clear Max demand of active power 13-2 Clear the resettable energy kWh/kVarh Password Default: 1000 14-1 Press button enter selection routine. The current setting will be flashing. Use buttons enter new password. Press new password. - 13 -...
  • Page 17 Part 4． ． ． ． Modbus register Map Function code to read input parameters Address Input Register Parameter Modbus Protocol Start Address Hex Parameters unit format Hi byte Lo byte (Register) 0001 Voltage Volts Float 0007 Current Amps Float 0013 Active power Watts Float...
  • Page 18 Function code to set holding parameter to read holding parameter Address Holding Register Parameter Modbus Protocol Start Description Register Address Hex Parameters Format Hi byte Lo byte Float Write Pulse 1 Width in milliseconds: 60, 100 or 200, default 60ms. 0013 Pulse 1 Width Length : 4 byte...
  • Page 19 0 = 2400 baud (default) 1 = 4800 baud. 2 = 9600 baud 5=1200 baud. Length : 4 byte Data Format : Float 0087 Pulse 1 output mode Float Write MODBUS Protocol input parameter for pulse out 1: 0001: Import active energy, 0002: Total active energy ( Imp + exp) 0004: Export active energy, (default).
  • Page 20 closed. Without scrolling. Default: 0 The forth byte is for backlit lasting time. Unit: minute. Options: 0~60. 0 means the backlit is always on. Default: 60 Length : 4 byte Data Format : BCD 63761 Pulse 1 output 0000:0.001kWh/imp( default) 0001:0.01kWh/imp 0002:0.1kWh/imp 0003:1kWh/imp...
