- Page 1 INSTRUCTION MANUAL COUNTIS E00/E02 Single-phase energy meter Direct - 40 A Pulse COUNTIS E00 COUNTIS E02 - MID www.socomec.com/en/countis-e0x...
-
Page 2: Table Of Contents
........... . .21 COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 3: Documentation
1. DOCUMENTATION All documentation on the COUNTIS E00 / E02 is available online at: www.socomec.com/en/countis-e0x COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 4: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E02) - 1 Quick Start guide COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 6: Introduction

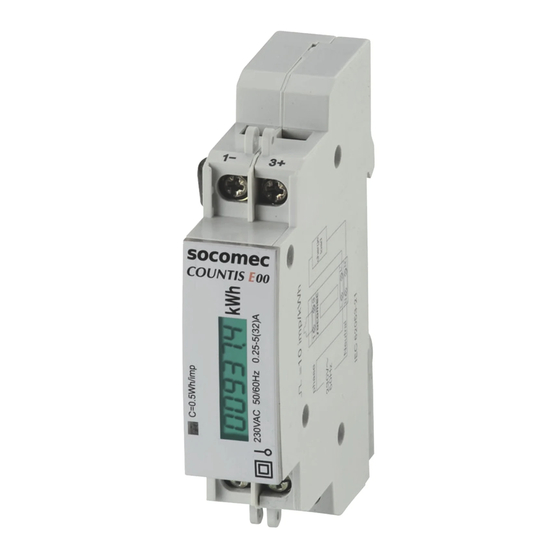

4.1. Introducing the COUNTIS E00 / E02 The COUNTIS E00 and E02 are modular active and reactive electrical energy meters that display consumed energy. They are designed for single-phase networks and allow a direct connection of up to 40 A. They are equipped with a pulse output. -
Page 7: Lcd Display
Value of the partial meter Flashing = meter stopped Imported ( ) or exported ( ) energy or power Unit of measure 4.5. Dimensions Dual dimensions : in/mm 0.71 0.24 1.73 2.52 COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 8: Electrical Readings
Total active and reactive energy Ea, Er kWh, kvarh Partial active and reactive energy Ea, Er kWh, kvarh Miscellaneous Partial meters START/STOP Status of the pulse output Active / inactive COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounting The COUNTIS E00/E02 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 10: Connection
1.5 Nm max. 0.5 Nm max. L’ 230 VAC 50/60 Hz 6.2. Connection to the electrical network and to the loads The COUNTIS E00/E02 are intended for single-phase networks with neutral. Pulse output 4: - 5: + Optocoupler pulse outputs... -
Page 11: Mid Compliance
After connecting the device, ensure that the terminal covers are fitted properly and secured by the plastic seals provided with the device. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e0x safety sealing COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 12: Configuration
8. CONFIGURATION The device can be configured directly from the COUNTIS E00/E02 screen in programming mode. The paragraphs below describe configuring using the screen. 8.1. On-screen configuration From the screen, go to programming mode to reset partial energy to zero. How to browse through the programming mode is... -
Page 13: Detailed View Of Menu "Setup
8.1.2. Detailed view of menu "SETUP" >3s Reset energy Ea+ partial; Er+ partial Back to first screen of "SETUP" menu COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 14: Use
Partial imported Total imported reactive >3 sec reactive energy energy ______________ Active and reactive power ______________ Voltage ______________ Current ______________ Power factor ______________ Frequency ______________ Set-up? ______________ Firmware version ______________ Checksum of firmware ______________ COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 15: Detailed View Of The Main Menu
Total imported active energy Frequency description in chapter 9.1.1 Total exported active energy Set-up? Total imported reactive energy Firmware version description in chapter 9.1.1 Active power Checksum of firmware Reactive power Voltage Current Power factor COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 16: Detailed View Of The Partial Energy Meter
9.1.1. Detailed view of the partial energy meter Total imported active energy Total imported reactive energy 9.1.2. Starting up the partial energy meter >3 sec >3 sec >3 sec 9.1.3. Stopping the partial energy meter >3 sec >3 sec >3 sec COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 17: Resetting The Partial Energy Meter To Zero
9.1.4. Resetting the partial energy meter to zero >3 sec >3 sec COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 18: Diagnostics Messages
• When messages with the code xx are displayed, the meter has malfunctioned and must be replaced. 11. ASSISTANCE Causes Solutions Device not working Check the neutral and phase cable connections Error message Check the meter is working OK COUNTIS E00/E02 - 547975A - SOCOMEC... -
Page 19: Characteristics
10 Wh, 10 varh ENERGY ACCURACY Class B (EN 50470-3) E02 Active energy Ea+ Class 1 (EN 62053-21) Reactive energy Er+ Class 2 (EN 62053-23) METROLOGICAL LED (Ea+) Pulse value 5000 pulses / kWh Colour COUNTIS E00/E02 - 547975A - SOCOMEC... - Page 20 Modular - width of 1 module (DIN 43880) 18 x 90 x 70 Installation On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 100 g COUNTIS E00/E02 - 547975A - SOCOMEC...
-
Page 21: Glossary Of Abbreviations
13. GLOSSARY OF ABBREVIATIONS Metrological firmware version Checksum of metrological firmware Set-up? Set-up menu RESALL Reset all partial energies SAVE? Confirm selection Save and exit Exit without saving Continue without saving COUNTIS E00/E02 - 547975A - SOCOMEC... - Page 22 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 547975A...
