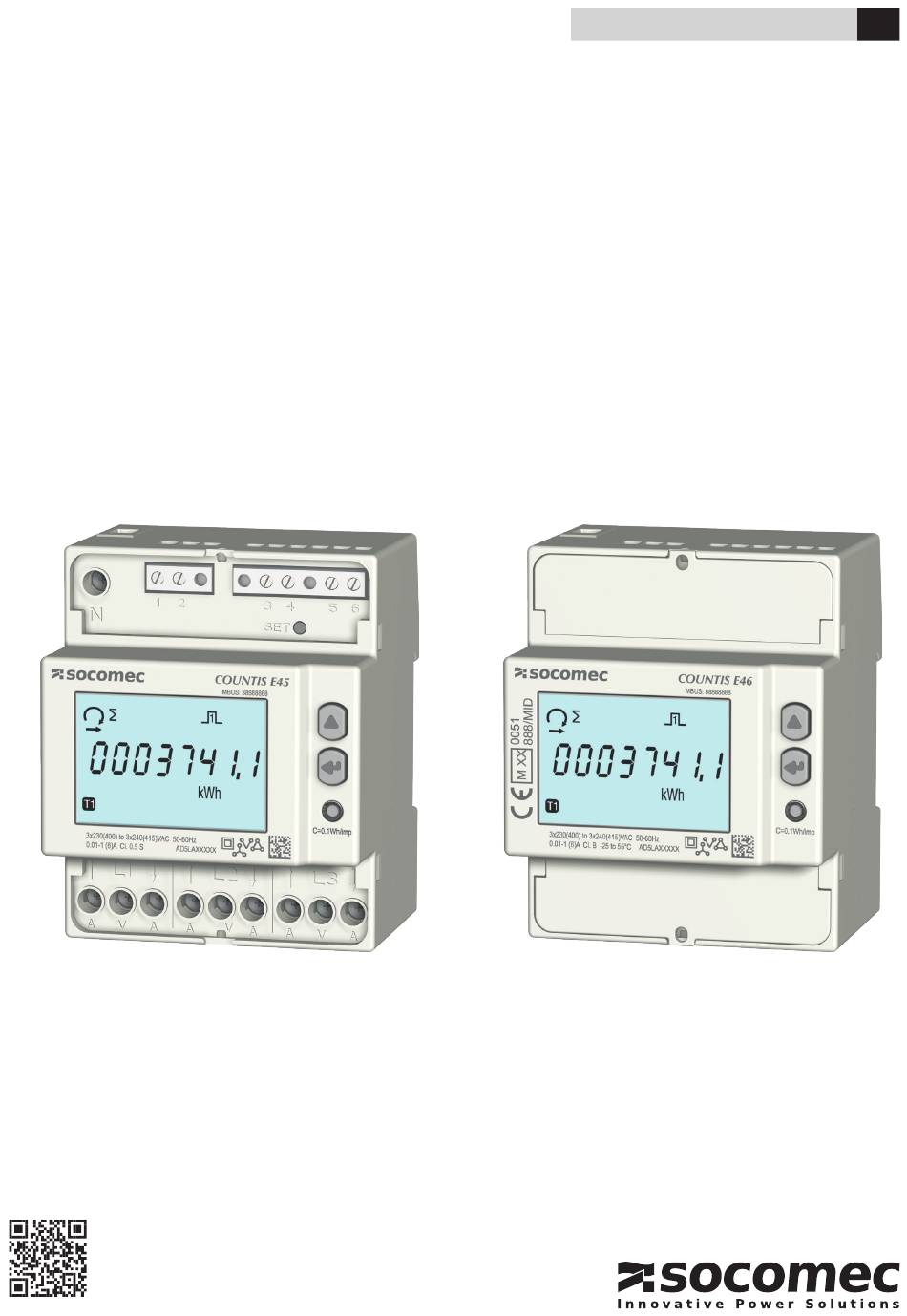

- Page 1 INSTRUCTION MANUAL COUNTIS E45/E46 Three-phase Energy meter Measure via CT up to 12 000A - M-Bus COUNTIS E45 COUNTIS E46 - MID www.socomec.com/en/countis-e4x...
-
Page 2: Table Of Contents
4.1. INTRODUCING THE COUNTIS E45/E46 ........ - Page 3 14. GLOSSARY OF ABBREVIATIONS ..........33 COUNTIS E45/E46 - 547983A - SOCOMEC...
-
Page 4: Documentation
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E46) - 1 Quick Start guide COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 6: Introduction

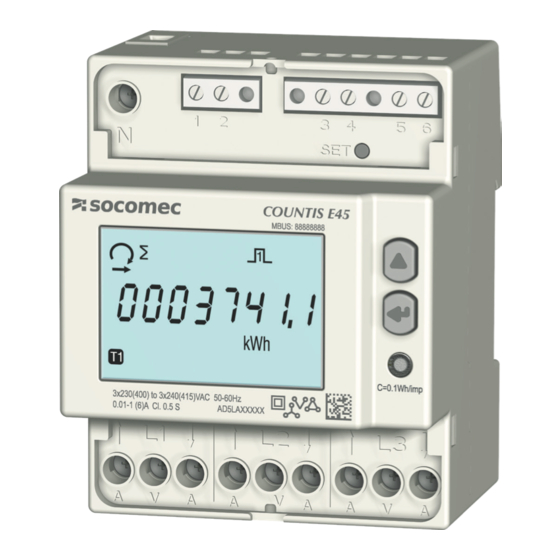

4.1. Introducing the COUNTIS E45/E46 The COUNTIS E45/E46 are modular active and reactive electrical energy meters that displays consumed and produced energy. They are designed for three-phase networks and can be connected using a CT 1/5 A on installations up to 12000 A. -
Page 7: Lcd Display
11. Partials meters. Flashing = partial meter has stopped 12. Tariff display 13. Energy balance 14. Inductive value 15. Capacitive value 16. Imported ( ) or exported energy or power ( 4.5. Dimensions Dimensions: in/mm 2.83 0.24 1.73 2.52 COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 8: Electrical Values Measured
NOTE: ∑ is the sum of the meter readings for each phase, divided by 3. NOTE: If you have a 3-wire connection the following voltage readings are not available; phase-neutral, neutral current, phase power, power factor for each phase and power for each phase. COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 9: Energy Balance; Definition
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounted The COUNTIS E45/E46 can be mounted on a 35-mm DIN rail (EN 60715TM35). It must be used inside electrical cabinets. COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 10: Connection
Fixed / flexible 0.14 mm -> 2.5 mm 0.27" / 6.9 mm 4.5 lb.in / 0.5 Nm max. Fixed / flexible 1.5 mm -> 35 mm 0.47" / 12 mm 17.70 lb.in / 2 Nm max. COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 11: Connection To The Electrical Network And To The Loads
6.2. Connection to the electrical network and to the loads The COUNTIS E45/E46 are intended for three-phase networks with or without neutral. 3 phases, 4 wires, 3 CT T1/2 T1/2 M-BUS Double tariff 1-2: Switch tariffs: 0 VAC/DC -> Tariff 1 80-276 VAC/DC ->... -
Page 12: Mid Compliance
The information provided via the M-Bus COM is transmitted for information only and has no legal value. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e4x seal COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 13: Communication
COUNTIS units (slaves) are compatible with the 2 primary and secondary addressing modes. You can configure the primary and secondary addressing modes via the device's interface. 8.4. Communication tables The communication tables and relevant notes are available on the COUNTIS E45/E46 documentation page on the website at the following address: www.socomec.com/en/countis-e4x... -
Page 14: Configuration
9. CONFIGURATION The device can be confi gured directly from the COUNTIS E45/E46 screen in programming mode or via the communication link. The paragraphs below describe confi guring using the screen. 9.1. Onscreen configuration From the screen, go to programming mode to change your communication settings. How to browse through the... -
Page 15: Detailed View Of Menu "Setup 1
Ea+ partial (kWh) Tariff T1, T2, T3, T4 Ea+ partial (kWh) Ea- partial (kWh) Tariff T1, T2, T3, T4 Ea- partial (kWh) Eap partial (kVAh) Er+ partial (kVarh) Er- partial (kVarh) Return to the first menu screen, "SETUP 2" COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 16: Detailed View Of Menu "Setup
Ea+ partial Tariff T1, T2, T3, T4; Ea+ partial; Ea- partial Tariff T1, T2, T3, T4; Ea- partial; Eap par- tial; Er+ partial; Er- partial Return to the first menu screen, "SETUP 2" XX = default value COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 17: Example: Setting The Communication Address
9.1.4. Example: setting the communication address In "SETUP 2" mode (see page 14), go to the "APri primary address" screen Example: changing the primary address to 243. >3s Secondary M-Bus address Communication speed Partial Energies Reset COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 18: Use
Go back to first screen, and exported first screen, first screen, menu "tot" reactive menu "rt" menu "info" energy _________ Active energy balance _________ Reactive en- ergy balance _________ Go back to first screen, menu "Par.b" COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 19: Detailed View Of The Menu For Tariff 1, "Tar.1
Imported inductive reactive energy, tariff 1 Go back to first screen, menu "Tar.1" Exported inductive reactive energy, tariff 1 Imported capacitive reactive energy, tariff 1 Exported capacitive reactive energy, tariff 1 Imported reactive energy, tariff 1 COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 20: Detailed View Of The Menu For Tariff 2, "Tar.2
Imported inductive reactive energy, tariff 2 Go back to first screen, menu "Tar.2" Exported inductive reactive energy, tariff 2 Imported capacitive reactive energy, tariff 2 Exported capacitive reactive energy, tariff 2 Imported reactive energy, tariff 2 COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 21: Detailed View Of The Menu For Tariff 3, "Tar.3
Imported inductive reactive energy, tariff 3 Go back to first screen, menu "Tar.3" Exported inductive reactive energy, tariff 3 Imported capacitive reactive energy, tariff 3 Exported capacitive reactive energy, tariff 3 Imported reactive energy, tariff 3 COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 22: Detailed View Of The Menu For Tariff 4, "Tar.4
Imported inductive reactive energy, tariff 4 Go back to first screen, menu "Tar.4" Exported inductive reactive energy, tariff 4 Imported capacitive reactive energy, tariff 4 Exported capacitive reactive energy, tariff 4 Imported reactive energy, tariff 4 COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 23: Detailed View Of The Total Menu, "Tot
L1, L2, L3, ∑ ∑ Total imported inductive reactive energy Go back to first screen, menu "tot" ∑ Total exported inductive reactive energy ∑ Total imported capacitive reactive energy ∑ Total exported capacitive reactive energy ∑ COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 24: Detailed View Of The Menu Showing Partial Readings And The Energy Balance "Par.b
Partial exported reactive energy ∑ ∑ Exported partial active energy for tariff T2 Active energy balance) ∑ Exported partial active energy for tariff T3 Reactive energy balance ∑ Go back to first screen, menu "Par.b" COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 25: Starting Up The Partial Energy Meter
10.6.1. Starting up the partial energy meter Y=OK N=Cancel x1 Confirm 10.6.2. Stopping the partial energy meter Y=OK N=Cancel x1 Confirm 10.6.3. Resetting the partial energy meter to zero >3s Y=OK N=Cancel x1 Confirm COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 26: Detailed View Of The Menu For Realtime Readings, "Rt
L1, L2, L3, ∑ Realtime reactive power Go back to first screen, menu "rt" L1, L2, L3, ∑ Realtime phase/phase voltage ∑ Realtime phase/neutral voltage ∑ Realtime three-phase current ∑ Realtime power factor ∑ COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 27: Detailed View Of The Menu "Info
Go back to first screen, menu "info" Checksum of non-metrological firmware Installed communication port Connection type 3 phases, 4 wires, 3 CT 3 phases, 3 wires, 3 CT 3 phases, 3 wires, 2 CT CT primary value (CtP) 1…12000 A COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 28: Diagnostics Messages
• If a 123 phase sequence is detected, the symbol appears. • If a 132 phase sequence is detected, the symbol appears. 11.3. Malfunction • If you see this message, the meter has malfunctioned and must be replaced. COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 29: Assistance
Solutions Device not working Check the neutral and phase 1 cable connections. Phases not shown onscreen Check the connections Phases reversed onscreen Check the network configuration Error message Check the meter is working OK COUNTIS E45/E46 - 547983A - SOCOMEC... -
Page 30: Characteristics
3.5VA max. per phase Permanent max. voltage 290V phase-neutral / 500V phase-phase FREQUENCY MEASUREMENT Frequency measurement 45-65 Hz ENERGY MEASUREMENT Active Reactive Total and partial reading MID metering Bidirectional with three-phase Resolution 10 Wh, 10 varh COUNTIS E45/E46 - 547983A - SOCOMEC... - Page 31 0.000 … 1.000 Frequency: 1 display, 4-digit 45.00-65.00 Hz COMMUNICATION M-Bus 2 wires + shielding/ half duplex Protocol M-Bus Baudrate 300, 600, 1200, 2400, 4800, 9600 bps Unity of load SAVING Energy registers In FRAM memory COUNTIS E45/E46 - 547983A - SOCOMEC...
- Page 32 Modular - width of 4 modules (DIN 43880) 72 x 90 x 64 Mounting On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 440 g COUNTIS E45/E46 - 547983A - SOCOMEC...
-
Page 33: Glossary Of Abbreviations
Frame stop bit 1 stop bit 2 stop bits Reset partial energy ConF? Confirm selection Save and exit Exit without saving Continue without saving Tariff management option Tariff management via communication Tariff management via device input COUNTIS E45/E46 - 547983A - SOCOMEC... - Page 34 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 547983A...
