socomec COUNTIS E13 Instruction Manual
Single-phase energy meter direct - 80 a modbus
Hide thumbs
Also See for COUNTIS E13:
- Quick start (2 pages) ,
- Operating instructions manual (16 pages)
Related Manuals for socomec COUNTIS E13
Summary of Contents for socomec COUNTIS E13

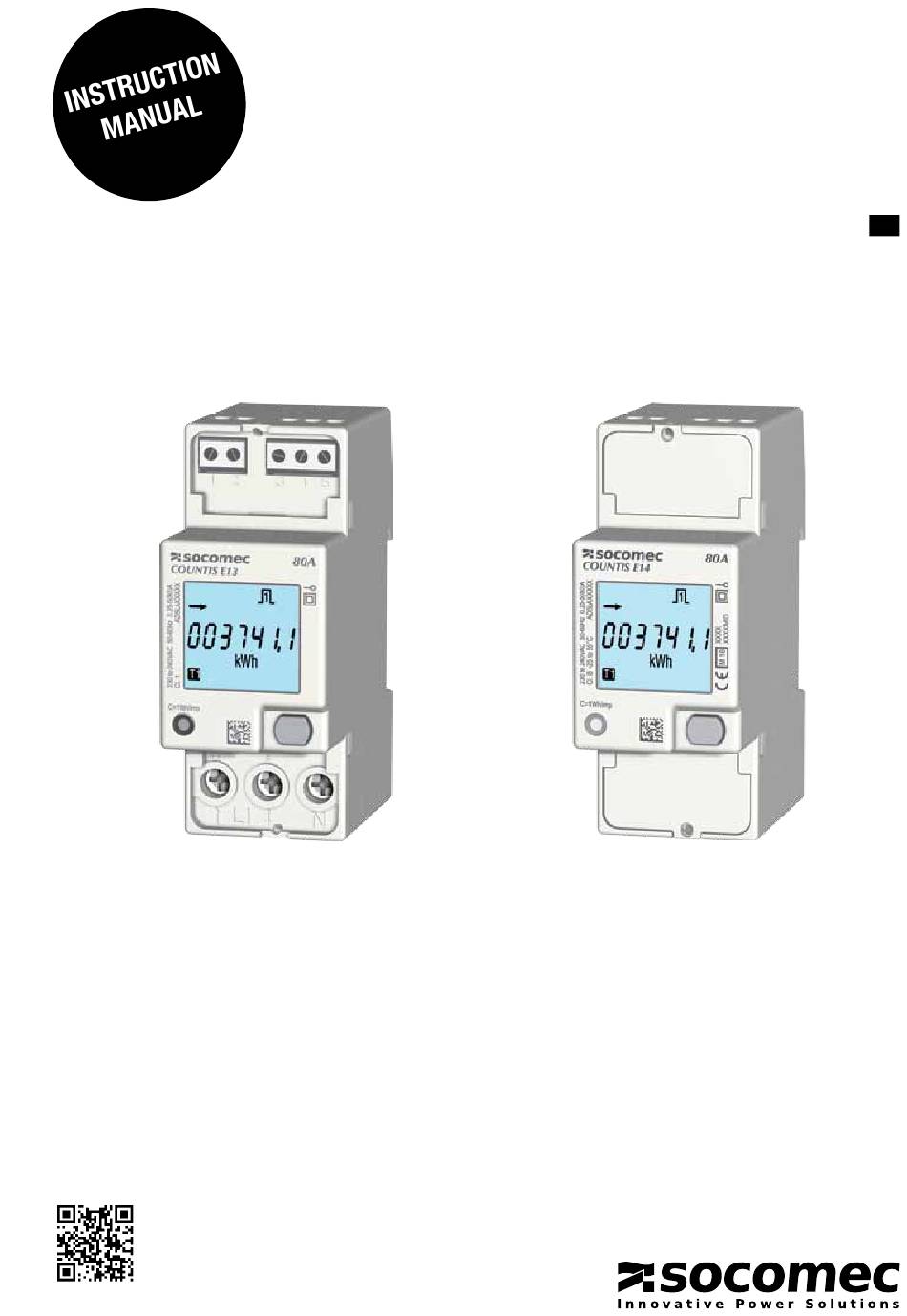

- Page 1 COUNTIS E13/E14 Single-phase energy meter Direct - 80 A MODBUS COUNTIS E13 COUNTIS E14 - MID www.socomec.com/ en/countis-e1x...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 3: Documentation
1. DOCUMENTaTION All documentation on the COUNTIS E13/E14 is available online at: www.socomec.com/en/countis-e1x COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 4: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E14) - 1 Quick Start guide COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 6: Introduction

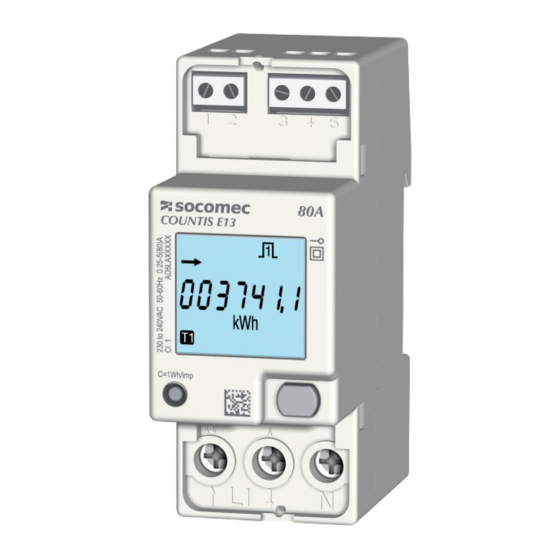

4.1. Introducing the COUNTIS E13 / E14 The COUNTIS E13 and E14 are modular active and reactive electrical energy meters that display consumed energy. They are designed for single-phase networks and allow a direct connection of up to 80 A. They are equipped with a MODBUS communication Bus. -
Page 7: Lcd Display
8. Unit of measure 9. Inductive value 10. Capacitive value 11. Partial meters. Flashing = partial meter has stopped 12. Tariff display 4.5. Dimensions Dimensions: in/mm 1.42 1.42 0.24 1.73 0.24 1.73 2.52 2.52 COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 8: Electrical Readings
4 .6 .2 . Energy balance; definition Energy balance Formula (+kWh T1) – (-kWh T1) + (+kWh T2) – (-kWh T2) kvarh (+kvarh T1) – (-kvarh T1) + (+kvarh T2) – (-kvarh T2) COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DiN rail mounted The COUNTIS E13/E14 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 10: Connection
35 mm 0.47" / 12 mm 17.70 lb.in / 2 Nm max. 6.2. connection to the electrical network and to the loads The COUNTIS E13/E14 are intended for single-phase networks with neutral. COM RS485 MODBUS 3 4 5 3 4 5... -
Page 11: Mid Compliance
The information provided via the RS485 COM is transmitted for information only and has no legal value. • miD Declaration of conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e1x seal COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 12: Communication
8. COMMUNICaTION 8.1. general information The Modbus communication available on the COUNTIS E13/E14 communicates via an RS485 series link (2 or 3 wires) which is used to operate devices from a PC or an API. In a standard configuration an RS485 connection is used to connect 32 products to a PC or a controller over 1200 metres. -
Page 13: Communication Structure
To comply with the modbus protocol, the inter-character time must be ≤ 3 silences. This means the time for 3 characters to be emitted so that the message is processed by the COUNTIS E13/E14. In order to use the information correctly, you must use the modbus functions in accordance with the codes: •... -
Page 14: Configuration
9. CONFIgUraTION The device can be configured directly from the COUNTIS E13/E14 screen in programming mode or via the communication link. The paragraphs below describe configuring using the screen. 9.1. Onscreen configuration From the screen, go to programming mode to change your communication settings. How to browse through the... -
Page 15: Detailed View Of Menu "Setup
Communication stop bit 1, 2 reset energy Ea+ partial Tariff T1, T2; Ea+ par- tial; Ea- partial Tariff T1, T2; Ea- partial; Eap partial; Er+ partial; Er- partial Back to first screen of "SETUP" menu COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 16: Example: Setting The Communication Address
In "SETUP" mode (see page 14), go to the "Addr communication address" screen Example: changing the communication address to 247. >3 x2<0.5 sec x2<0.5 sec x2<0.5 sec x2<0.5 sec Baudrate modbus Parity modbus stop bits all partial counters reset XX = default value COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 17: Use
______________ Frequency ______________ Back to first screen of Back to first screen of "tot" Back to first screen of "P.rt" Back to first screen of "Tar." menu menu menu "InFO" menu COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 18: Detailed View Of The Tariff Menu, "Tar .2
Imported reactive energy, tariff 1 Back to first screen of "Tar." menu Exported reactive energy, tariff 1 Imported active energy, tariff 2 Exported active energy, tariff 2 Imported reactive energy, tariff 2 COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 19: Detailed View Of The Total Menu, "Tot
Total exported reactive energy Total apparent energy Total imported inductive reactive energy Back to first screen of "tot" menu Total exported inductive reactive energy Total imported capacitive reactive energy Total exported capacitive reactive energy COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 20: Detailed View Of The Menu For Partial And Realtime Readings, "P . Rt
Exported partial active energy for tariff T1 realtime current Exported partial active energy for tariff T2 realtime power factor Partial exported active energy Frequency Partial imported reactive energy Back to first screen of "P. rt" menu COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 21: Starting Up The Partial Energy Meter
10 .3 .1 . Starting up the partial energy meter >3 >3 10 .3 .2 . Stopping the partial energy meter >3 >3 10 .3 .3 . Resetting the partial energy meter to zero >3 >3 COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 22: Detailed View Of The Menu "Info
10.4. Detailed view of the menu "info" Metrological firmware version Non-metrological firmware version Checksum of metrological firmware Checksum of non-metrological firmware Installed communication port Back to first screen of "info" menu COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 23: Diagnostics Messages
• If you see this message, the meter has malfunctioned and must be replaced. 12. aSSISTaNCE Causes Solutions Device not working Check the neutral and phase 1 cable connections Error message Check the meter is working OK COUNTIS E13 / E14 - 545 869 A - SOCOMEC... -
Page 24: Characteristics
MID metering Bidirectional with single-phase Resolution 10 Wh, 10 varh ENErgy accuracy Class B (EN 50470-3) E14 Active energy Ea+ Class 1 (EN 62053-21) Reactive energy Er+ Class 2 (EN 62053-23) tariFF for Ea+ COUNTIS E13 / E14 - 545 869 A - SOCOMEC... - Page 25 Modular - width of 2 modules (DIN 43880) 36 x 90 x 64 Installation On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) COUNTIS E13 / E14 - 545 869 A - SOCOMEC...
- Page 26 No parity Off parity Even parity StoP Frame stop bit 1 stop bit 2 stop bits rESALL Reset all partial energies SAVE? Confirm selection Save and exit Exit without saving Continue without saving COUNTIS E13 / E14 - 545 869 A - SOCOMEC...
- Page 27 COUNTIS E13 / E14 - 545 869 A - SOCOMEC...
- Page 28 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE http://www.socomec.com 545 869 a - FR - 02/17...
