- Page 1 INSTRUCTION MANUAL COUNTIS E11/E12 Single-phase energy meter Direct - 80 A Pulse COUNTIS E11 COUNTIS E12 - MID www.socomec.com/en/countis-e1x...
-
Page 2: Table Of Contents
4.1. INTRODUCING THE COUNTIS E11 / E12 ........ -
Page 3: Documentation
1. DOCUMENTATION All documentation on the COUNTIS E11/E12 is available online at: www.socomec.com/en/countis-e1x COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 4: Hazards And Warnings
The assembly, use, servicing and maintenance of this equipment must only be carried out by trained, qualified professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion •... -
Page 5: Preliminary Operations
• The unit has not been damaged during transportation • The device reference number conforms to your order • The package includes: - 1 device - 1 sealing kit (for COUNTIS E12) - 1 Quick Start guide COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 6: Introduction

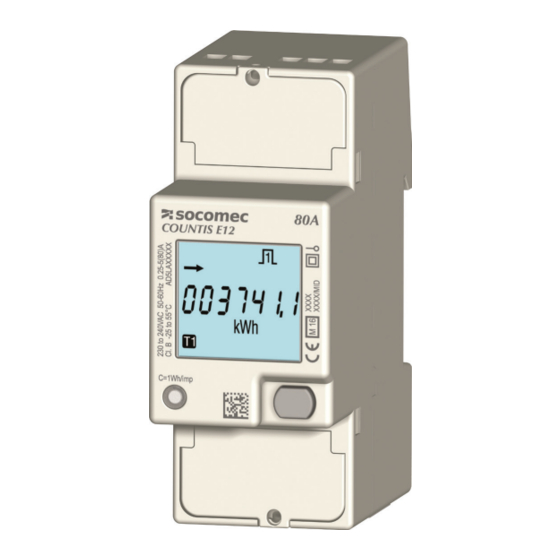

4.1. Introducing the COUNTIS E11 / E12 The COUNTIS E11 and E12 are modular active and reactive electrical energy meters that display consumed energy. They are designed for single-phase networks and allow a direct connection of up to 80 A. They are equipped with two pulse outputs. -
Page 7: Lcd Display
7. Unit of measure 8. Inductive value 9. Capacitive value 10. Partial meters. Flashing = partial meter has stopped 11. Tariff display 4.5. Dimensions Dimensions: in/mm 1.42 1.42 0.24 1.73 0.24 1.73 2.52 2.52 COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 8: Electrical Readings
Active, partial energy for each tariff (T1/T2) Partial active and reactive energy Ea, Er kWh, kvarh Miscellaneous Current tariff Partial meters START/STOP State of the pulse output Active / inactive COUNTIS E11 / E12 - 547977A - SOCOMEC... -
Page 9: Installation
• Avoid vibrations with accelerations greater than 1 g for frequencies lower than 60 Hz. 5.2. DIN rail mounted The COUNTIS E11/E12 can be mounted on a 35-mm DIN rail (EN 60715TM35). They must be used inside electrical cabinets. COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 10: Connection
0.47" / 12 mm 17.70 lb.in / 2 Nm max. 6.2. Connection to the electrical network and to the loads The COUNTIS E11/E12 are intended for single-phase networks with neutral. T1/2 0201 3 4 5 Tariff input 1-2: Switch tariffs: 0 VAC/DC ->... -
Page 11: Mid Compliance
After connecting the device, ensure that the terminal covers are fitted properly and secured by the plastic seals provided with the device. • MID Declaration of Conformity The MID Declaration of Conformity is available on the website: www.socomec.com/en/countis-e1x seal COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 12: Configuration
8. CONFIGURATION The device can be configured directly from the COUNTIS E11/E12 screen in programming mode. The paragraphs below describe configuring using the screen. 8.1. Onscreen configuration From the screen, go to programming mode to reset partial energy to zero. How to browse through the programming mode is... -
Page 13: Detailed View Of Menu "Setup
8.1.2. Detailed view of menu "SETUP" >3s Reset energy Ea+ partial Tariff T1, T2; Ea+ par- tial; Ea- partial Tariff T1, T2; Ea- partial; Er+ partial Back to first screen of "SETUP" menu COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 14: Use
______________ Frequency ______________ Back to first screen of Back to first screen of "tot" Back to first screen of "P.rt" Back to first screen of "Tar." menu menu menu "InFO" menu COUNTIS E11 / E12 - 547977A - SOCOMEC... -
Page 15: Detailed View Of The Tariff Menu, "Tar
Exported active energy, tariff 1 Imported reactive energy, tariff 1 Back to first screen of "Tar." menu Exported reactive energy, tariff 1 Imported active energy, tariff 2 Exported active energy, tariff 2 Imported reactive energy, tariff 2 COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 16: Detailed View Of The Total Menu, "Tot
Total exported reactive energy Total apparent energy Total imported inductive reactive energy Back to first screen of "tot" menu Total exported inductive reactive energy Total imported capacitive reactive energy Total exported capacitive reactive energy COUNTIS E11 / E12 - 547977A - SOCOMEC... -
Page 17: Detailed View Of The Menu For Partial And Realtime Readings
Exported partial active energy for tariff T1 Realtime current Exported partial active energy for tariff T2 Realtime power factor Partial exported active energy Frequency Partial imported reactive energy Back to first screen of "P. rt" menu COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 18: Starting Up The Partial Energy Meter
9.3.1. Starting up the partial energy meter >3 >3 9.3.2. Stopping the partial energy meter >3 >3 9.3.3. Resetting the partial energy meter to zero >3 >3 COUNTIS E11 / E12 - 547977A - SOCOMEC... -
Page 19: Detailed View Of The Menu "Info
9.4. Detailed view of the menu "info" Metrological firmware version Non-metrological firmware version Checksum of metrological firmware Checksum of non-metrological firmware Back to first screen of "info" menu COUNTIS E11/E12 - 547977A - SOCOMEC... -
Page 20: Diagnostics Messages
• If you see this message, the meter has malfunctioned and must be replaced. 11. ASSISTANCE Causes Solutions Device not working Check the neutral and phase 1 cable connections Error message Check the meter is working OK COUNTIS E11 / E12 - 547977A - SOCOMEC... -
Page 21: Characteristics
Total and partial reading MID metering Bidirectional with single-phase Resolution 10 Wh, 10 varh ENERGY ACCURACY Class B (EN 50470-3) E12 Active energy Ea+ Class 1 (EN 62053-21) Reactive energy Er+ Class 2 (EN 62053-23) COUNTIS E11/E12 - 547977A - SOCOMEC... - Page 22 Installation On DIN rail (EN 60715) Connection capacity, tightening torque See chapter "6. Connection", page 10 Protection index Front: IP51 - casing: IP20 Insulation class Class II (EN 50470-1) Weight 215 g COUNTIS E11 / E12 - 547977A - SOCOMEC...
-
Page 23: Glossary Of Abbreviations
Checksum of non-metrological firmware tAr. Tariff menu Total menu P. rt Partial and realtime readings menu SEtuP. Setup menu rESALL Reset all partial energies SAVE? Confirm selection Save and exit Exit without saving Continue without saving COUNTIS E11/E12 - 547977A - SOCOMEC... - Page 24 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 547977A...
