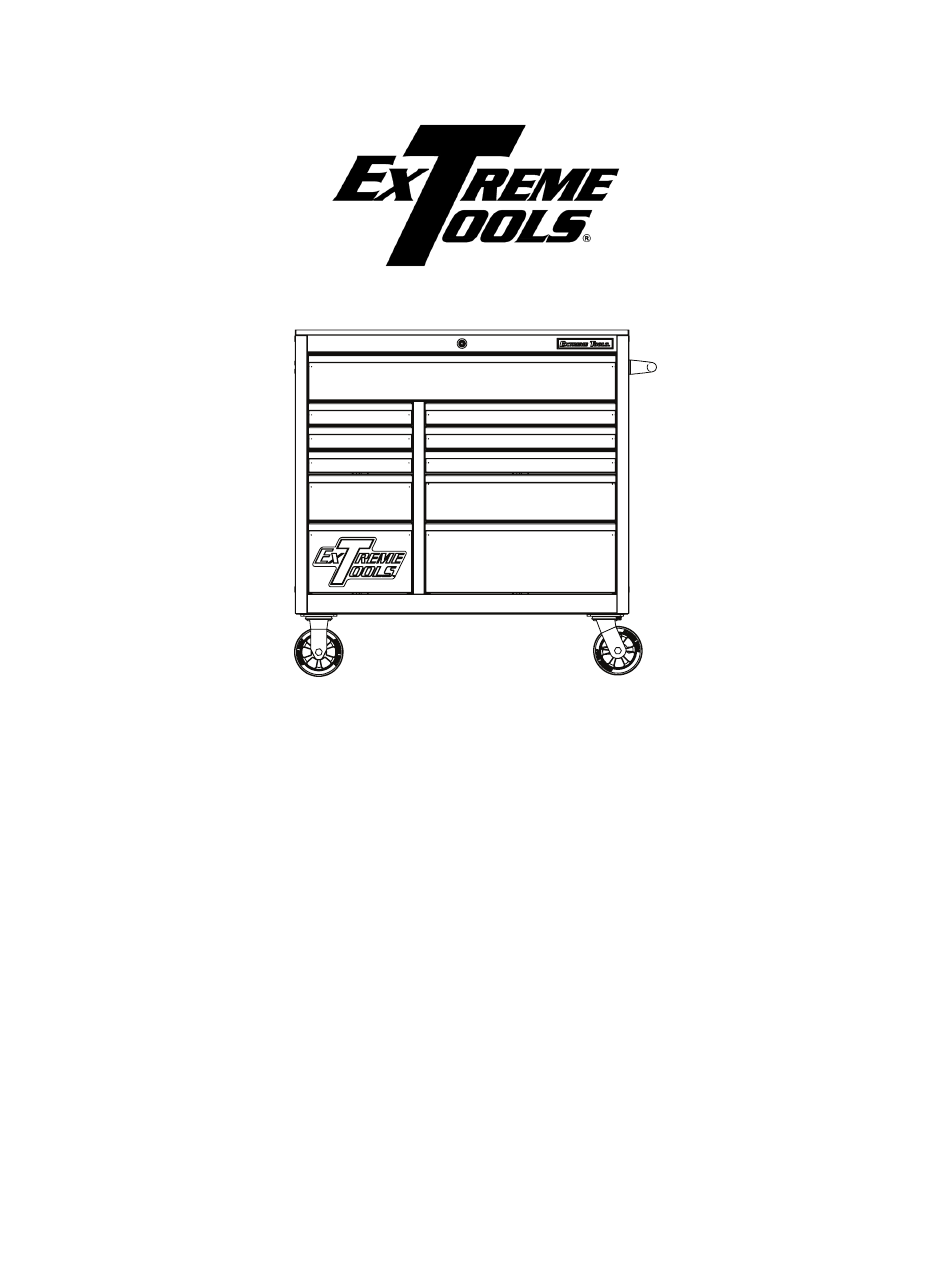

- Page 1 41 inch Powder Coated Steel Roller Cabinet Model: RX412511RC Extreme Tools, Inc. 740 Frontenac Road Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.net © 2020...
- Page 2 Roller Cabinet Parts List RX412511RC Replacement keys may be ordered using the code that appears on the face of the lock. To order replacement parts, have the part number, tool box color and quantity ready. If under warranty, the serial number is REQUIRED to get replacement parts.
- Page 3 RX41 drawer #7, 25" deep, 100# slide, Black w/Cr drawer pull ZDRR594E3QWUC RX41 drawer #7, 25" deep, 100# slide, Blue w/Cr drawer pull ZMDF412515MM MDF TOP FOR RX412511RC, 15 mm thick, Black Z-LK EX01-04 EX01-EX04 Mix lock sets 10 Z-ECRX...
- Page 4 ASSEMBLY Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Position the handle over the holes in the cabinet and attach with the provided (4) M6-1.0 x 12 SH screws. Tighten securely. Securing Top Chest and Roller Cabinet Place the chest on the cabinet.
- Page 5 OPERATING PROCEDURE Drawer Removal Pull drawer out so that it is almost fully extended. Push up on the black lever on one drawer slide and at the same time push down on the lever on the other side. With the levers in these positions, pull the drawer out until it releases from the drawer slides.
- Page 6 SAFETY WARNING Do not attempt to lift the cabinet by its side handle using chains, ropes or lifting device. Side handle may fail resulting in personal injury or damage to the product! Use a forklift or similar lifting device with forks placed under the bottom of the tool box to move if tool box cannot be moved by two people.
