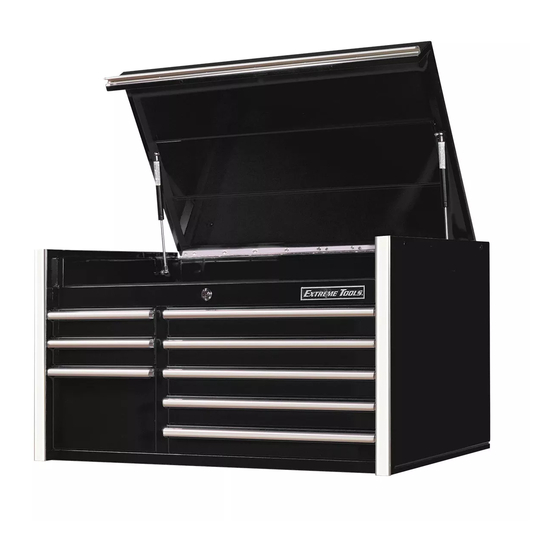

41 inch Powder Coated Steel
Top Chest
Model:
RX412508CH
Extreme Tools, Inc.
740 Frontenac Rd.
Naperville, Illinois 60563
6330.369.9303
www. ExtremeTools.net
© 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the RX412508CH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extreme Tools RX412508CH

Summary of Contents for Extreme Tools RX412508CH

  • Page 1 41 inch Powder Coated Steel Top Chest Model: RX412508CH Extreme Tools, Inc. 740 Frontenac Rd. Naperville, Illinois 60563 6330.369.9303 www. ExtremeTools.net © 2020...
  • Page 2 TOP CHEST PARTS LIST RX412508CH Replacement keys may be ordered using the code that appears on the face of the lock. To order replacement parts, have the part number, tool box color and quantity ready. If under warranty, the serial number is REQUIRED to get replacement parts.
  • Page 3 RX412508CH TOP CHEST PARTS LIST Item Part number Descrip�ons Strut for lid support on the RX412508CH, ZST350110M6 DX412504CH (11KG). RX41 drawer #2, 25" deep, 100# slide, Black ZDRR324E1QWKC w/Chrome drawer pull RX41 drawer #2, 25" deep, 100# slide, Blue ZDRR324E1QWUC w/Chrome drawer pull RX41 drawer #3, 25"...
  • Page 4 ASSEMBLY Securing Top Chest and Roller Cabinet Place the chest on the cabinet. Open the top drawer and locate the two holes under the top surface of the roller cabinet. Place one flat washer on each of (2) M8 x 16mm hex bolts. (Included with Top Chest) Insert hex bolt with washer up through the hole of the roller cabinet and into the hole on the bottom side of the top chest.

  • Page 5: Operating Procedure

    OPERATING PROCEDURE Drawer Removal Pull drawer out so that it is almost fully extended. Push up on the black lever on one drawer slide and at the same time push down on the lever on the other side. With the levers in these positions, pull the drawer out until it releases from the drawer slides.
  • Page 6 SAFETY WARNING Do not attempt to lift the cabinet by its side handle using chains, ropes or lifting device. Side handle may fail resulting in personal injury or damage to the product! Use a forklift or similar lifting device with forks placed under the bottom of the tool box to move if tool box cannot be moved by two people.
