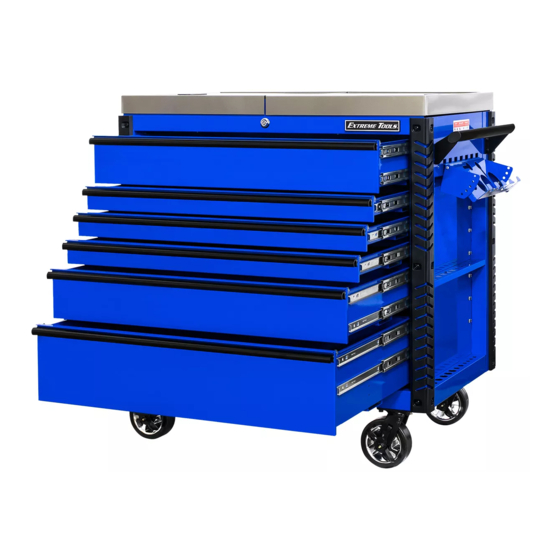

41 inch Painted Steel
Model: EX4106TCS
41" 6 Drawer Sliding Top Tool
Cart with Bumpers
Tool Cart
Extreme Tools, Inc.
740 Frontenac Road
Naperville, Illinois 60563
630.369.9303
www.ExtremeTools.net
Model: EX4106TC
41" 6 Drawer Flip Top Tool
Cart with Bumpers
© 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX4106TCS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extreme Tools EX4106TCS

Summary of Contents for Extreme Tools EX4106TCS

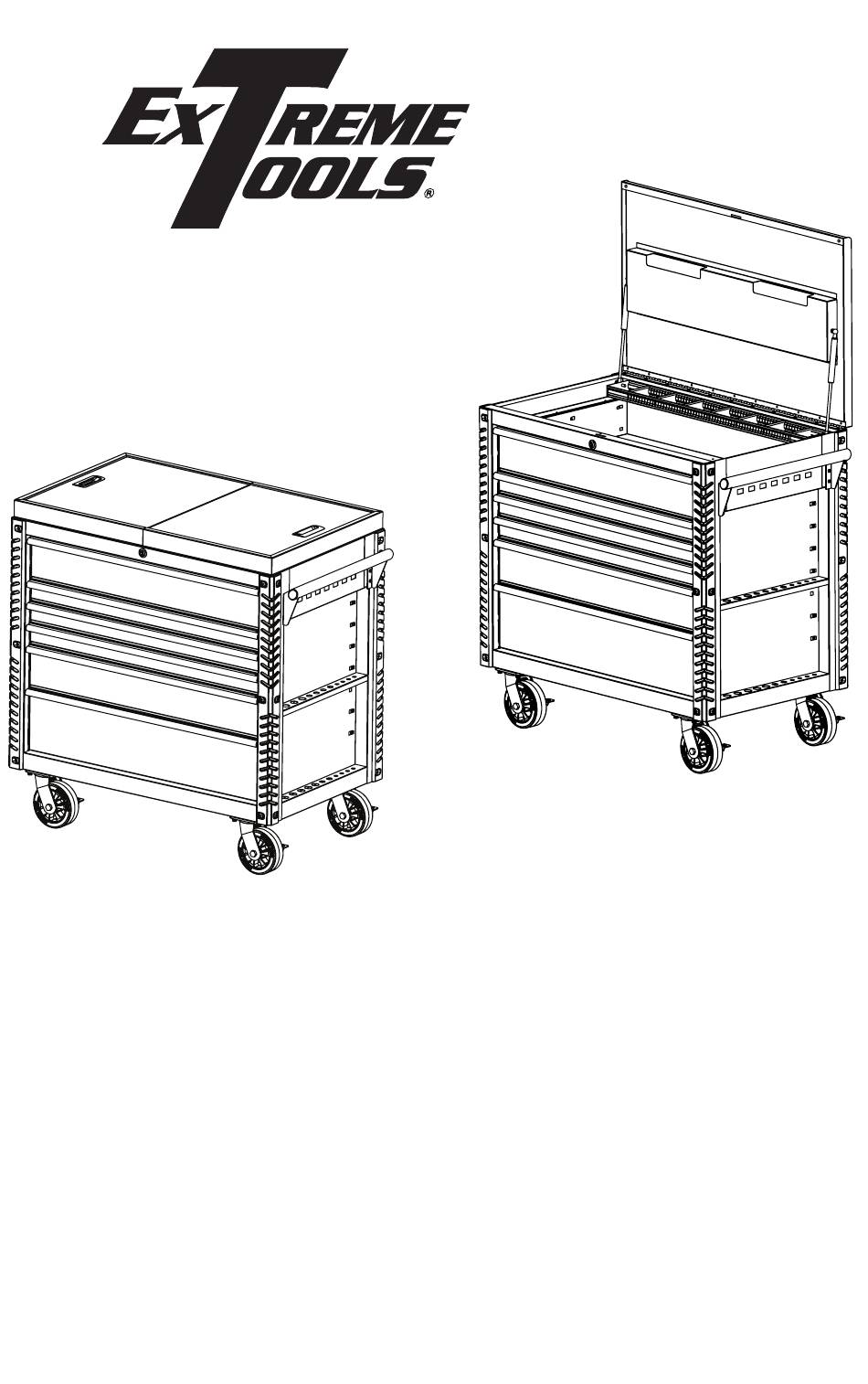

  • Page 1 41 inch Painted Steel Tool Cart Model: EX4106TC 41” 6 Drawer Flip Top Tool Cart with Bumpers Model: EX4106TCS 41” 6 Drawer Sliding Top Tool Cart with Bumpers Extreme Tools, Inc. 740 Frontenac Road Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.net © 2019...
  • Page 2 Tool Cart with Flip Top Parts List EX4106TC Optional Caster Locking Bracket...
  • Page 3 Tool Cart with Flip Top Parts List EX4106TC ITEM NO. PART NUMBER DESCRIPTION QTY. EX4125TC-00 BODY WELDMENT SW-150LB-2087B (OL) OUT. SLIDE (150#) Z-DL4125TC DRAWER LINER Z-CA6SB(CR) 6 X 2 CHROME CASTER (S/B) Z-PR.188 3/16" SS POP RIVET Z-SCM6-12MM M6-1.0X12 SOCKET HEAD SCREW EX4125TC-40R LID ASSY - TC GAS STRUT (350m-...
  • Page 4 Tool Cart with Sliding Top Parts List EX4106TCS Optional Caster Locking Bracket...
  • Page 5 Tool Cart with Flip Top Parts List EX4106TC ITEM NO PART NUMBER DESCRIPTION EX4125TX-00 (ST) BODY WELDMENT SW-100LB-2087B SET 100LBS., 20.87'' BB SLIDE (SET) EX4125TC-38STA SLIDING TRAY ASSEMBLY-RH Z-HNDL4125TC SS TUBULAR HANDLE-4106TC EX4125TC-44 LOCK COVER Z-M4-6MS M4-0.7 X 6MM SCREW 304005 LOCK-KEYS - SEE KEY CODE ON LOCK DR1-4125TC...

  • Page 6: Handle Installation

    ASSEMBLY Handle Installation NOTE: Install the handle first to make it easier to move the tool cabinet. Position the handle over the holes in the cabinet and attach with the provided (4) M6 Socket Head Screws. Tighten securely. Caster Installation NOTE: Lock the lid / sliding top and drawers BEFORE proceeding! Tool Cart is heavy.
  • Page 7 Installing OPTIONAL Caster Locking Bracket To convert two of the casters from swivel to fixed, the OPTIONAL Caster Locking Bracket must be installed. 1. To install, first locate the (2) casters that are on the Handle opposite side of the cart from the side handle.
  • Page 8 3. Engage the brakes on all (4) casters. Locate the casters on the opposite side from the side handle. Loosen the (2) bolts & washers closest to the outer edge of the cart. DO NOT REMOVE BOLTS! ONLY LOOSEN THE BOLTS! Loosen (2) outer bolts DO NOT...

  • Page 9: Operating Procedure

    OPERATING PROCEDURE Drawer Removal Pull drawer out so that it is almost fully extended. Push up on the black lever on one drawer slide and at the same time push down on the lever on the other side. With the levers in these positions, pull the drawer out until it releases from the drawer slides.
  • Page 10 SAFETY WARNING Do not attempt to lift the cabinet by its side handle using chains, ropes or lifting device. Side handle may fail resulting in personal injury or damage to the product! Use a forklift or similar lifting device with forks placed under the bottom of the tool box to move if tool box cannot be moved by two people.
