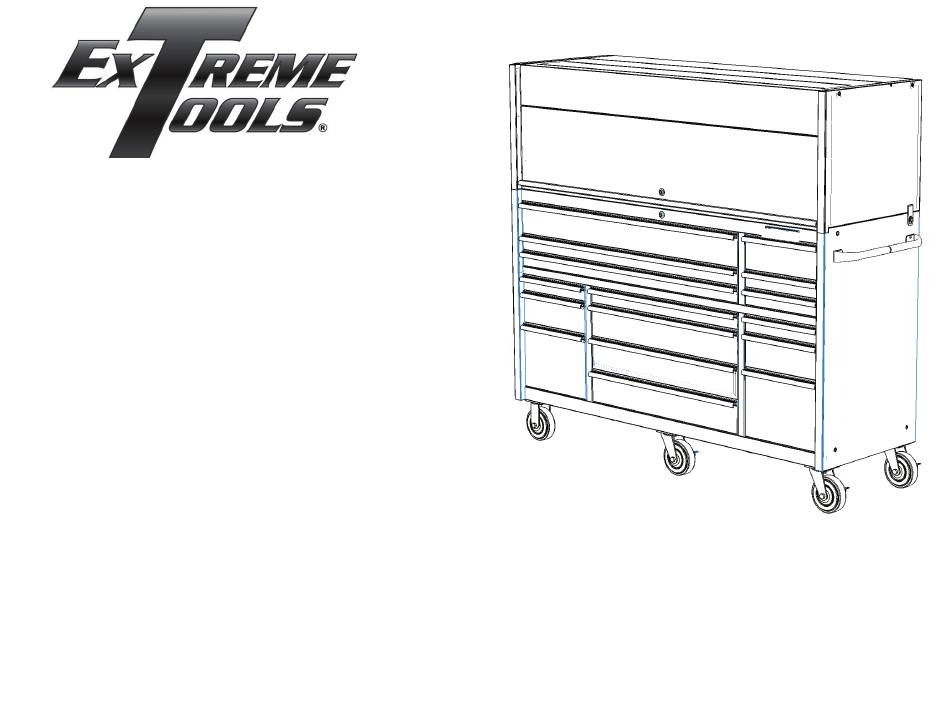

- Page 1 Owner’s Manual Professional Steel Hutches Models: RX723001HC 72”W x 30”D RX553001HC 55”W x 30”D 72 inch Steel Top Hutch shown on RX723016RC Extreme Tools, Inc. 740 Frontenac Rd. Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.net sales@extremetools.net...
- Page 2 RX723001HC RX553001HC Parts List Parts List ITEM NO PART NUMBER DESCRIPTION ITEM NO PART NUMBER DESCRIPTION 5525HC-01 TOP BACK PANEL 7225HC-01 TOP BACK PANEL 7230HC-02 SIDE PANEL ASSY-LH 7230HC-02 SIDE PANEL ASSY-LH 7230HC-05 SIDE PANEL ASSY-RH 7230HC-05 SIDE PANEL ASSY-RH...
- Page 3 Step 1: Attach Splicer Posts to Side Panels Step 2: Install Side Panels on Roller Cabinet a. Slide Splicer Post Assembly (#9) into bottom opening of the a. Remove plastic end caps from the top of the trim located at the left-hand Side Panel Assembly(#2).
- Page 4 Step 3: Secure Side Panels Step 4: Install Adjustable Shelf a. Loosely install one Hold-Down Bracket (#14) on each side a. Determine the desired height for the Adjustable Shelf. Pre-thread using one flat washer (#16) and one M8 bolt (#15) for each (2) screws (#11) about halfway in on left-hand and right-hand side.
- Page 5 Step 5: Install Back Panel Step 6: Secure Back Panel a. Pull MDF board/Stainless Steel Top forward approximately 1/8” c. Use (6) M5 screws (#11) on each side to fasten the back panel from Back Raised Edge (aka: Fence Rail.) to side panel assemblies.
- Page 6 Step 8: Attach Gas Struts to Lid Step 7: Attach Spacer Panel a. Lay the lid down on packaging material so that the front of the lid a. After the back panel has been installed, attach the spacer panel to the top section of the back panel.
- Page 7 Step 9: Install the Lid onto the body of the Hutch Step 10: Secure Lid to Body of Hutch LID is HEAVY! a. Use the Allen wrench (supplied with the parts) to drive the pre- threaded M5-16mm Sock Head Screw (#4) into the round LID INSTALLATION REQUIRES ASSISTANCE to LIFT opening on the side of the lid.
- Page 8 Step 12: Final Details Step 11: Secure Gas Strut to Side of Hutch a. Prop open the lid so that it cannot fall. a. If you did not install the Hold Down Bracket in Step 3, then do so now. b.
