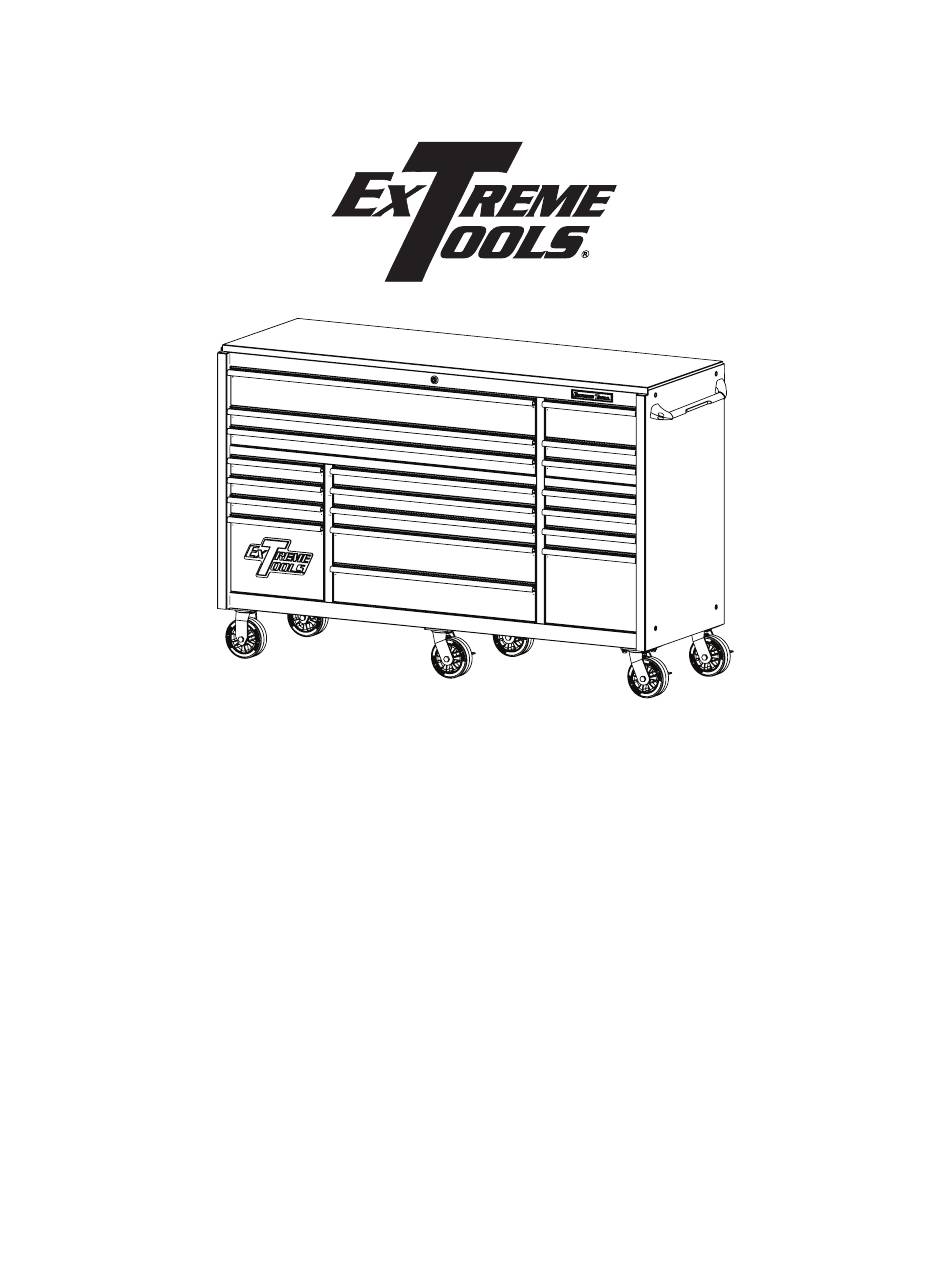

  • Page 1 72 inch Painted Steel Roller Cabinet Model: RX723019RC-250 250 lbs. Slides Extreme Tools, Inc. 740 Frontenac Road Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.net © 2018...
  • Page 2 Roller Cabinet Parts List RX723019RC-250 250 lbs. Slides Replacement keys may be ordered using the code that appears on the face of the lock. To order replacement parts, have the part number, tool box color and quantity ready. If under warranty, the serial number is REQUIRED to get replacement parts.
  • Page 3 PARTS LIST - RX723019RC-250 ITEM PART NUMBER DESCRIPTION QTY. RX7230-00 BODY WELDMENT RXQDR-3A-250 DRAWER 3 ASSY RXQDR-4A-250 DRAWER 4 ASSY RXQDR-1A-250 DRAWER 1 ASSY RXQDR-2A-250 DRAWER 2 ASSY RXQDR-5A-250 DRAWER 5 ASSY RXQDR-6A-250 DRAWER 6 ASSY RXQDR-7A-250 DRAWER 7 ASSY...
  • Page 4 ASSEMBLY Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Position the handle over the holes in the cabinet and attach with the provided (4) M6-1.0 x 30 socket head screws. Tighten securely. OPERATING PROCEDURE Drawer Removal Pull drawer out so that it is almost...
  • Page 5 MAINTENANCE Lubricate the casters once a year with high quality ball bearing grease. Lubricate the slides twice a year with high quality, petroleum-based lubricant. This may be required more often If operating the tool box in colder climates. Use mild detergent and water to clean drawer fronts, drawer trim and other surfaces.
  • Page 6 SAFETY WARNING Do not attempt to lift the cabinet by its side handle using chains, ropes or lifting device. Side handle may fail resulting in personal injury or damage to the product! Use a forklift or similar lifting device with forks placed under the bottom of the tool box to move if tool box cannot be moved by two people.
