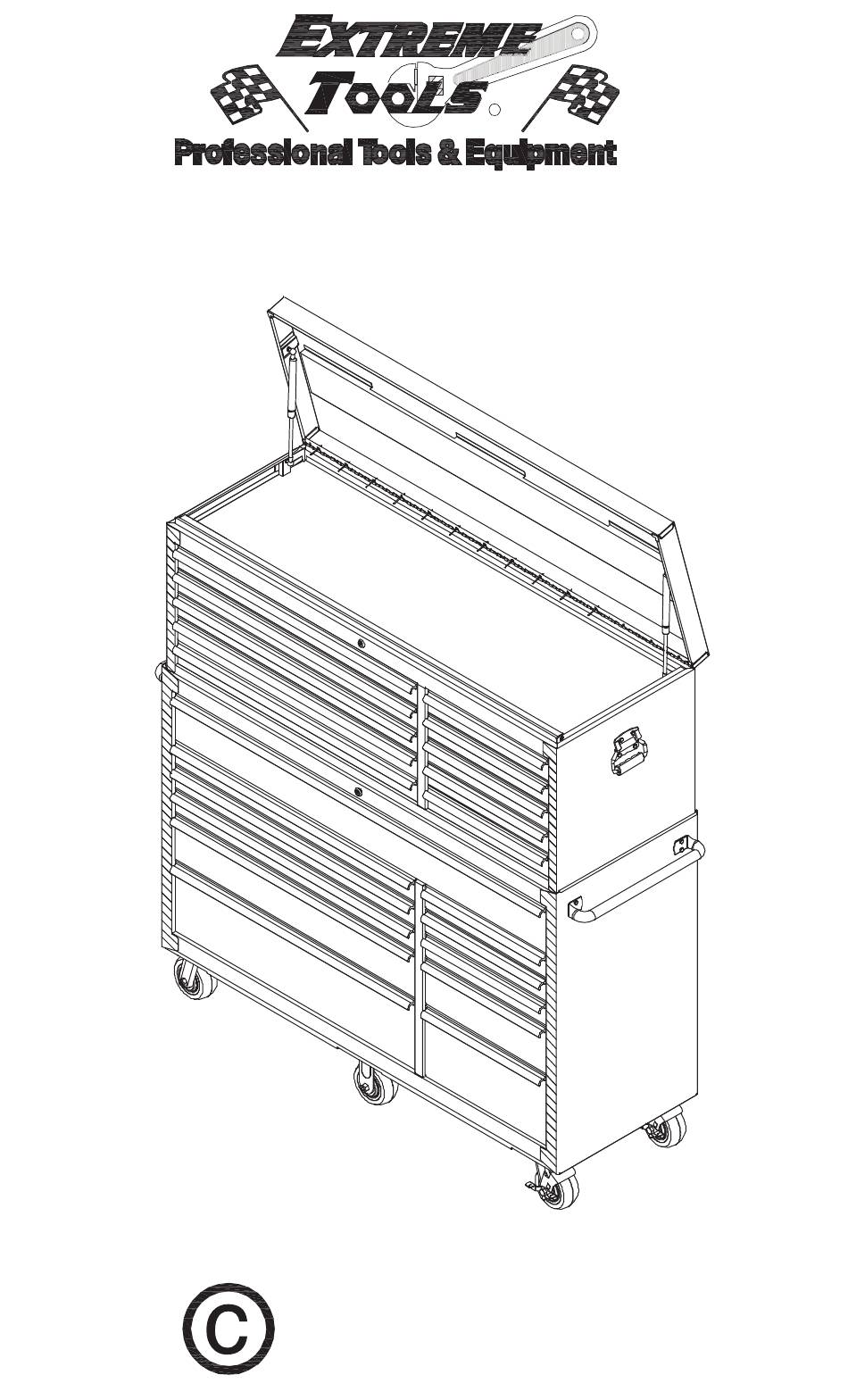

- Page 1 Painted Steel Chest and Cabinet Manual Chest EX5610CHBK EX5610CHBL EX5610CHRD EX5610CHYL Cabinet EX5611RCBK EX5611RCBL EX5611RCRD EX5611RCYL Extreme Tools Inc. 740 Frontenac Road Naperville, IL 60563 630-369-9303...
- Page 2 Chest Parts List Ref # Description Part # Connector 200837 The keys are taped M6 x 12 Hex Bolt 321051 to the top storage Chest Handle 306001 area of the chest. Slide Set 300027–300028 Replacement keys may Drawer 101398 be ordered using the code Drawer Pull 301053 that appears on the face...
-
Page 3: Cabinet Parts List
Cabinet Parts List Ref # Description Part # Drawer Liner 550019 The keys are taped to the Drawer 101402 top of the caster carton, Drawer Pull 301056 which is placed in the left Trim (left) 315006 bottom drawer of the cabinet. Drawer 101398 Replacement keys may... - Page 4 Assembly Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Simply position the handle over the holes in the cabinet and attach with the provided M6 x 12 hex bolts. Tighten securely. Repeat for the other cabinet handle on the other side of the cabinet.
-
Page 5: Operation
Operation Drawer Removal Push up (one side) Pull the drawer out so that it’s almost fully extended. Push up on the black release lever on one side, while pulling down on the black release lever on the other side. While holding the levers in the positions as instructed above, Push down (other side) pull the drawer outward until it is... - Page 6 Safety WARNING Do not attempt to lift the chest by its side handles using chains, ropes or lifting devices, if two people cannot lift the chest. Use a forklift placed under the bottom of the chest if this situation occurs. The side handle may fail, which may cause personal injury or damage to the product.
