Extreme Tools RX722519RC-X Assembly Instructions Manual

Extreme Tools RX722519RC-X Assembly Instructions Manual

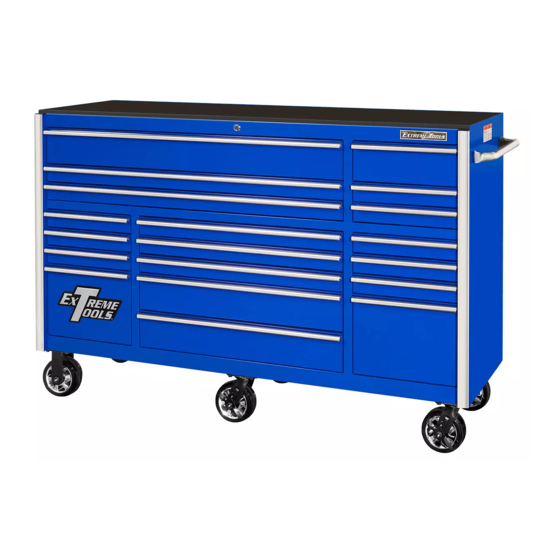

19 drawer powder-coated steel roller cabinet

Advertisement

Quick Links

72 in. W x 25 in. D
19 Drawer Powder-Coated Steel
Roller Cabinet
Model:
RX722519RC - X
150 lbs. Slides
Extreme Tools, Inc.
740 Frontenac Road
Naperville, Illinois 60563
630.369.9303
www.ExtremeTools.com
For All Customer Service inquiries please contact:
Help@extremetools.net
Include in email:
a. Name
b. Ship To Address
c. Model Number
d. Serial Number
e. Phone Number
f. Reason for inquiry
© 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the RX722519RC-X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extreme Tools RX722519RC-X

  • Page 1 72 in. W x 25 in. D 19 Drawer Powder-Coated Steel Roller Cabinet Model: RX722519RC - X 150 lbs. Slides Extreme Tools, Inc. 740 Frontenac Road Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.com For All Customer Service inquiries please contact: Help@extremetools.net Include in email: a.
  • Page 2 Roller Cabinet Parts List RX722519RC - X 150 lbs. Slides Replacement keys may be ordered using the code that appears on the face of the lock. To order replacement parts, have the part number, tool box color and quantity ready. If under warranty, the serial number is REQUIRED to get replacement parts.
  • Page 3 ZHDRX25-BK RX side handle, for 25" deep unit, 19" space, Black Z-LGL Extreme Tools Logo Z-LGS Extreme Tools name plate ZTRRX979-RD RX/GW 72/55 cabinet ver�cal trim, 979mm, AL, Le�=right, Red ZTRRX979-BU RX/GW 72/55 cabinet ver�cal trim, 979mm, AL, Le�=right, Blue ZTRRX979-BK RX/GW 72/55 cabinet ver�cal trim, 979mm, AL, Le�=right, Black...
  • Page 4 PARTS LIST - RX722519RC - X (continued) Item # Part number Descrip�ons Qty. ZMDF1815X600X15 Laminated MDF top for RX7225RC, 15 mm, black ZSST1815X600X25 SS 304 top for RX7225RC, 25 mm, 1 mm material (Upgrade Op�on) ZDPRX1305-RD RX drawer pull assy for drawer #1 & 2, 1305 mm long, Red ZDPRX1305-BU RX drawer pull assy for drawer #1 &...
  • Page 5: Operating Procedure

    ASSEMBLY Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Position the handle over the holes in the cabinet and attach with the provided (4) M6-1.0 x 15 SH screws. Tighten securely. OPERATING PROCEDURE Drawer Removal Pull drawer out so that it is almost fully extended.
  • Page 6 SAFETY WARNING Do not attempt to lift the cabinet by its side handle using chains, ropes or lifting device. Side handle may fail resulting in personal injury or damage to the product! Use a forklift or similar lifting device with forks placed under the bottom of the tool box to move if tool box cannot be moved by two people. Close the drawers and lock the tool box before moving this product! If drawers are not locked they could open and make the product unstable and tip which may cause personal injury or damage to the product.
