PROFESSIONAL STEEL CABINET MANUAL

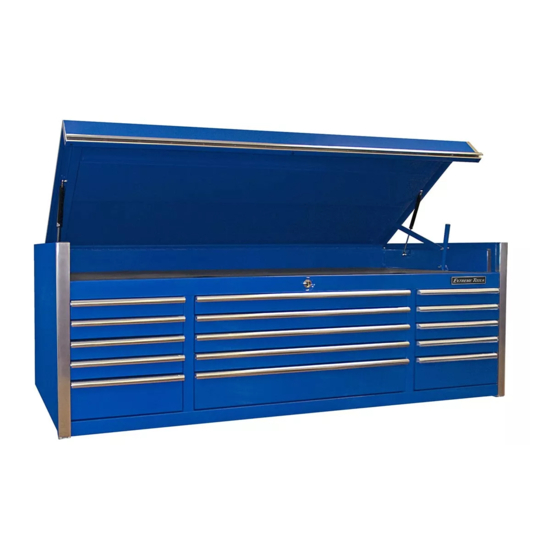

EX7215CH TOP CHEST
CHEST
Extreme Tools , Inc.
®
740 Frontenac Road
Naperville, IL 60563
Office: 630 369-9303
Fax: 815 254-1930
EX7215CH TOP CHEST
ASSEMBLY INSTRUCTIONS
TO REMOVE AND REPLACE DRAWERS
TO REMOVE DRAWERS:
• Pull drawer out so it's almost fully extended
• Push UP right hand black release lever, at the same
time push DOWN left hand black release lever
• While holding the levers in the positions as
instructed from above, pull the drawer outward
until it is released from the drawer side.
PUSH UP (RIGHT HAND SIDE)
PUSH DOWN (LEFT HAND SIDE)
TO REPLACE DRAWERS
Extend the drawer slides from the tool cabinet.
Insert the brackets on each side of the
drawer into slots in the cabinet slides,
being careful that they are properly
positioned.
Once properly inserted, completely
close the drawer to set the slides in
their proper positions.
TO CLOSE THE LID
Pull the handle and easily close
the lid.
WARNING: Watch your hands
when closing lid
