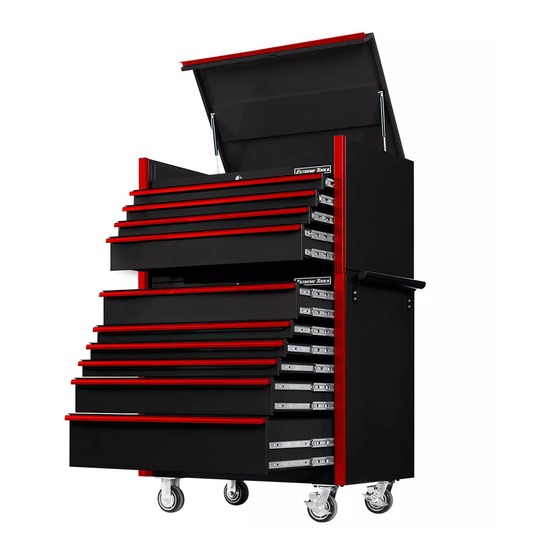

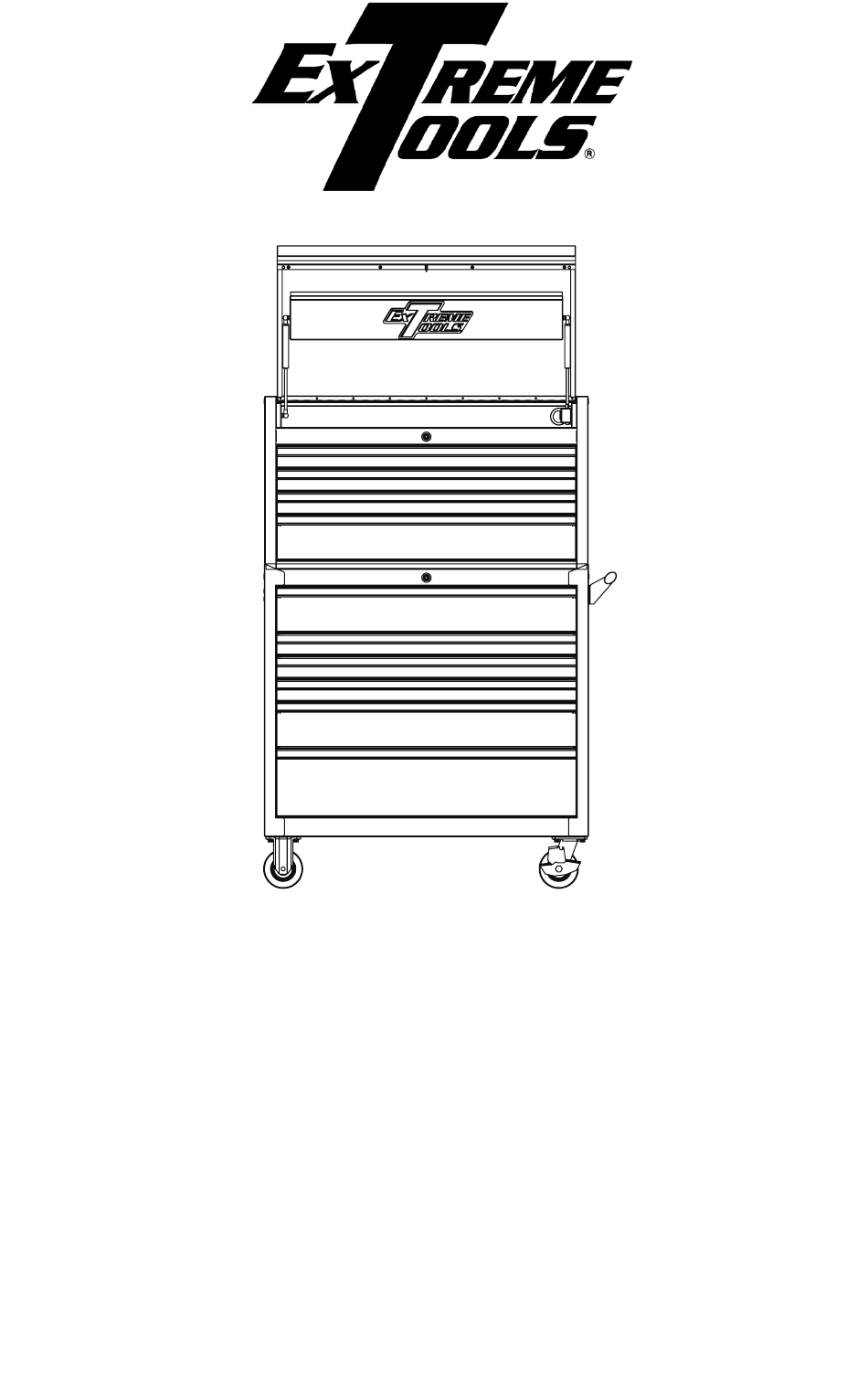

- Page 1 41 inch 4 Drawer Powder Coated Steel Top Chest & Roller Cabinet Combo Model: DX4110CR / DX412510CR Extreme Tools, Inc. 740 Frontenac Road Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.net © 2022...
- Page 2 Top Chest Parts List DX412504CH / DX4104CH...
- Page 3 DX412504CH Drawer liner kits, PVC, Black 1 set Z-DLDX4125-L Large Drawer Liner for DX4125-Individual Liners Z-TRDX4125CH(+Color) DX412504CH V-Trim (per pcs) NS Z-LGS NAME PLATE for Extreme Tools small size Z-BWDX41CH DX4125 CHEST BODY WELDMENT Z-LADX41CH DX4125 LID ASSEMBLY Z-PRM6x18 M6x18 SS POP RIVET Z-ST4125CH Strut for lid support on the RX412508CH, DX412504CH (11KG).(per pair)
- Page 4 Roller Cabinet Parts List DX412506RC / DX4106RC Z-HNDL483 Z-SCM6-12MM Side Handle and Caster Assembly Items Z-CA5SB Z-BT10M-25...
- Page 5 DX screws and nuts for drawer pull Z-CAMDX41RC LOCK CAM-EX41RC Z-LGS Name plate for Extreme Tools small size Lock & Keys Part #'s - SEE FACE of LOCK or KEY for Code 1 set Z-LK-EX01 RX series lock and key set, EX01...
-
Page 6: Caster Installation
ASSEMBLY Caster Installation NOTE: Lock the lid / sliding top and drawers BEFORE proceeding! Tool Cart is heavy. Installation requires assistance of another adult to complete this step. With assistance, carefully lay the cabinet on its back onto a soft surface such as a mat to protect the cabinet finish. - Page 7 ASSEMBLY Chest Pre-drilled hole Pre-drilled hole Roller Cabinet Securing Top Chest and Roller Cabinet Place the chest on the cabinet. Open the top drawer and locate the two holes under the top surface of the roller cabinet. Insert M6 x 12mm hex bolts through the hole of the roller cabinet and into the hole on the bottom side of the top chest.
-
Page 8: Handle Installation
ASSEMBLY Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Position the handle over the holes in the cabinet and attach with the provided (4) M6 socket head screws. Tighten securely. -
Page 9: Operating Procedure
OPERATING PROCEDURE Drawer Removal Pull drawer out so that it is almost fully extended. Push up on the black lever on one drawer slide and at the same time push down on the lever on the other side. With the levers in these positions, pull the drawer out until it releases from the drawer slides. - Page 10 SAFETY WARNING Do not attempt to lift the cabinet by its side handle using chains, ropes or lifting device. Side handle may fail resulting in personal injury or damage to the product! Use a forklift or similar lifting device with forks placed under the bottom of the tool box to move if tool box cannot be moved by two people.
