Painted Steel Chest and Cabinet Manual

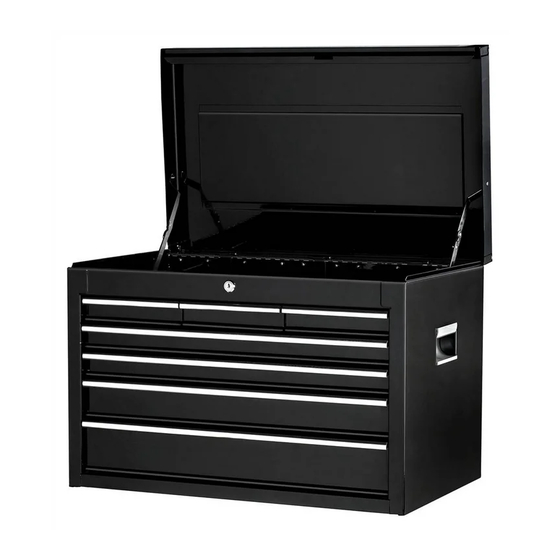

Chest
EX2607CHBK
EX2607CHRD
Cabinet
EX2605RCBK
EX2605RCRD
Extreme Tools Inc.
740 Frontenac Road
Naperville, IL 60563
630-369-9303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX2607CHBK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extreme Tools EX2607CHBK

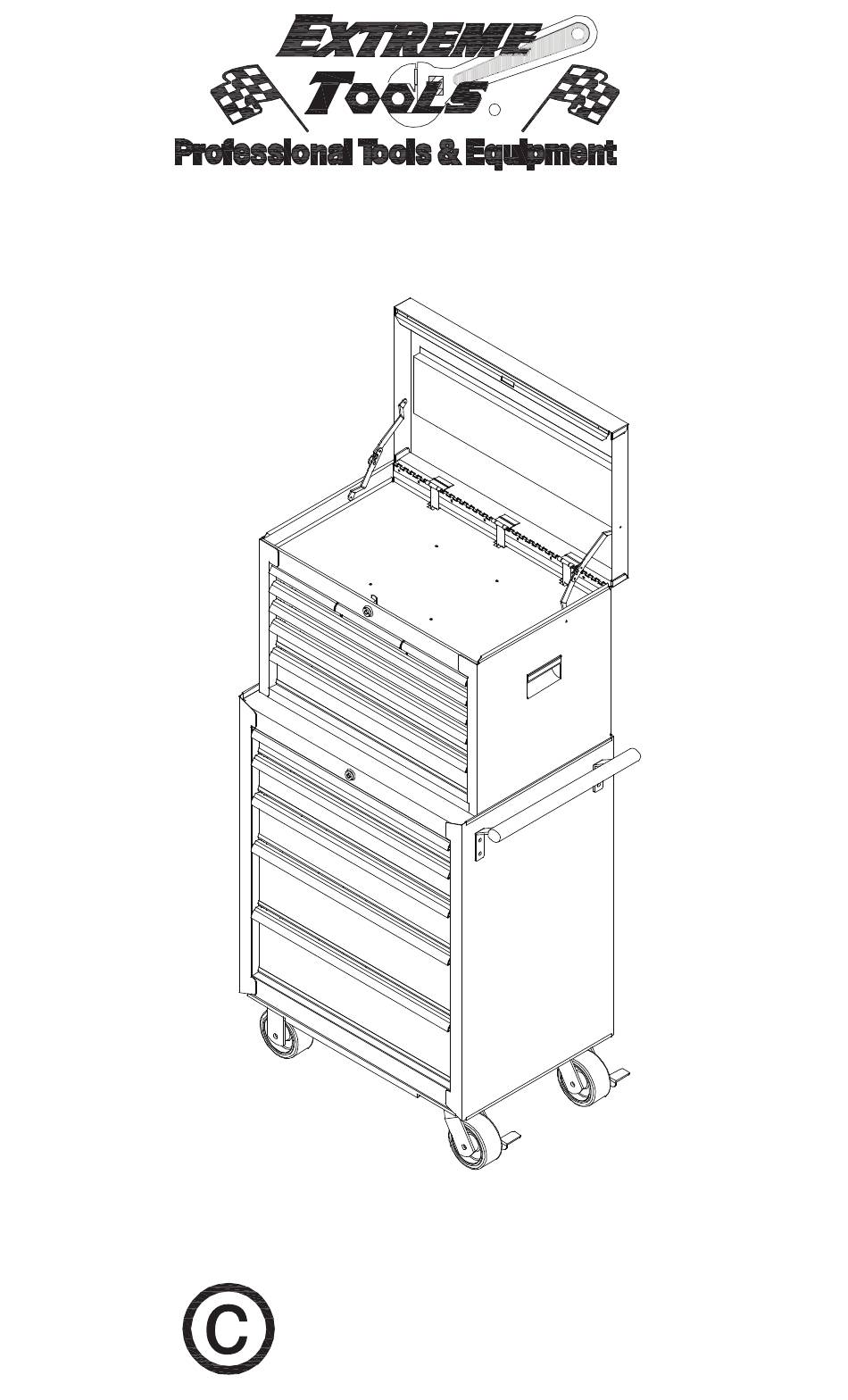

  • Page 1 Painted Steel Chest and Cabinet Manual Chest EX2607CHBK EX2607CHRD Cabinet EX2605RCBK EX2605RCRD Extreme Tools Inc. 740 Frontenac Road Naperville, IL 60563 630-369-9303...
  • Page 2 Chest Parts List Ref # Description Part # Connectors 200837-2 The keys are taped Chest Handles 301040-2 to the top storage area of the chest. Drawer Pulls 301642-2 Slide Sets 300014–300015-2 Replacement keys may Drawer 109923-2 be ordered using the code that appears on the face Drawer Pulls 301641-2...
  • Page 3 Cabinet Parts List Ref # Description Part # M6x16 Hex Bolts 321023-2 The keys are taped to the Cabinet Handle 109935-2 top of the caster carton, which is placed in the bottom Swivel Casters 302000-2 drawer of the cabinet. Rigid Casters 302001-2 M8x20 Hex Bolts 321024-2...
  • Page 4 Assembly Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Simply position the handle over the holes in the cabinet and attach with the provided M6x16 hex bolts. Tighten securely. Caster Installation NOTE: You may require the assistance of another person to complete this step.
  • Page 5 Operation Drawer Removal Push up (one side) Pull the drawer out so that it’s almost fully extended. Push up on the black release lever on one side, while pulling down on the black release lever on the other side. While holding the levers in the positions as instructed above, Push down (other side) pull the drawer outward until it is...
  • Page 6 Safety WARNING Do not attempt to lift the chest by its side handles using chains, ropes or lifting devices, if two people cannot lift the chest. Use a forklift placed under the bottom of the chest if this situation occurs. The side handle may fail, which may cause personal injury or damage to the product.
