VENETA 65101-21734-E How To Install

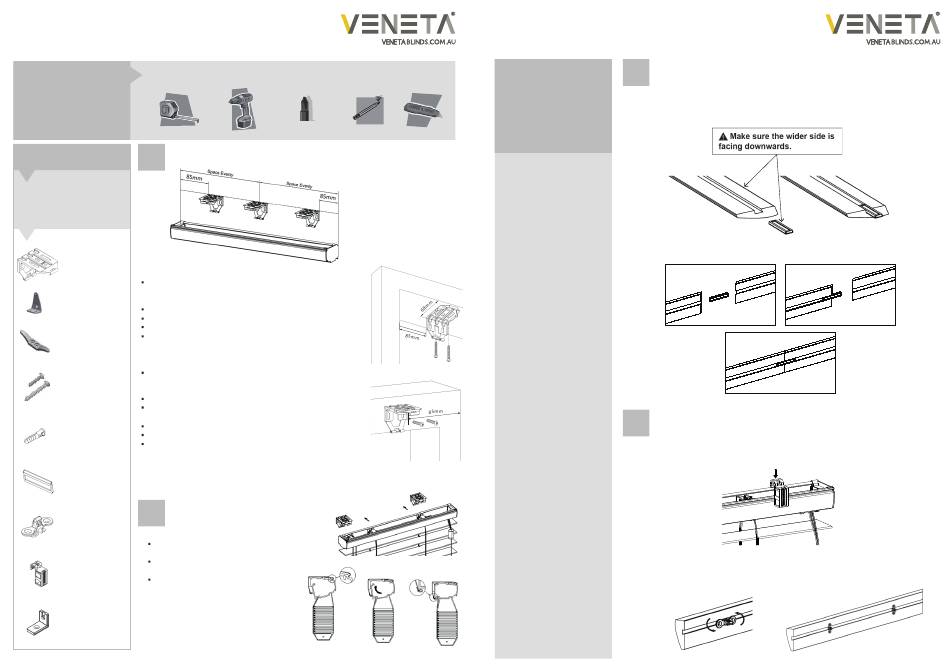

How to install your
Timber Venetian Blind
#65101-21734-E
measuring

Required Tools

tape
1

Included Hardware

Installation Brackets

The hardware can be found in
the end of every box.
Installation
Bracket
Installing Inside The Window Frame...
At the top of the window frame measure 85mm in from each side
and measure 68mm back from the front of the window opening;
Hold Down
this is the edge of the back of the bracket.
Bracket
Place bracket in position and mark where the screws will go.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix brackets into position using 2 long screws.
If more brackets are supplied, space them evenly between the first
Child Safety
two brackets.
Cleat
Installing Outside The Window Frame...
Measure 85mm in from the top left and top right of where the blind
Medium & Long will be positioned (normally flush with outside of architrave)
and mark the edge of where the brackets will go.
Screws for Wood
Place the brackets in position and mark where the screws will go.
We recommend using a spirit level to align brackets if not installing
on the architrave.
Wall Plugs for Brick
We recommend drilling pilot holes for the screws using a 2mm bit.
or Cement using
Fix brackets into position using 2 long screws.
a 6mm Bit
If more brackets are supplied, space them evenly between the first
(if requested)
two brackets.
Valance Connector
(Optional)
2

Install Blind

Clip Plug
(Optional)
Position the top front of the blind under the top front
lip of the brackets.
Push the blind up at the back and click into position
Clip Receptor
as per diagram.
(Optional)
Ensure the blind has clicked firmly into place.
Valance Return
Connector
(Optional)
Difficulty: ★☆☆☆☆
drill with phillips bit or pencil
2mm bit screwdriver
①
②
How to install your
Timber Venetian Blind
#65101-21734-E
knife
Need HELP?
Customer Service
1800 836 382
"the best compliment
you can give
is a referral"
③
1
3

Install Valance Connector (Optional)

Valance Connector is only supplied for connecting spliced valances.
Insert the valance connector into the slot on the back of the valance as below drawing:
The valance is connected as below drawing:
4
Attach the Valance (Optional)
Hook the adjustable valance clip receptors onto the headrail and space them evenly.
Make sure receptors are not in an obstructive position with the drum support inside the headrail.
Attach the adjustable valance clip plug into the channel on the backside of the valance.
Refer to the receptor position on the headrail to decide where to position on the valance.
