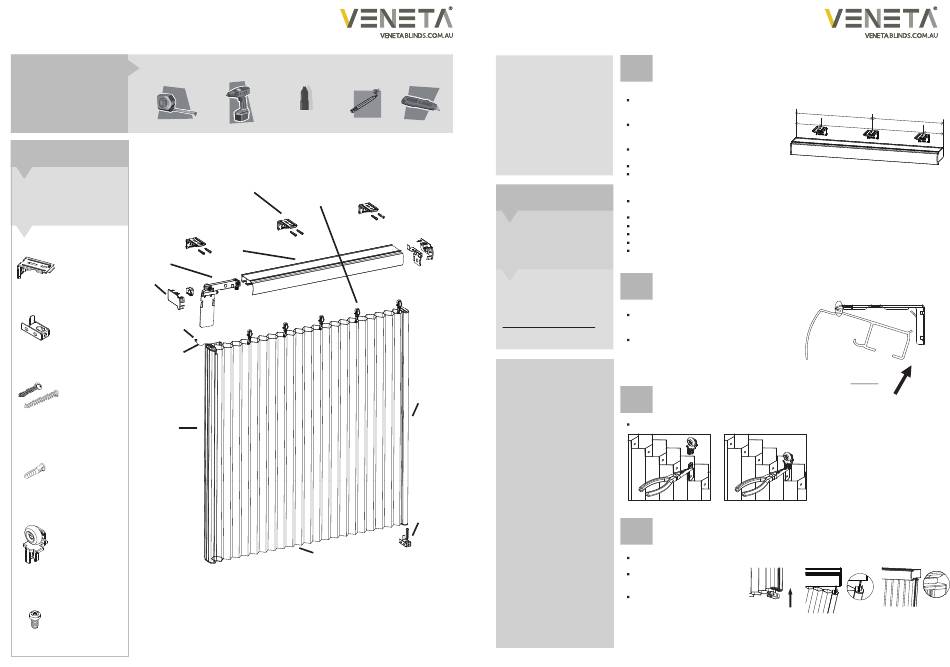

VENETA 65101-10242-G Installation Instructions

How to install your
Vertical Honeycomb Blind
#65101-10242-G
measuring
Required Tools
tape
Included Hardware
The hardware can be found in
the end of every box.
Support Shaft
Installation
Bracket
End Cap
Bead
Bottom Bracket
Cord
Medium & Long
Screws for Wood
Movable
Vertical Rail
Wall Plugs for
Brick or Cement
using a 6mm bit
(if requested)
Clips & Rollers
Bolt
Difficulty:
drill with phillips bit or pencil
2mm bit screwdriver
Installation Bracket
Clips & Rollers
Head Rail
Fabric
How to install your
Vertical Honeycomb Blind
★★ ★ ★ ☆
knife
Need HELP?
Call our
Customer Service team
for assistance
1300 836 382
Feedback?
We would love to know how you
went with your installation...
Please write a review on our
website at...
www.venetablinds.com.au
Fixed
Vertical Rail
Bottom
Bracket
1
1
Installation Brackets
Installing inside the window frame...
At top of window or door frame, measure 80mm
in from each end and mark with a pencil. This is
the edge of the outer brackets.
80mm
Place brackets in position flush with the front
of the window opening and mark where the
screws will go.
We recommend drilling pilot holes for the
screws using a 2mm bit.
Fix the brackets into position using 2 long screws for each bracket.
If more brackets are supplied, space them evenly between the first two brackets.
Installing outside the window frame...
Measure 80mm in from top left and top right of where blind will sit (normally edge of
architrave) and mark with a pencil. This is the edge of the outer brackets.
Position the top of bracket 3mm above the architrave and mark where the screws will go.
We recommend using a spirit level to align brackets if not installing on the architrave.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix the brackets into position using 2 long screws for each bracket.
If more brackets are supplied, space them evenly between the first two brackets.
2
Head Rail
Position the top lip of the headrail under
the top front lip of the brackets as per
Head rail
diagram to the right.
Push the headrail up at the back to click
into position as per diagram to the right.
3
Clips & Rollers
Attach clips to rollers (clips are attached to top of fabric).
4
Fixed Vertical Rail
Note: Do not untie the cords at
the top of the vertical rail.
Attach the floor bracket to the
end cap of unmovable vertical
rail, shown in right drawing.
Push the fixed vertical rail from
down to up as right drawing.
Attach fixed vertical rail by
pushing the fixing hanger into the
gap of head rail as drawing.
Space Evenly
80mm
Installation bracket
Side view
2
