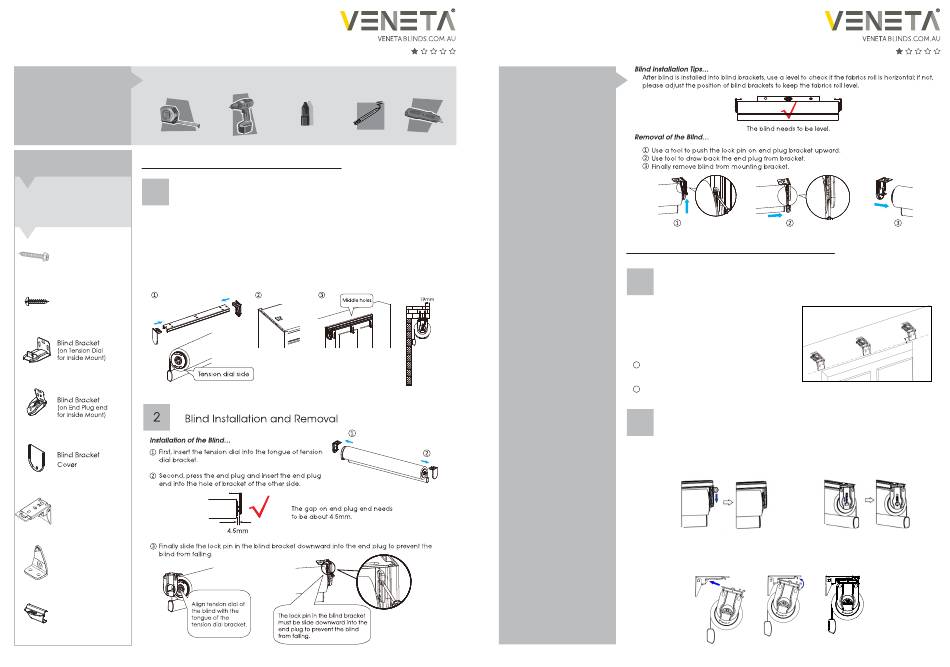

VENETA 65101-40160-D How To Install

How to install your
Cordless
(Roller Blinds with Raceway)
#65101-40160-D
measuring
Required Tools
tape
Installing inside the window frame
Included Hardware
1
Blind Bracket Installation
The hardware can be found in
the small hardware box included
with your blind.
① Attach the blind brackets and extensions into the two ends of the raceway. Please decide
the tension dial is at the left or right side of the blind first, the side with the tension dial
should use the tension dial end bracket.
Make sure the extension bolt locks into the raceway's dedicated hole.
②
32mm
③ First fit the blind bracket cover over the blind bracket. Install the raceway into the window
Hexagon Screw
opening. We recommend securing the screws into the middle holes of the raceway first. This
(for Mounting Bracket)
would allow you to adjust the raceway left or right if required. Once the correct position has
been located, secure the screws for the holes.
Take care that the distance between the 1st screw and the window edge is at least 19mm.
19mm Round Head
Screw
Mounting Brackets
(for Outside Mount)
Traditional Hold
Down Bracket
(for Inside Mount)
Handle
Difficulty:
drill with phillips bit or pencil
2mm bit screwdriver
How to install your
Cordless
(Roller Blinds with Raceway)
#65101-40160-D
knife
Installation
continued...
1
Installing outside the window frame
1
Blind Bracket Installation
Measure 75mm in from top left and top right of
①
where the blind will sit, and mark where the
screws will go.
② When installing the mounting bracket, the
distance from the bracket's mounting hole to the
edge of the window frame should be at least
19mm.
3 Make sure all brackets line up with each other
horizontally. Each bracket will require two 32mm
hexagon screws for the installation.
4 If more brackets are supplied, space them
evenly between the first two brackets.
2
Blind Installation and Removal
Before installing the shade into the mounting brackets, please locate the lock pin in the
shade bracket on the end plug side. Slide the pin downward into the end plug to prevent
the shade from falling.
Front view... Side view...
There are two ways to attach the shade to mount brackets....
Insert the back edge of the raceway into the back plastic part of the bracket, and then
A.
turn the raceway upwards so that the front rib of the raceway snaps into the bracket.
Difficulty:
19mm
2
