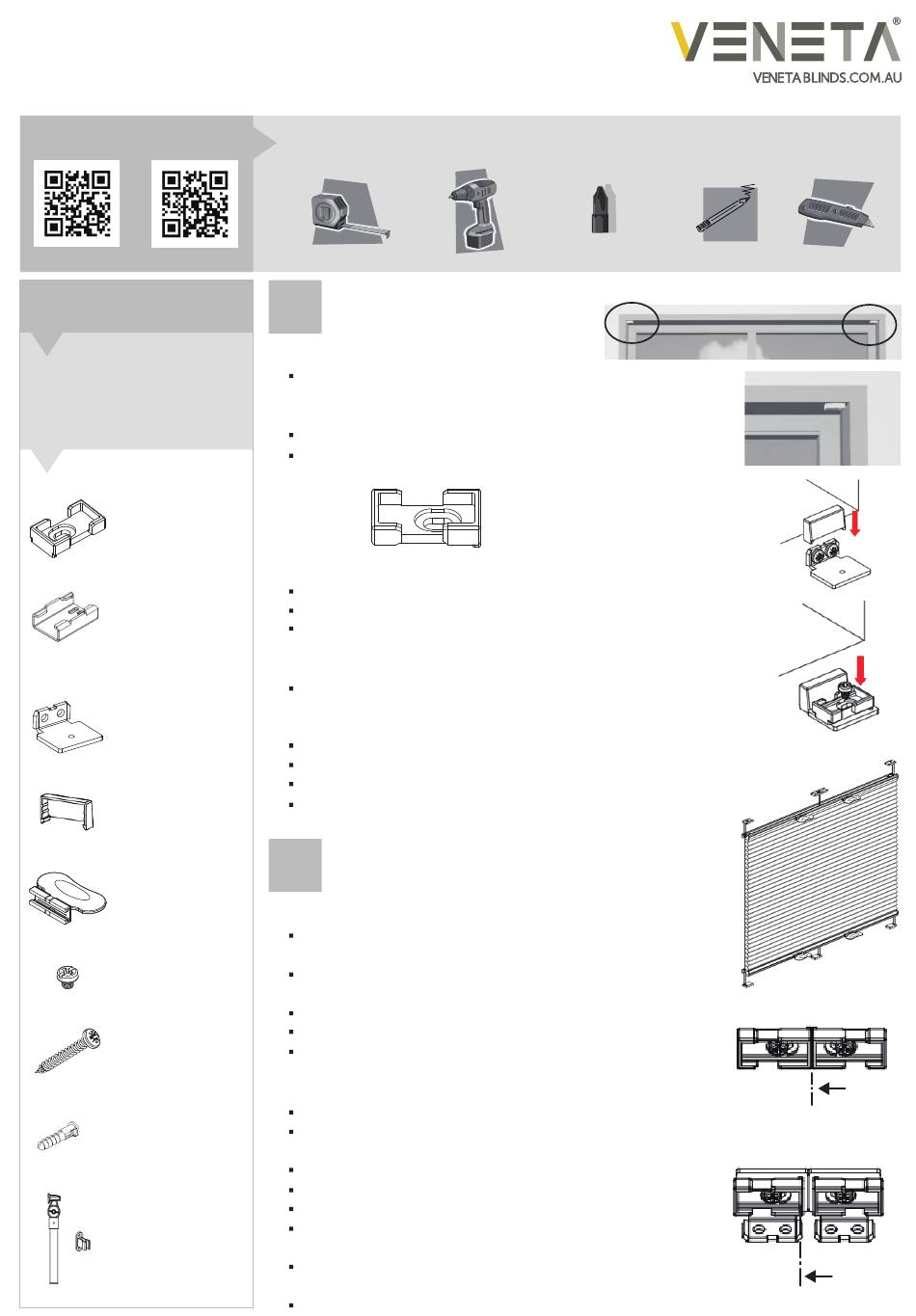

VENETA Smartfit Honeycomb Blind Manual

How to install your
Smartfit Honeycomb Blind
#65101-10235-G
Required Tools
Inside Video Outside Video
Included Hardware
The hardware can be found in
the end of every box.
Shoe Base
(For Headrail and
Bottom Rail)
Shoe Slider
(Attached to blind)
Installation
L Bracket
(Outside Install)
L Bracket Cover
(Outside Install)
Handle
Short Bolt
Long Screws for
Wood
Wall Plugs for Brick
or Cement using
a 6mm bit
(if requested)
Extension Pole
(if requested)
(25mm Cell)
measuring drill with
tape 2mm bit
1
Installation Brackets
Installing inside the window frame...
At top and bottom of window frame measure at least 12mm in from
each end and 13mm back from front of window frame and mark
where the screws will go.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix the Shoe Bases into position using 1 long screw for each Shoe
ensuring the outer edge is to the outside of the window.
Inner Edge
Installing outside the window frame...
We recommend using a spirit level for vertical and horizontal alignment.
Place the blind in position and mark the top corners of the blind.
Measure 4mm down and 5mm in from the top corners and mark the
location of the L bracket outer screws (ensure screws are at least 16mm
from window opening).
The measurement from this screw to the screw on the bottom brackets is
the 'order height' minus 8mm (order height can be found on the outside
of your box). And mark with a pencil.
Place L brackets in position and mark where the other screws will go.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix the L brackets into position using 2 long screws for each bracket.
Fix the Shoe Bases onto the L Brackets using 1 short bolt for each shoe,
ensuring the outer edge is to the outside of the window.
2
Support Brackets
(only for blinds over 1270mm)
Installing inside the window frame...
Mark the centre of the window opening at top and bottom
and mark 13mm back from front of window frame.
Measure 9mm to the left and 9mm to the right of the centre mark,
this is the position of the screws for the centre Shoe Bases.
We recommend drilling pilot holes for the screws using a 2mm bit.
Place Shoe Bases into position ensuring the outer edges meet in the centre.
Fix the Shoe Bases into position using 1 long screw for each Shoe.
Installing outside the window frame...
Mark the centre of the window opening at the top and bottom of the window frame.
Measure 5mm to the left and 10mm to the right of the centre mark, this is the position
of the inner screws for the centre L brackets.
Place L brackets in position and mark where the outer screws will go.
We recommend drilling pilot holes for the screws using a 2mm bit.
Fix the L brackets into position using 2 long screws for each bracket.
Fix the Shoe Bases onto the L brackets using 1 short bolt for each
Shoe ensuring the outer edges of Shoes meet in the centre.
Slide bracket covers over the bracket screws.
Note: 2 shoes provided for top only, as per diagram.
phillips bit or
screwdriver
Outer Edge
Difficulty: ★★ ☆ ☆ ☆
pencil knife
Top centre of blind
centre of
blind
Top centre of blind
centre of
blind width
1
